Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Pv2r3-153 Vane Pump Cartridge Kits

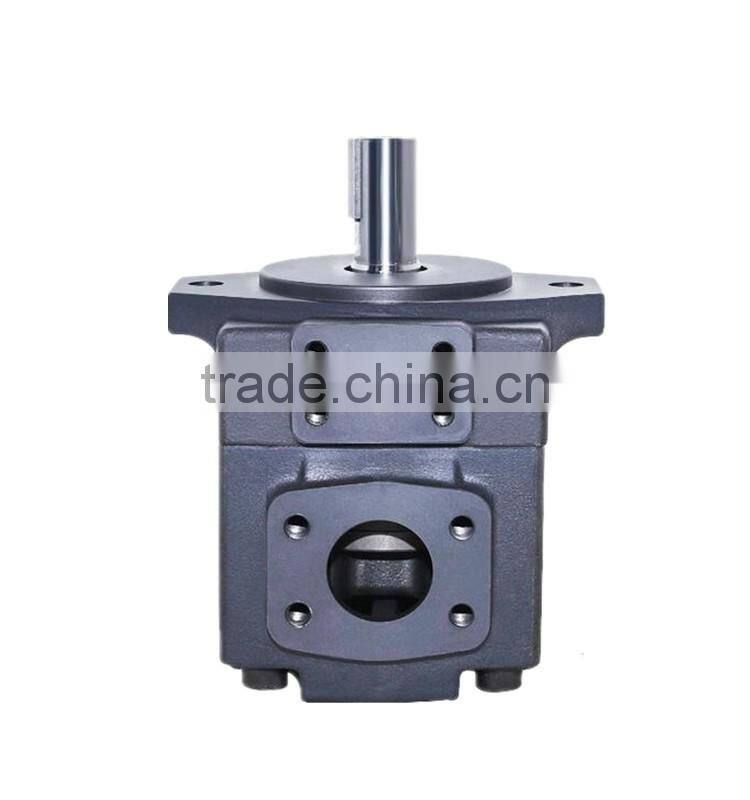

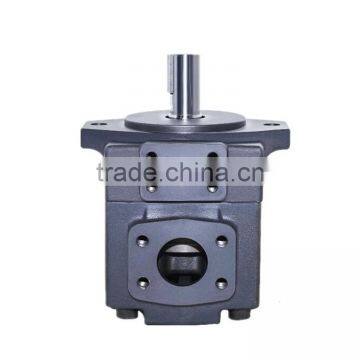

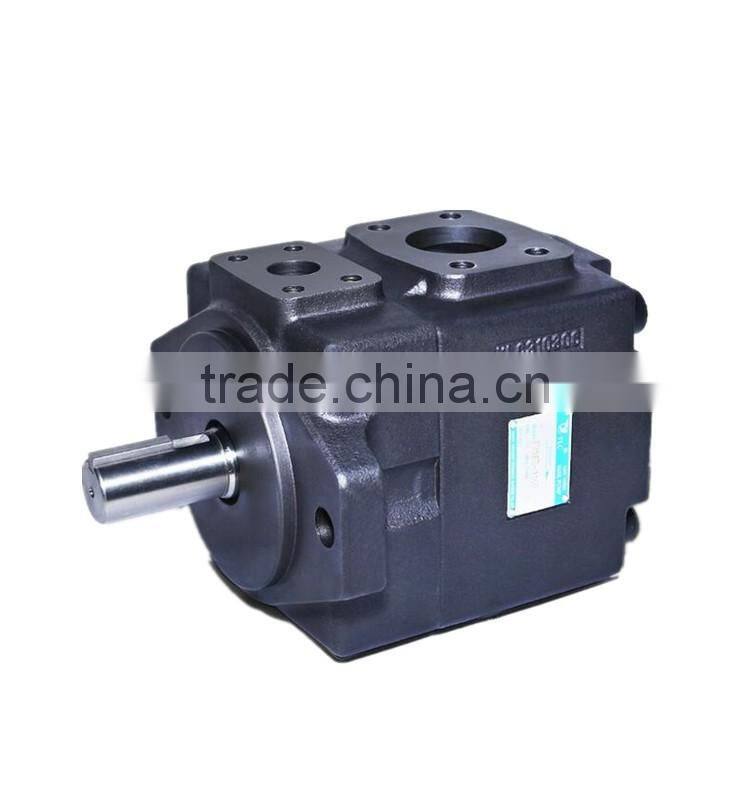

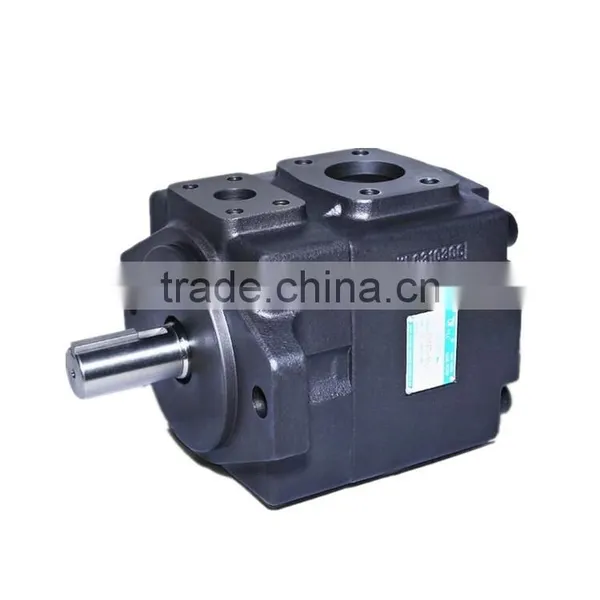

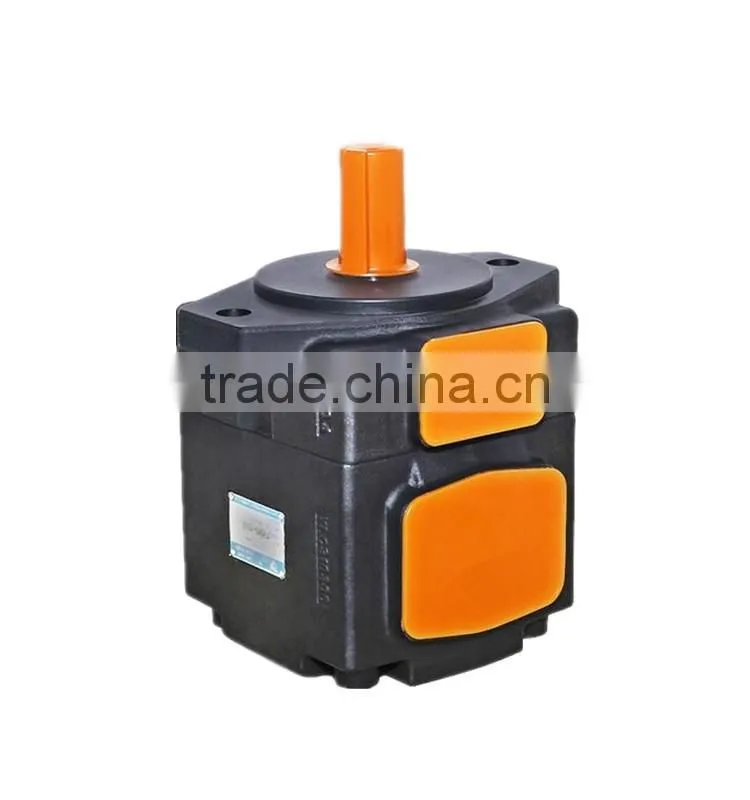

Pv2r3-153 Vane Pump Cartridge Kits

Name: Pv2r3-153 Vane Pump Cartridge Kits
Brand: raypoo
SKU: 141613866
Availability: InStock

Shenzhen Raypoo Technology Co., Ltd.

Pv2r3-153 Vane Pump Cartridge Kits thumbnail-1

Pv2r3-153 Vane Pump Cartridge Kits thumbnail-2

Pv2r3-153 Vane Pump Cartridge Kits thumbnail-3

Pv2r3-153 Vane Pump Cartridge Kits photo-1

Pv2r3-153 Vane Pump Cartridge Kits photo-2

Pv2r3-153 Vane Pump Cartridge Kits photo-3

US$ 120 - 150 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

raypoo

Model Number:

PV2R1

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name raypoo

Model Number PV2R1

Theory Rotary Pump

Structure Single-stage Pump

Usage Oil

Power Hydraulic

Standard or Nonstandard Standard

Fuel Other, oil

Pressure Low Pressure

Application Other, hydraulic system

Product Description

pv2r3-153 vane pump cartridge kits

These pumps are of high pressure and high performance, which have been developed especially for low noise operation.

To comply with a variety of applications including injection moulding machines, PV2R series single pumps provide the

output flow of such a wide range as from 5.8 to 237 cm3

/rev (.354 to 14.46 cu.in./rev).

The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit.

Therefore, the replacement of the driving parts can be done easily.

Model	Geometric displ. (cm3l/rev)	Max.operation pressure mpa(psi)						Speed of rotation
		Petroleum base oils		Water containing fluids			Synthetic fluids
								Max	Min
		Anti-wear type	R&O type	Anti-wear water glycols	Water glycols	Water in oil emulsions	Phosphate Esters
PV2R1-10	9.4	21(3050)	16 (2320)	16 (2320)	7(1020)	7(1020)	16(2320)	1800	750
PV2R1-12	12.2
PV2R1-14	13.7
PV2R1-17	16.6
PV2R1-19	18.6
PV2R1-23	22.7
PV2R1-25	25.3
PV2R1-31	31	16(2320)
PV2R2-41	41.3	21(3050)	14 (2030)	16(2320)	7(1020)	7(1020)	14(2030)	1800	600
PV2R2-47	47.2
PV2R2-53	52.5
PV2R2-59	58.2
PV2R2-65	64.7

Packaging & Shipping

How are orders packed and shipped?

Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements

Our Services

We provide hydraulic systems, hydraulic power pack, hydraulic parts(pumps, valves, motors, cylinders, accumulators and other accessories), pneumatic products (valves, cylinders, fittings and other accussories).

We also provide hydraulic system design and technical consulting

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :

FAQ

Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.

Q.What are your quality control procedures?

A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
