Roller Press Machine Hob Series Hydraulic Cylinder

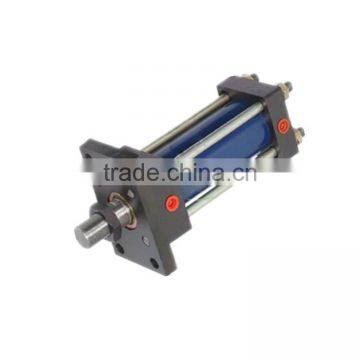

Roller Press Machine Hob Series Hydraulic Cylinder photo-1
Roller Press Machine Hob Series Hydraulic Cylinder photo-2
Roller Press Machine Hob Series Hydraulic Cylinder photo-3
US$ 450 - 550 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Standard or Nonstandard Standard
Structure Piston Cylinder
Power Hydraulic
Body Material Aluminum
Maximum Stroke 2000
Shaft Diameter 160
Place of Origin Guangdong, China
Model Number HOB
Brand Name raypoo



Product Description

roller press machine  hob series hydraulic cylinder


parameter:
pressure:16MPA
bore size:32-160mm
stroke:2000mm
speed:1-200mm/s
Simple structure easy maintenance

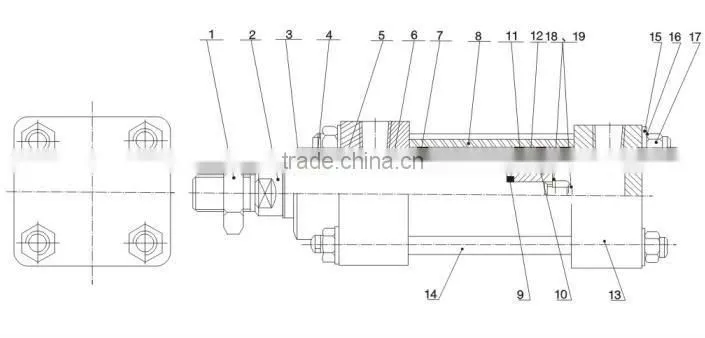

Model Description :
 roller press machine hob series hydraulic cylinder
roller press machine hob series hydraulic cylinder

Number
Parts name
Number
Parts name
1
Piston rod's nut
9
Piston rod O-shaped ring
2
Piston rod
10
Piston
3
Dust-proof ring for axle
11
Piston sealing ring
4
Oil seal for axle
12
Guiding abrasion-proof ring
5
Support ring
13
After cover
6
Front cover
14
Tie rod
7
O-shaped sealing ring
15,16,17
Plain cushion,elastic cushion, tie rod ,nut
8
Cylinder tube
18,19
Elastic cushion,piston fixed nut







Product size:









 roller press machine hob series hydraulic cylinder



Cylinder bore
φA
φB
C
D
DE
E
F
G
H
N
I
J
K
S
Z
PT
φ32
35
16
M14×1.5
52
36
28
10
15
25
25
53
100
M8
50
153
ZG1/4
φ40
40
20
M16×1.5
64
64
28
17
20
30
30
65
110
M8
50
175
ZG3/8
φ50
45
20
M16×1.5
70
70
28
17
20
30
30
65
110
M10
50
175
ZG3/8
φ63
55
25
M22×1.5
85
85
40
20
30
31
31
90
112
M10
50
202
ZG3/8
φ80
62
32
M26×1.5
106
106
40
20
32
37
37
92
129
M12
55
221
ZG1/2
φ100
78
40
M30×1.5
122
122
45
20
32
37
37
97
154
M14
80
251
ZG1/2
φ125
85
50
M40×2
147
147
55
25
35
44
44
115
168
M16
80
283
ZG1/2
φ160
100
60
M52×2
188
188
65
30
35
55
55
130
190
M20
80
320
ZG3/4

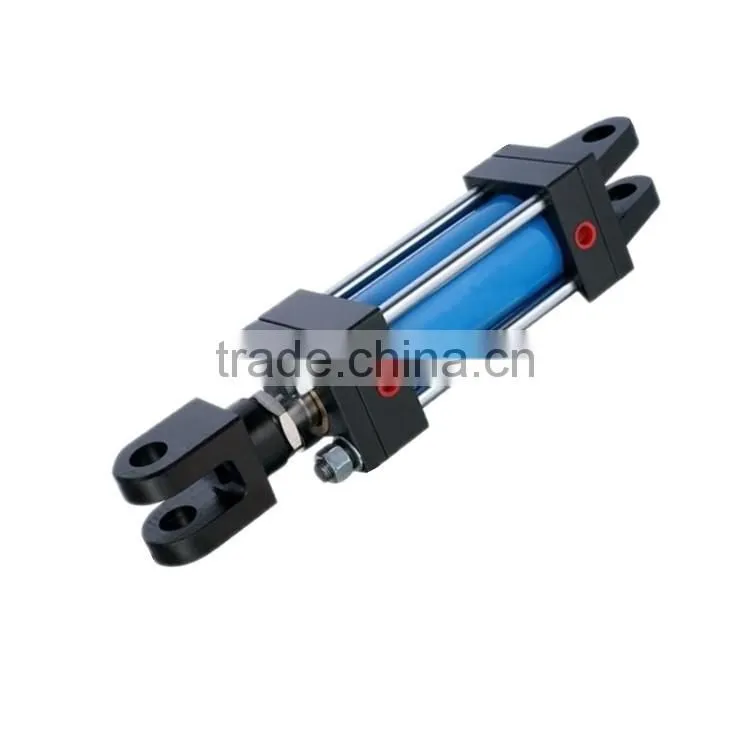

cylinder photo:

roller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinder

Packaging & Shipping

How are orders packed and shipped?

Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements

Our Services

We provide hydraulic systems, hydraulic power pack, hydraulic parts(pumps, valves, motors, cylinders, accumulators and other accessories), pneumatic products (valves, cylinders, fittings and other accussories).



We also provide hydraulic system design and technical consulting

Could Raypoo offer OEM service?



Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.



 Do Raypoo products come with a warranty?



 Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.



Company Information

     Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's  involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :

roller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinderroller press machine hob series hydraulic cylinder

FAQ

 Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.



Q.What are your quality control procedures?



A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
