Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Servo Cylinder

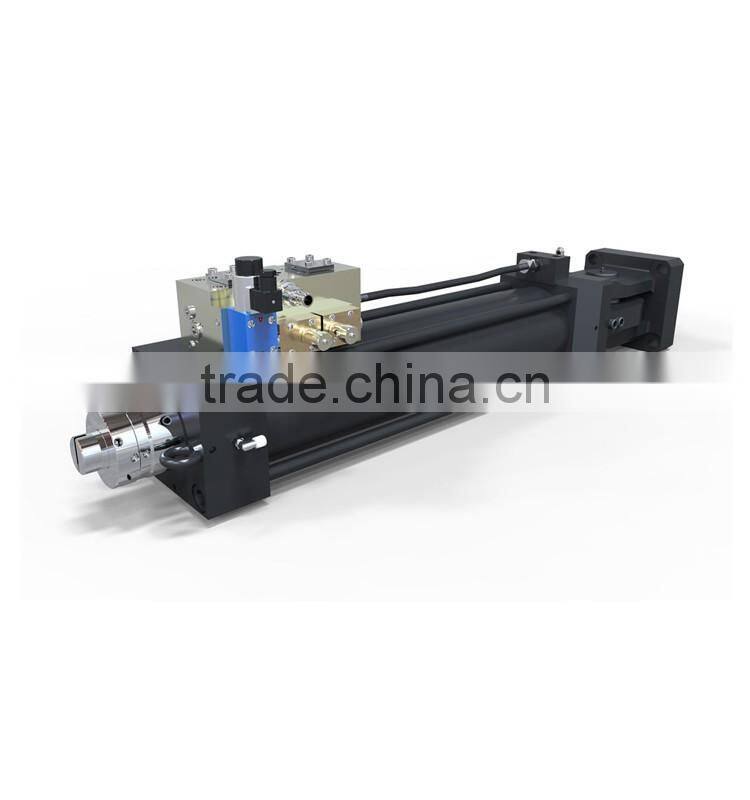

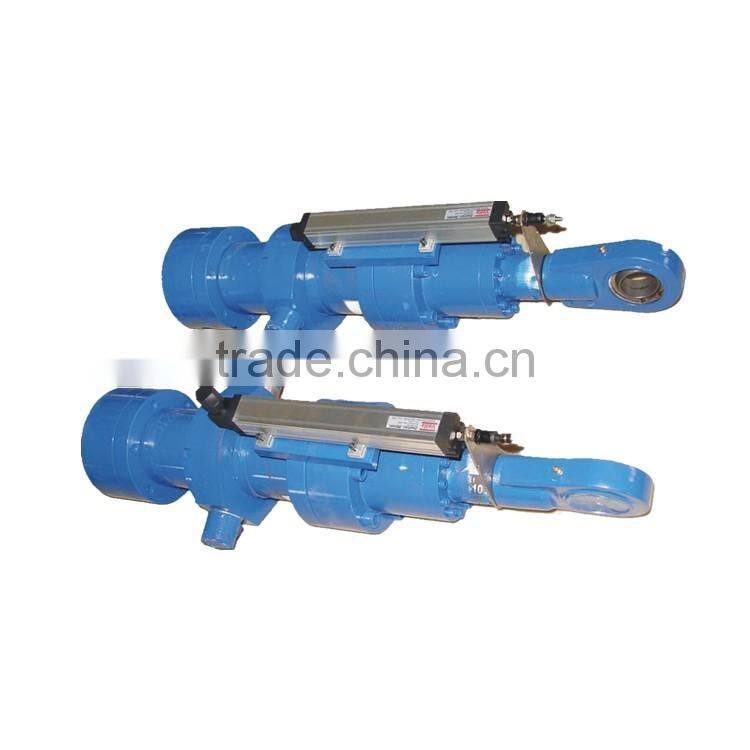

Servo Cylinder

Name: Servo Cylinder
Brand: raypoo
SKU: 141613486
Availability: InStock

US$ 650 - 750 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Piston Cylinder

Power:

Hydraulic

Contact Supplier Request Quote Chat Now

Shenzhen Raypoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Piston Cylinder

Power Hydraulic

Body Material Aluminum

Maximum Stroke 4000

Shaft Diameter 180

Place of Origin Guangdong, China

Model Number TG

Brand Name raypoo

Product Description

Servo Cylinder

parameter:

pressure:160bar bore size: 40-250 max stroke : 500-4000mm

hydraulic single cylinder car lift

1.Technical Specifications :

Bore D/mm	Rod diameter d/mm			Working pressure 16mpa				Max stroke s/mm
	Speed ratio			Thrust/kN	Tension/kN
	1.33	1.46	2	Thrust/kN	1.33	1.46	2
40	25	22	25	20.11	15.08	14.02	12.25	500
50	25	28	32	31.42	23.58	21.56	18.55	600
63	32	35	45	49.88	37.01	34.48	24.43	800
80	40	45	33	80.42	60.32	54.98	42.41	2000
90	45	50	63	101.79	76.34	70.37	51.91	2000
100	50	55	70	125.66	94.25	87.65	64.08	4000
125	63	70	90	196.35	146.47	134.77	94.56	4000
140	70	80	100	246.30	184.73	165.88	120.64	4000
150	75	85	105	282.74	212.06	191.95	144.2	4000
160	80	90	110	321.7	241.27	219.91	169.65	4000
180	90	100	125	407.15	305.36	281.49	210.8	4000
200	100	110	140	502.65	376.99	350.6	256.35	4000
220	110	125	160	608.21	456.16	411.86	286.51	4000
250	125	140	180	785.4	589.05	539.1	378.25	4000

2.Special design
1) end cushioning
2) integrated displacement

3) integrated proximity switches
4) valve mounting faces
5) flanged cover/bottom construction
6) complete 45 steel design
7) high temperature seals VITON
8) low friction seals

Packaging & Shipping

How are orders packed and shipped?

Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements

Our Services

We provide hydraulic systems, hydraulic power pack, hydraulic parts(pumps, valves, motors, cylinders, accumulators and other accessories), pneumatic products (valves, cylinders, fittings and other accussories).

We also provide hydraulic system design and technical consulting

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :

FAQ

Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.

Q.What are your quality control procedures?

A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
