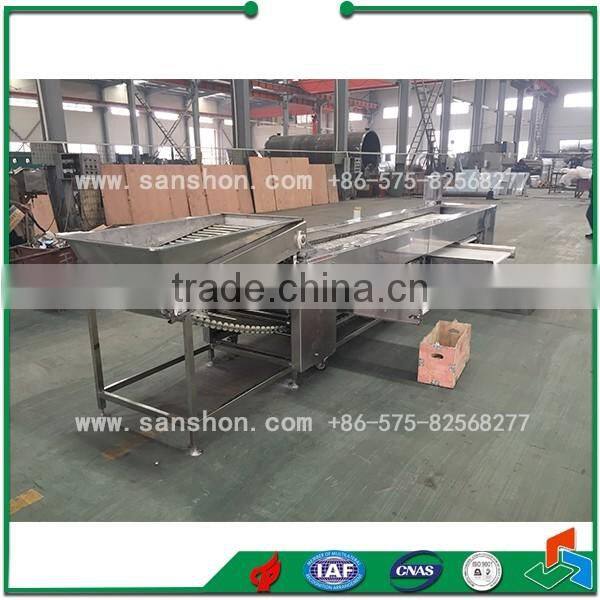

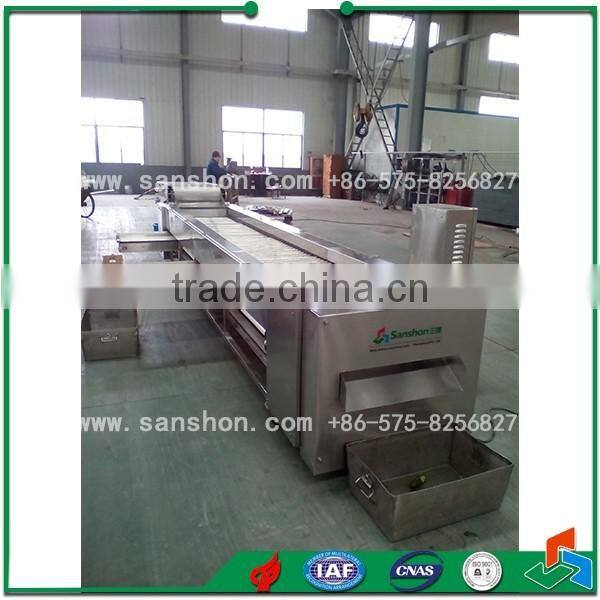

Roller Type Fruit Grader/Cherry Tomato Grading Machine/Cucumber Grader
Application
This grader is suitable for grading round-shaped and cylinder-shaped products which is graded by diameter,such as cherry, cherry tomato, cucumber etc.
Working principle:
The motor drives the transmission shaft, and the transmission shaft drives the conveyor. This conveyor is customized product. The space between two rollers on the conveyor can be adjusted by the angle iron at conveyor’s two sides, so as to meet the grading demands. The products after graded fall into the belt beneath the conveyor, and conveyed to two sides by belt. Worker collects the products by containers.
Specification:
SRG-I
dimension:7360*1420*715mm
power:1.5kw
speed:12-60r/min(manual adjustment)
roller conveyor, central width:1200mm
conveyor length:5930mm
capacity:2000-3000kg/h
It grades into six classifies
SRG-II
dimension:6260*880*715mm
power:1.1kw
speed:12-60r/min(manual adjustment)
roller conveyor, central width:660mm
conveyor length:4830mm
capacity:1000-2000kg/h
It grades into five classifies
Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.
The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd () and Shundi foods Co., Ltd()in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions
Ordering Information
Payment:
we usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
iron framework with external plywood and seaworthy package
Please send email for the extra cost of different packing
Delivery Time:
different products will spend different production period: from 30-120 days after 50% advanced payment.
For urgent order, Could be faster, please send email to negotiate
How to make an order?
1,Client make 50% deposit or open LC after receiving our PI
2,Client approve our equipment,
arrange shipment
1,Client effect balance payment before shipment
2.supplier send original documents or telex release the goods
3,quality warranty for 1 year after shipment
