Advanced SSJ Series Material Loading Trays SSJ Vegetable Tray Dryer
Application
Fruit and vegetable tunnel dehydrating dryer machine is designed to meet the requirements of export-aimed dehydrated vegetables, especially suit for mushroom, wonton , prown , fish, seafood fruit, vegetable, red date
Working principle
After the air is exchanged by the heat exchanger, the air in drying chamber is heated through heat radiation and heat convection. Under the function of fan, the hot air is diffused in the whole drying chamber and hot air and materials carry out sufficient heat exchange. Under the function of humidity removing fan, vapor is discharged outside the drying chamber so as to achieve the purpose of drying.
Main technical parameters
overall dimension: 11300x2580x3120mm
loading amount: 2.5t/batch
trolley: 1980*1000*1980mm 7 set
trays: 934*590*18 462pcs
power: 10.5kw
Technical parameter:
Model |
Dimension (mm) |
Power (kw) |
Air input (m3/h) |
Air output (m3/h) |
Capacity (kg/batch) |
Steam consumption (kg/h, peak vale≥0.4MPa ) |
Tray’s size (mm) |
Tray’s qty (pcs) |
Trolley’s size (mm) |
Trolley’s qty (pcs) |
|
SSJ-8-250 (insulation plate) |
11950×1900×2550 |
8.5 |
40000 |
18000 |
2500 |
500 |
934*775*18 |
352 |
1628*1000*1980 |
8 |
|
SSJ-7-25 (civil engineering wall) |
11300×2580×3120 |
10.5 |
54000 |
22000 |
2500 |
500 |
934*590*18 |
462 |
1980*1000*1980 |
7 |
|
SSJ-11-400 (civil engineering wall) |
15300×2580×3120 |
17.0 |
60000 |
24000 |
4000 |
700 |
934*590*18 |
726 |
1980*1000*1980 |
11 |
|
The trays could be perforated according to different material and be customized according to customer's requirements. The trolley is made of stainless steel and is with wheels for easy operation. | ||||||||||

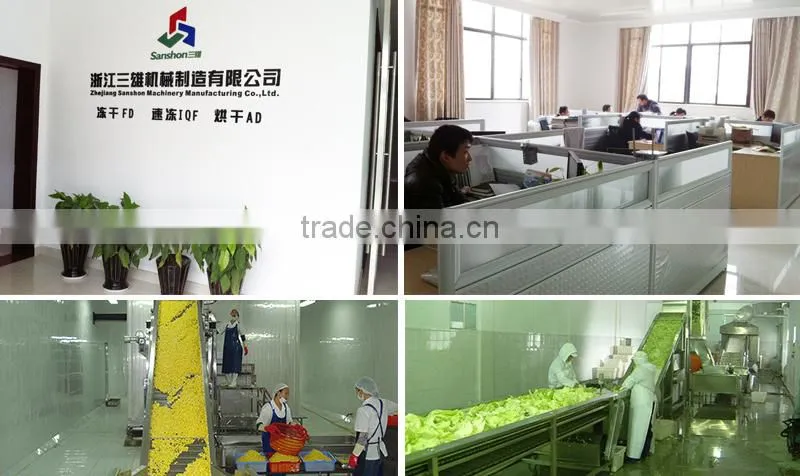

Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.

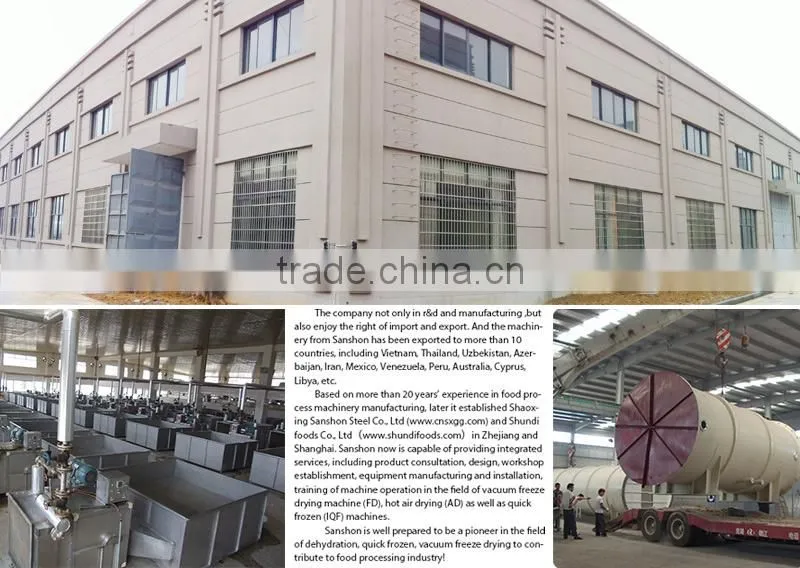

The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd () and Shundi foods Co., Ltd()in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions
Ordering Information
Payment:
We usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
Iron framework with external plywood and seaworthy package
Please send email for the extra cost of different packing
Delivery Time:
Different products will spend different production period: from 30-120 days after 50% advanced payment.
For urgent order, Could be faster, please send email to negotiate.
How to make an order?
1.Client make 50% deposit or open LC after receiving our PI.
2.Client approve our equipment.
Arrange shipment
1.Client effect balance payment before shipment.
2.supplier send original documents or telex release the goods.
3.quality warranty for 1 year after shipment.
