Advanced onion dehydration machine
Detailed Description
item: STJ box type dehydration machine
application: various vegetables, esp. sugar conained and viscous vegetables, such as carrot, cabbage, kelp, laver ect
Working temp.: 50-130C
CE approved
Automatic temperature control system
Moisture of fresh material: 70%~90%
Moisture rate of final product: 8%~30% (controllable)
Working principle
1.the boiler supplys the drier with steam through the steam pipe
2.with the help of the Radiator and Fan, the hot steam will be exchanged into hot dry air and blowed into the cabinet
3.the raw material in the cabinet exchanges moisture with hot dry air and then achieve to dry
Main technical parameter for STJ-1 Steam-consumption box type dryer
Dimenstion: 3.6*2*0.9-1.59(Length*width*height, meter)
Blower, 1 set, air volum: 9650M3/H, air pressure: 774Pa,
Power: 4Kw
Radiator: 1 set
Steam consumption: 150~200kg/h
Drying area: 4M2
Drying capacity: 50kg water/hour
Main technical parameter for STJ-A fuel-consumption box type dryer
Dimenstion: 4.45*1.39*1.63(Length*width*height, meter)
Blower, 1 set, air volum: 4890M3/H, air pressure: 589Pa,
Power: 2.2Kw
Radiator: 1 set
Heating source: Kerosene or diesel
Fuel consumption: 7-10L/h
Ignition: Automaticly
Drying area: 4M2
| Model | overall dimension | Fan blast volume | Fan Blast pressure | Fan Power | Qty. | Steam consumption | Drying area | Drying capacity |
| STJ-I | 3.6*2.0*1.585M | 9650M3/H | 774Pa | 4kw | 1set | 150kg/h | 4m2 | 50kg water/h |
| STJ-A | 3.17*3.16*1.0M | 4890M3/H | 589Pa | 2.2kw | 1set | oil consumption: 7~10L/h | 4m2 |

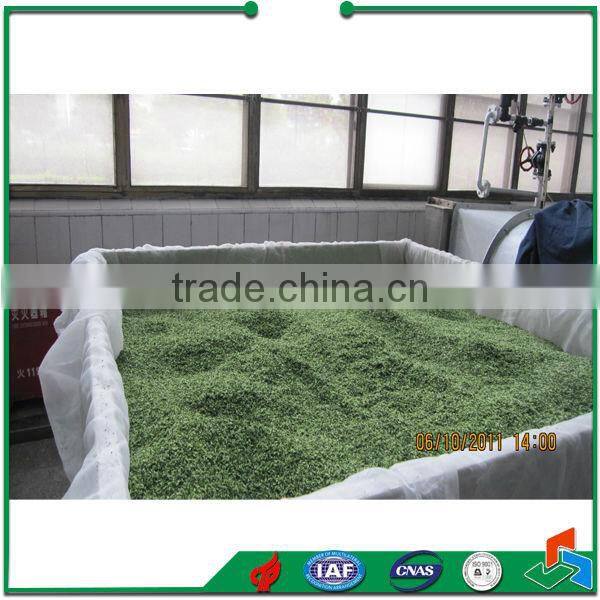

First stage: Fresh product put into the dryer and stir with tools to achieve even drying.
Second stage: Combine the semi-dried product into one for further dehydration, which saves more space for new fresh product and allows various product dehydration at the same time.
Final product: Moisture rate could be controlled. If not special required, the moisture rate will be around 8%~10%.
We could offer factory design for you.
This is another kind of dehydration. In one box dryer, there's 2 layer with several trays. This style could ensure a perfect outlook of product.
Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.
The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd () and Shundi foods Co., Ltd()in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions
Ordering Information
Payment:
We usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
Iron framework with external plywood and seaworthy package.
Please send email for the extra cost of different packing.
Delivery Time:
Different products will spend different production period: from 30-120 days after 50% advanced payment.
For urgent order, Could be faster, please send email to negotiate.
How to make an order?
1.Client make 50% deposit or open LC after receiving our PI.
2.Client approve our equipment.
Arrange shipment
1.Client effect balance payment before shipment.
2.Supplier send original documents or telex release the goods.
3.Quality warranty for 1 year after shipment.
