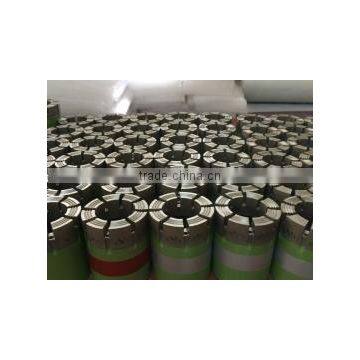

Help CenterWireline Impregnated and Surface-set Diamond Crown Diamond Core Bit
Related Products
-
NWY Diamond Core Drill BitUS$ 50 - 500MOQ: 1 Piece -
Impregnated Diamond Bit/diamond Drilling Cutter/diamond Core Bit/geological Core Bit/enchanced Diamond BitUS$ 30 - 699MOQ: 1 Piece
-
PQ, NQ, HQ Diamond Core Bit Used in Mining ExplorationUS$ 10 - 500MOQ: 1 Piece
-
Impregnated Core Bit Use for Drilling Hard FormationsUS$ 60 - 325MOQ: 1 Piece
-
WLNQ WLHQ WLPQ NW NX Diamond Core Drill BitUS$ 60 - 325MOQ: 1 Piece
What is the surface-set diamond core bit ?

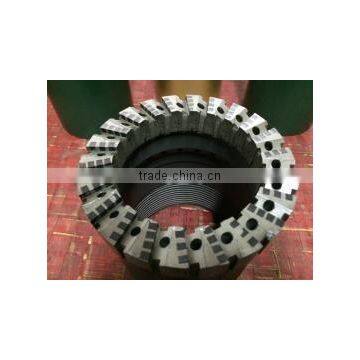

As the name suggests, the surface-set diamond bit differs from the impregnated diamond type because that they are set with a single layer of natural drill diamond on the working surfaces of the bit crown in a pre-determined pattern.
Differences of surface-set diamond core bit and impregnated diamond core bit.
The diamonds are mounted in an bit crown powdered metal matrix body that is fused to a steel tool body or shank. Unlike impregnated diamond bit which the controlled erosion of the powdered metal bit crown is desirable to expose new diamond crystals, the metal bond matrix used for all Dimatec surface-set bits is extremely tough and wear resistant. The function of the bit crown matrix body on a surface-set bit is to securely hold the diamonds in position throughout the operational
Surface-set diamond core bit widely usage.
Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits.They are also recommended for using in drilling harder formations where the available rotational speeds and bit loads are insufficient use impregnated diamond bits due to drilling equipment limitation.
Surface-set diamond core bit many good Characteristics:
In common, surface-set diamond bit will provide higher rates of penetration than impregnated diamond bits in softer formations due largely to the greater degree of exposure of the individual diamond crystals. However, as they are set with only a thick single layer of diamond crystals, surface-set diamond bits will generally yield a lower overall bit life than that of impregnated diamond bit.
