Screw Threaded Type & Proportional Soleniod Coils

Specifications

Coils with Screw Threaded type & proportional soleniod sensor
Used in electric-hydraulic control system to show the stroke

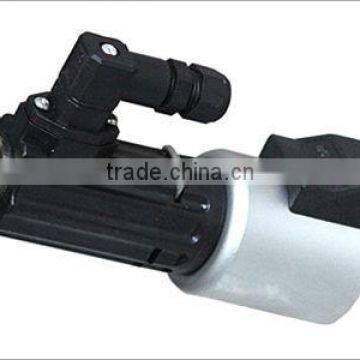

Coils    PM-H6A-SC45T



     This product is used in the electric-hydraulic control system, together with the proportional amplifier, realizes the control of NG6 NGlO proportional valve of REXROTH. In the range of therated stroke and rated current, the output force is proportional to input current. It changes the characteristic force of the system through the internal spring to make output force more stable. The stepless regulation in the range of rated input current can realize the stepless control and telecontrol of  the hydraulic system.



Specifications:



Model No.	Rated Current A	Rated Magnetic Force N	Rated Stroke mm	Full Strokemm	Full Lag Characteristic %	Current Lag Characteristic %	Repetition Precision %	Static Oil Pressure Mpa	Oil Temperature of work     °C	Power Connect mode
PM-H6A-SC45T	2.5	65	2.5	2.8	≤ 4	≤ 3	≤1	21	-20~+70	Junction Box Mode

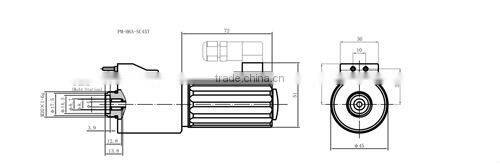

External Shape and Installing Dimension :







Advantage:

1. Low MOQ: It can meet your promotional business very well.

2.OEM Accepted: we can produce any your design.

3.Good service: We treat clients  as friend.

4.Good quality: we have strict quality conrol system. Good reputation in the market.

5. Fast& cheap delivery: we have big discount from forwarder(long Contract)



Order Guide:

Genaral Order Information

We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of  the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
