solid waste shredder plastic shredder wood shredder
Production description solid waste shredder plastic shredder wood shredder :
It is mainly used to crush various big plastic solid material, unmanageable material, roll films ,plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
Capacity: 150-5000kg/h for Roll Films Shredder
solid waste shredder plastic shredder wood shredder was primarily conceived for the shredding of plastics but is also used, for example, for processing wood off-cuts and textiles. The outstanding feature of this mid-range single-shaft shredder is its high through-put rate, achieved with the help of the rotor and swing-pusher in-feed system used to force materials into the machine. The geometric shape of the rotor can be adapted and the most suitable cutting blades selected to meet your specific requirements
This model Plastic Shredder with small nibble type ripping teeth on the rotor assembly is one of the new applications being applied to the recycling industry for shredding high volume bulk materials, such as wood pallets, furniture parts, cardboard, plastic waste, garbage and many other reusable materials. Unique adjustment method for rotor and stator blades could double or even quadruple their life-span. Material is fed through the hopper in front of a hydraulically operated drawer, which pushes the material load-controlled onto the turning rotor. The material is shredded between the rotor knives and a fixed counter knife. The screen hole with different perforation diameters determines the size of shreds. Produced shreds can drop from the machine through the screen perforation directly or be removed with the optional suction device or spiral conveyor.
Usage :
to crush various big plastic solid material, unmanageable material, wood , plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
n at low speed
Screen perforation is adjustable according to customers' requirement
The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.
Automatic control by Siemens PLC, with functions of start, stop, reverse, overload reverse automatically,with feature return and overload returns automatically, with characteristics of big torque in low speed and low noise. Convenient to change blade by split bearing block. Suitable for crushing the big solid material like television, washing machine, shell of refrigerator, big size pipe, pipe fittings, forklift splint, tyres, packing barrel, aluminum, copper and steel less than 5mm.
Special Features:
1.Suitable for shredding all kinds of waste plastics and various difficult to be crushed
plastic products and etc.
2.Low rotation rate,low noise and large moment of torsion.
3.Mechanical or electical over loading of the equipment is well avoided by the preset
protective assembly.
4.Special designed cutter with high strength and long service life.
5.Can be customized according to customer's special requests.
6.High capacity and stable performance.
MAIN TECHNICAL PARAMETER:
| Model | Power(KW) | Number of revolving knife | Thickness of knife(mm) | Diameter of knife(mm) | Number of knife(mm) | Output(kg/hour) |
| S2-600 | 11 | 12 | 50 | 280 | 5 | 300-800 |
| S2-600 | 15 | 12 | 50 | 280 | 5 | 300-800 |
| S2-800 | 22 | 16 | 50 | 300 | 5 | 500-1500 |
| S2-800 | 37 | 16 | 50 | 300 | 5 | 500-1500 |
| S2-1000 | 2*30 | 20 | 50 | 350 | 5 | 1000-2000 |
| S2-1200 | 2*30 | 24 | 50 | 400 | 5 | 1500-2500 |
| S2-1600 | 2*37 | 22 | 70 | 450 | 5 | 2000-3000 |
used car shredder for cutting whole tire to 50*50mm rubber block.
This machine has the compact structure, advanced technology, low power consumption, high eficiency,
crushing room with folio structure, easy to maintain, etc. The machine adopts hard alloy steel as its blade,
high rigidity and wearble, repeating and wearable, repeating repair use polong use life.
Circle mesh screen is steel is steel gridding structure, big area for material dropping is
good for production of eligible rubber materail. The oversize types should be cutted before crushing.
Car tire shredder Technical Parameter:
MODEL:SO-800
1. The size of raw material: 800 mm whole type.
2. The size of finished material: 50*50 mm.
3. Capacity: 1000~1500Kg/h.
4. Main motor: 48Kw.
5. Overall Size: 2450*2140*2490mm
6. Weight: 5200Kg.
MODEL:SO-1200
1. The size of raw material: 1200 mm whole tire.
2. The size of finished material: 50*50 mm.
3. Capacity: 3000~4500Kg/h.
4. Main motor: 94 KW.
5. Overall Size: 4000*3140*3500mm
6. Weight: 17500Kg.

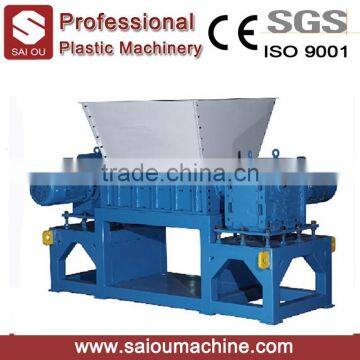

Double Shaft Shredder for crushing plastics, rubber, fiber, paper, wood, large hollow materials (plastic barrels and other large containers) and a variety of mixed waste especially metal-containing waste, or pre-crushed containing sand and other easy to wear tool waste. For example: film rolls, bags, televisions, refrigerators shell, wood, car and midsize car tires and hollow barrel class, fishing nets, cardboard, board and so on.
The thickness and number of claw cutter knife can be replaced according to different materials. When broken hollow material feeding device can be equipped with pressure to increase production. Another may be added to control the discharge rotary screen size.
When the biaxial shredder low speed operation, noise and dust can reach higher environmental standards.
More products about the shredder: wood shredder , paper shredder , waste tyre shredder , crusher machine .
Plastic Shredder/Paper
are the motorized devices that turn sensitive documents into incomprehensible waste, securing them from theft or unauthorized imitation. The powerful and purposeful shredders not just secure individual discretion through the elimination of certain personal documents but these advanced shredding machines provide great deal of organizational benefits with complete decomposition of sensitive corporate information or strategic documentation.
DELIEVERY: shipping
CONTAINER: 40HP 20 GP 40 GP
PACKING DETAIL: FILMS OR WOOD PALLAT
SAIOU MACHINERY are a professional manufacturer and exporter specializing in research, developing and producing kinds of plastic machinery.Such as:
(1) PP/PE film washing & recycling line; PE film granulating line; HDPE bottle washing line ;PET bottle washing line; PVC hot-cutting granulating line;
(2) Extrusion Production lines for pvc pipe making machines HDPE corrugated pipe, PE/PVC/PPR pipe, PE/PVC double wall corrugated pipe, PE carbon spiral pipe, double-wall large spiral pipe;
(3) plastic profiles production line;
(4) single or twin screw extruder, mixer, cutter, hauling machine and other auxiliary machines,etc.
Since the company was set up in 2001, it has adhered to its idea of quality, service and creation, with its excellent and advanced production equipment, professional talents of technique designing, has gone on producing sets of equipment which are widely suitable for plastics processing. So,our products have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya.
skype: saiouzjg
whatsapp: +86-13962247879
wechart: +86-13962247879
