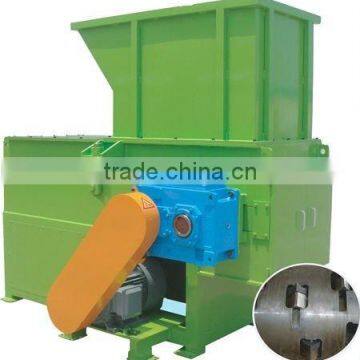

waste PP PE lump plastic shredder
Production description waste PP PE lump plastic shredder :
It is mainly used to crush various big plastic solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle. The single shaft shredder can cut for plastic ,has CE certifications.
Capacity: 150-1000kg/h for plastic single shaft shredder
Plastic Single shaft shredder was primarily conceived for the shredding of plastics but is also used, for example, for processing wood off-cuts and textiles. The outstanding feature of this mid-range single-shaft shredder is its high through-put rate, achieved with the help of the rotor and swing-pusher in-feed system used to force materials into the machine. The geometric shape of the rotor can be adapted and the most suitable cutting blades selected to meet your specific requirements
Shredder Designed for plastics. The Plastic Single Shaft Shredder has been designed exclusively for efficient recycling of polymer materials. |
- The blade base and blade on the rotary roller can be disassembly. it is easy to clean and maintenance

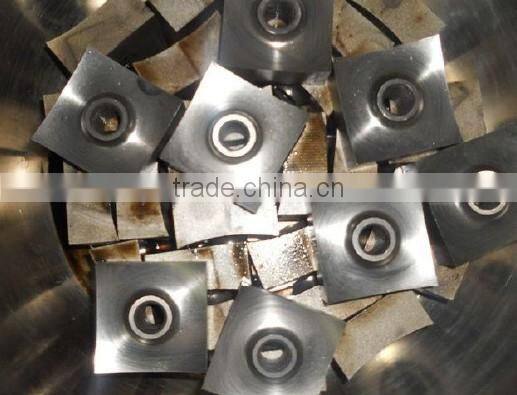

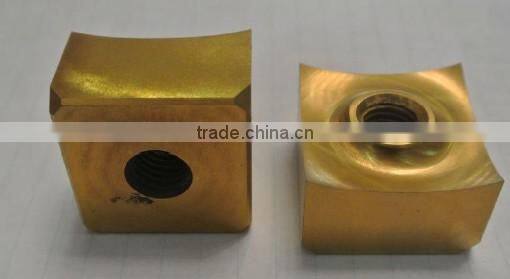

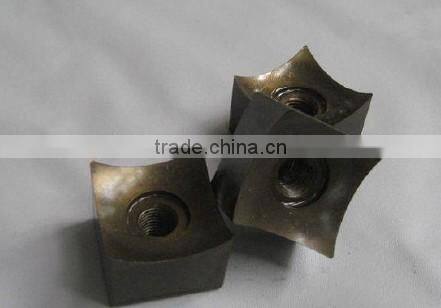

- The rotary blade adopt the rhombi forms, which can decrease the noise and energy consumption.
- Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.
- Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.
Energy saving for plastic single shaft shredder . A Plastic Single Shaft Shredder followed by a grinder/granulator is a solution that is ver plastic single shaft shredder y energy effective. Compared to a solution with a single large grinder/granulator for the job, the Single Shaft Shredder in combination with a optimized grinder/granulator do the job much more effective.
V-CUT cutting technology of waste plastic single shaft shredder. The unique V-CUT Technology for plastic single shaft shredder, is a combination of V-knife cutting angle, cutting speed and sequential cutting. It provides a best shredding solution for plastic materials.V-CUT provides a sheer and smooth cut with low stress and therefore requires less motor power.
Pneumatic PUSHing system. The pneumatic PUSH-system is auto-regulating, efficiently absorbing vibrations and mechanical stress that occur in tough applications. The special hopper design allows material to feed directly into the rotor.This is the plastic single shaft shredder advantage. It can shredder what crusher can not break, the shaft and blade has long time usage.
Special gear box design for plastic single shaft shredder . The Plastic Single Shaft Shredder design contains no compromises. Its unique cutting technology together with a Special gearbox requires lower motor power for the job, minimizing energy consumption.
Easy cleaning/access of plastic single shaft shredder . The Plastic Single Shaft Shredder design puts handling in focus. Cleaning the machine for new materials or colors is easy. Just remove a front side plate, and you have quick access to the machine’s interior.

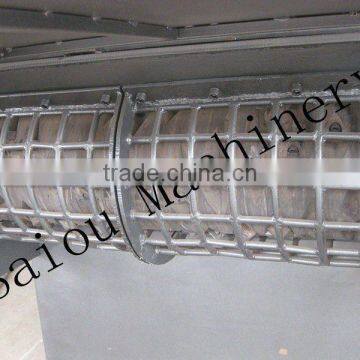

Screenless operation. As the material is cut into uniform pieces, the Single Shaft Shredder operates with & without a screen, although screens can be installed as an option when smaller chip sizes are required.
Easy maintenance. The front opening makes it possible to access the rotor of the machine fast and easily. All knives, rotating and fixed are easy accessible. The rotating knives are reversible and are of cassette type, simplifying maintenance.

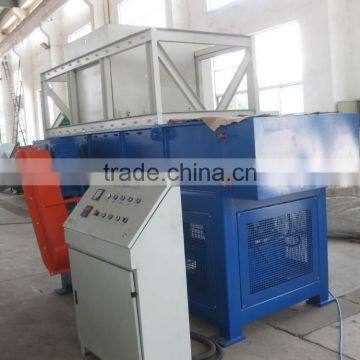

plastic single shaft shredder for big plastic lump and wood
Technical parameter of plastic single shaft shredder
Model | Power(KW) | Capacity (Kg/h) | Weight (Kg) |
SNC-600 | 22or30 | 200-450 | 2000 |
SNC-800 | 30or37 | 500-750 | 3200 |
SNC-1000 | 37or45 | 600-900 | 3800 |
The above is just for reference, we can design the machine according to your fact need! | |||

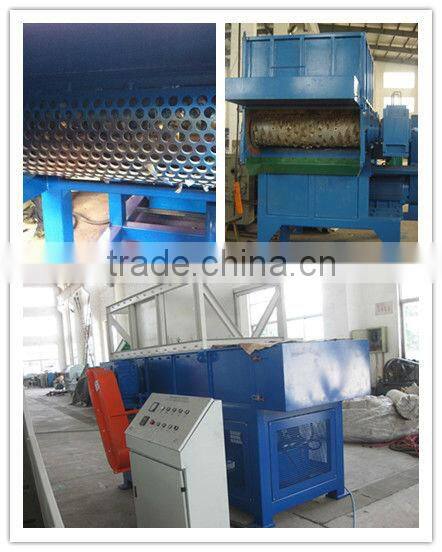

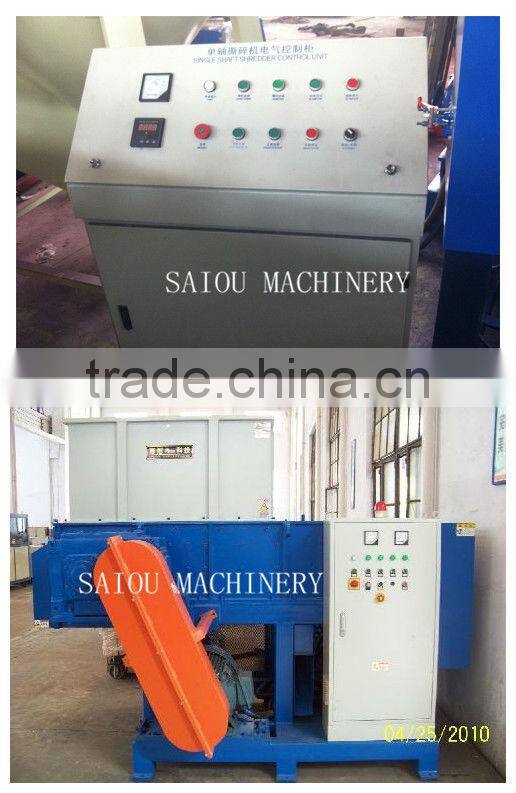

Detail of Products CE certificated plastic single shaft shredder :
Usage plastic single shaft shredder :
to crush various big plastic solid material, unmanageable material, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
Main Advantage HOT CE certificated plastic single shaft shredder CE certificated plastic single shaft shredder are the motorized devices that turn sensitive documents into incomprehensible waste, securing them from theft or unauthorized imitation. The powerful and purposeful shredders not just secure individual discretion through the elimination of certain personal documents but these advanced shredding machines provide great deal of organizational benefits with complete decomposition of sensitive corporate information or strategic documentation.
Final Products:CE certificated plastic single shaft shredder
Certificate:
Payment:
1. 30% TT is down payment as deposit, and 70% is paid before shipment.
2.30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
3. 100% irrevocable L/C at sight.
4. By Escrow from Alibaba.
DELIEVERY: shipping
CONTAINER: 40HP 20 GP 40 GP
PACKING DETAIL: FILMS OR WOOD PALLET
plastic single shaft shredder
SAIOU MACHINERY are a professional manufacturer and exporter specializing in research, developing and producing kinds of plastic machinery.Such as:
(1) PP/PE film washing & recycling line; PE film granulating line; HDPE bottle washing line ;PET bottle washing line; PVC hot-cutting granulating line;
(2) Extrusion Production lines for pvc pipe making machines HDPE corrugated pipe, PE/PVC/PPR pipe, PE/PVC double wall corrugated pipe, PE carbon spiral pipe, double-wall large spiral pipe;
(3) plastic profiles production line;
(4) single or twin screw extruder, mixer, cutter, hauling machine and other auxiliary machines,etc.
Since the company was set up in 2001, it has adhered to its idea of quality, service and creation, with its excellent and advanced production equipment, professional talents of technique designing, has gone on producing sets of equipment which are widely suitable for plastics processing. So,our products have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya.
