plastic pipe extruder .
A. Production description of plastic pipe extruder :
1.Diameter: 20~630mm
2.Total power: 90~314kw
3.Extruder: SJ65*30, SJ75*30, SJ90*30, SJ120*33
4.Parater technical:
Parameters Model specifications |
PE63 |
PE160 |
PE400 |
PE630 |
Extruder specifications |
SJ65*30 |
SJ75*30 |
SJ90*33 |
SJ120*33 |
Size of production of pipe(mm) |
20-65 |
65-160 |
160-400 |
400-630 |
Line speed(m/min) |
≥1-10 |
≥1-4.2 |
≥0.15-2 |
≥0.02-1.2 |
Compressed air ≥0.6MPam3/min |
0.3 |
0.3 |
0.5 |
0.6 |
Cooling water flow m3/h |
4 |
6 |
10 |
14 |
The total power |
90 |
120 |
210 |
314 |
5.System Configuration
Item |
Machine |
Qty |
1 |
Vacuum loader |
1 set |
2 |
Hopper dryer |
1 set |
3 |
Single Screw Extruder |
1 set |
4 |
Mould |
whole 1 set |
5 |
Co-extruder |
1 set |
6 |
Vacuum calibration tank |
2 sets |
7 |
Extended cooling tank |
2 sets |
8 |
Four-claws Hauling Machine |
1 set |
9 |
Planet Cutting Machine |
1 set |
10 |
Stacker |
1 set |

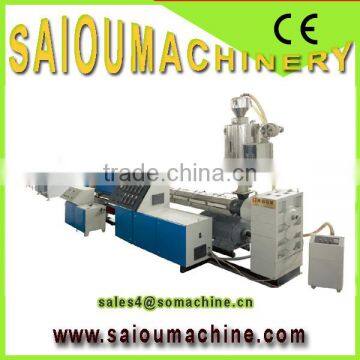

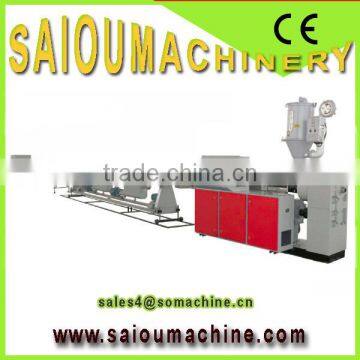

B. Detail of PE plastic pipe extruder :
C.Process flow :
D.Usage :
This production line is mainly used for producing polyolefine polyethylene pipe material, it is suitable for high speed extruding of PE,PP,PB,PERT pipe material.It has applied strong compact decelerator box, block type separation screw, channeled cylinders,basket type extruding mouid ,etc. It provides strong guarantee for users to produce high quality plastic pipe material.
E. Main Advantage :
1.PE water gas supply pipe machine, specification is 20-630mm, Output: 60-1000kg/h, with excellent hardness and flexibility.
2.The machine adopts DC motor, and Eurotherm DC digital converter and high efficiency screw to ensure high efficiency extrusion.
3. This production line adapts basket type composite die head, which ensures not only the uniformity of high speed extrusion but also the stable performance of tubular goods.
4. This production line adopts high efficiency double chamber vacuum calibrating technology and spray cooling bath to improve the rate of finished products of tubular goods and meet the demand of high-speed production. The vacuum bath and cooling bath adopt stainless steel.
5. This production line adopts multi-caterpillar haul-off and ensures the synchronization.
6. The cutting machine adopts special saw blade with low noise, equipped with chip collector.
7. The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenie
F.Final Products :
Certificate of plastic pipe extruder :
Package of plastic pipe extruder :
1.Film package: we used simple package suit for shipping.
2.Wooden package: If you want to wooden package, you should paied the extra cost.
Factory Show :
After sale-service .
- A. If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
- B. Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers
If you want to know more information ,please contact with us directly.
