Specifications
Plastic PVC pipe extrusion machine line10 years experience
capacity:25-300kg/h
automatic line
CE ISO9001
Plastic PVC pipe extrusion machine line
A. Production description :
2013 New series PVC Pipe Extrusion Line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agriculture and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter, stake and etc. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. Plastic PVC pipe extrusion machine line The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line is of reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, e.g. Spiral silencing pipe and core foaming pipe according to your requirements.
Plastic PVC pipe extrusion machine line
Technical parameter
Model number |
PVC-16/63 |
PVC-20/110 |
PVC-50/160 |
PVC-75/250 |
PVC-110/315 |
PVC-200/450 |
PVC-315/630 |
PVC-500/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
500-800mm |
Max output |
120kg/h |
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
800kg/h |
1400kg/h |
Production rate |
1.5-15m/min |
0.8-8m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
0.07-0.7m/min |
0.05-1 m/min |
Extruder model |
SJZ-50/105 |
SJZ-50/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
SJZ-105/220 |
Installed power |
45kw |
45kw |
55kw |
75kw |
105kw |
160kw |
205kw |
305kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1350mm |
Installation area |
22*2.5*2.0m |
24*2.8*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
38*3.2*2.8 m |
42*3.5*3.2 m |

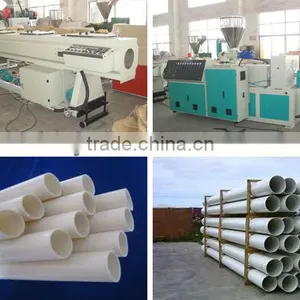

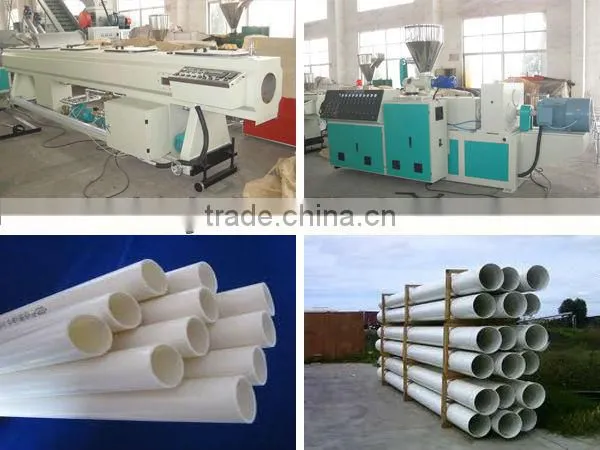

B. Detail of Products:
C.Process flow:
C.Usage:
1)high-speed extrusion
2)high technology&competitive price
3)no-dust cutting
4) easy handling
C.Main Advantage
With the "trust and quality are the first" of our factory, we supply all the machine with high quality. We promise what kind of material we will use, we will keep this promise for our kind customers. That's the most important for our factory wins a lot of customers so far, and we will last it all the time.
F. Final Products:
G. Certificate:
H. Payment:
1. 30% TT is down payment as deposit, and 70% is paid before shipment.
2.30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
3. 100% irrevocable L/C at sight.
4. By Escrow from Alibaba.
I. Package:
1. Film package: we used simple package suit for shipping.
2. Wooden package: If you want to wooden package, you should paid extra cost.
J. Factory Show
K. Trade show
L. After sale-service.
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. After One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers
