manufacturer plastic PVC pipe machine with price
- 1 Set / Sets per Month
- SHANGHAI CHINA
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Other, Pipe, water supply and drainge, cable and wire pie and so on | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | auto | Place of Origin: | Jiangsu, China |
Brand Name: | SAIOU MACHINERY | Model Number: | SAIOU | Voltage: | 380V 50HZ 3Phase(Customized) |
Power(W): | 37kw | Dimension(L*W*H): | 24*2.8*2.0m | Weight: | 10TON |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Plastic PVC pipe machine with price

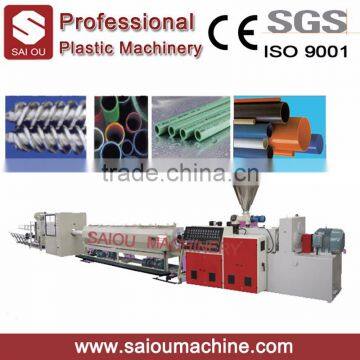

pvc pipe machine is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agriculture and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter, stake and etc. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device. This line is of reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, e.g. Spiral silencing pipe and core foaming pipe according to your requirements.
Technical parameter
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
B. Detail of Products for PVC pipe machine with price:
plastic PVC pipe machine with price
1, Production flow
Raw material+agency----------mixing---loader-----force feeding-------extrusion----extrusion mould—vacuum forming tank---spray cooling tank—oil printer---haul-off---cutter----stacker
2,Each part machinery's function introduction
(1),raw material mixing: is PVC stabilizers, plasticizers, antioxidants and other accessories, scale, technology has added into a high-speed mixer, the material and mechanical friction material from temperature to set the process temperature, and then the cold mixing machine material to 40-50 degrees; this can be added to the extruder hopper.
(2),The extruder portion: the machine equipped with a quantitative feeding device, so that the extrusion amount and feeding amount can be matched, to ensure that the products stable extrusion. Due to the characteristics of conical screw, a feeding section having a larger diameter, the material heat transfer area and the shear velocity is relatively large, is conducive to the plastics materials in metering section of screw, small diameter, reducing the heat transfer area and on the shear rate of melt, the melt at lower temperatures and extrusion. Screw in the barrel rotates, the PVC mixture plasticizing to head, thereby achieving compaction, melting, mixing and homogenizing; exhaust gas, dehydration of. The feeding device and a screw drive device with variable frequency speed control, can realize the synchronous speed control.
(3),Extrusion die head part : by compaction, melting, mixing of PVC, with follow-up materials by the screw to die, extrusion die head is the key part of the pipe forming
(4),Vacuum shaping water tank for pipes, cooling stereotypes, stereotypes water tank is provided with a vacuum for shaping and cooling of the vacuum system and a water circulating system, stainless steel tank, circulating water spray cooling, vacuum shaping water tank is provided with a mobile device, and left and right height regulating manual device.
(5),hauling machine for continuously, automatically and is cooled to harden the pipes from the head out, variable frequency speed regulation
(6),Cutting machine: by the travel switch according to the length required control, automatic cutting, and delay over the frame, implementation of water production, cutting machine with permanent switch signal for instruction, complete the cutting process, the cutting process and pipe running to maintain synchronization, cutting process by the electric and pneumatic drive, cutting machine is provided with a dust suction device, the cutting chips produced by timely aspirate, and recovery
(7),stacker: material turning movement from the cylinder through the gas path control to achieve erection, turning a limit device, when the cutting saw to cut the pipe, pipe to transport, after time delay, the cylinder into the work, realize the turning action, reach the discharging purpose. After unloading, the delay of several seconds automatic reset, waiting for the next cycle.
We use good quality C model and U model steel as the frame, SIEMENS motor, SIEMENS contactor, OMRON tempertre controller, TTIANYI Button, ABB/FUJI/HOLIP/SHREADER inverter etc. electrical parts.
Choose us, closier to success.
3,machinery technical parameter
extrusion machinery | SJZ55/110 or SJZ65/132 conical double screw extruder |
pipe range | 16-63mm 63-125mm |
Main motor | 22kw 37kw |
Motor speed adjusting | 22kw ABB 37kw ABB inverter |
vacuum and water pump | 4.0kw 4.0kw |
hauling motor | 1.1KW*2pcs |
cutting motor | 1.5kw |
Area need | 22X2X2.8m |
Others models:
Model | GF125 | GF160 | GF250 | GF500 | GF630 |
Max pipe | 125mm | 160mm | 250mm | 500mm | 630mm |
Auxiliary power | 13kw | 14kw | 19kw | 27.5kw | 35kw |
Water cost | 3 | 6 | 6 | 9 | 12 |
Air cost | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
C.Usage:
1)high-speed extrusion
2)high technology&competitive price
3)no-dust cutting
4) easy handling
C.Main Advantage
With the "trust and quality are the first" of our factory, we supply all the machine with high quality. We promise what kind of material we will use, we will keep this promise for our kind customers. That's the most important for our factory wins a lot of customers so far, and we will last it all the time.
- Film package: we used simple package suit for shipping.
- Wooden package: If you want to wooden package, you should paied the extra cost.
Do you know our service?
The machine inspection before delivery in SAIOU MACHINERY When you come to our factory .Check everything is it ok .
Free of charge of some necessary spare part.
One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
We accept 30% TT down payment, 70% TT or LC at sight before delivery.
Film packing or plywood packing suit for sea shipping.
Welcome to Our Factory
Our machines export to USA, RUSSIA, BULGARIA, CHILE, MALAYSIA, CAMBODIA, VIETNAM, KOREA, MEXICO, INDIA, BANGLADESH etc.
Trade show:
Welcome to SAIOU MACHINERY! We are always here.
Any further about plastic PVC pipe machine with price, please contact with us at any time.
Mr. Kingfy Lee
TEL: 0086-13962242001 [Whatsapp/Viber]
Skype: kingfy.lee
ADD: Zhenbei road, leyu town, zhangjiagang city, jiangsu province, china
WEB
Our factory is nearby Shanghai, very welcome to visit us.
