granulating machine sets
It is an idea equipment to pelletize plastic film into granules. Capacity is from 100kg/h to 500kg/h.
This line is of new design, reasonable configuration, steady operation, low noise, low consumption and high output.
granulating machine sets Main technical parameters:
Type |
SAIOU120 |
SAIOU140 |
SAIOU160 |
Name |
plastic pe granulator |
||
Hot plastic material |
PP / HDPE / LDPE / LLDPE / ABS / PS / PA |
||
Max capability |
PP: 350kg/h HDPE: 400 kg/h LDPE:450 kg/h |
PP: 450kg/h HDPE: 500 kg/h LDPE:550 kg/h |
PP: 600kg/h HDPE: 700 kg/h LDPE:750 kg/h |
Total power |
170 KW |
200 KW |
250 KW |
Type |
SAIOU80 |
SAIOU 100 |
SAIOU 110 |
Hot plastic material |
PP / HDPE / LDPE / LLDPE / ABS / PS / PA |
||
Capability |
PP: 120kg/h HDPE: 150 kg/h LDPE:180 kg/h |
PP: 200kg/h HDPE: 240 kg/h LDPE:260 kg/h |
PP: 250kg/h HDPE: 300 kg/h LDPE: 350 kg/h |
Total power |
65 KW |
90 KW |
140 KW |
Type |
(130x70) |
(110x70) |
Usage |
Film, pressure mouth, nylon recycling |
|
Capability |
HDPE-LDPE: 100-120 kg/h |
HDPE-LDPE: 90-110 kg/h |
Total power |
45 KW |
55 KW |
plastic pe granulator
No. |
Item |
1 |
Belt conveyer |
2 |
Crushing barrel |
3 |
Extruder |
4 |
Die head and screen changing device |
5 |
Water ring cutter |
6 |
Vibrating screen |
7 |
Vertical dewatering machine |
8 |
Air drying system |
9 |
Cyclone hopper |
C.Process flow plastic pe granulator :
D.Usage plastic pe granulator :
pppe film granulator, granulator, granulating machine, this machine is mainly used to process pp/pe films into pellets
E. Main Advantage plastic pe granulator
1. High-efficient force-feeder ensures high capacity feeding, low energy consumption
2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity.
3. Pelletizing style: Water-ring cutting with extrusion mould, even cutting ensures good shape.

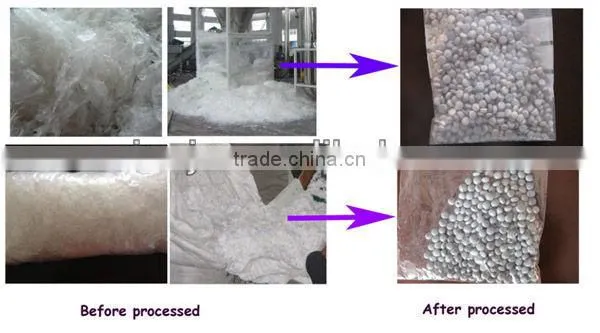

F.Final Products plastic pe granulator :
SAIOU did export business since 2006,so we have the certifications which suit for shipping our products: plastic crushing washing drying machine, plastic pelletizing machine, plastic pipes production line ,shredders ,all include our machines.And we also have quality certification.
Our machines export to USA, RUSSIA,BULGARIA,CHILE,MALAYSIA,CAMBODIA,VIETNAM,KOREA,MEXICO,INDIA,BANGLADESH etc, too much places.
Do you know our service?
The machine inspection before delivery in SAIOU MACHINERY When you come to our factory .Check everything is it ok .
Free of charge of some necessary spare part.
One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
We accept 30% TT down payment, 70% TT or LC at sight before delivery.
Film packing or plywood packing suit for sea shipping.
