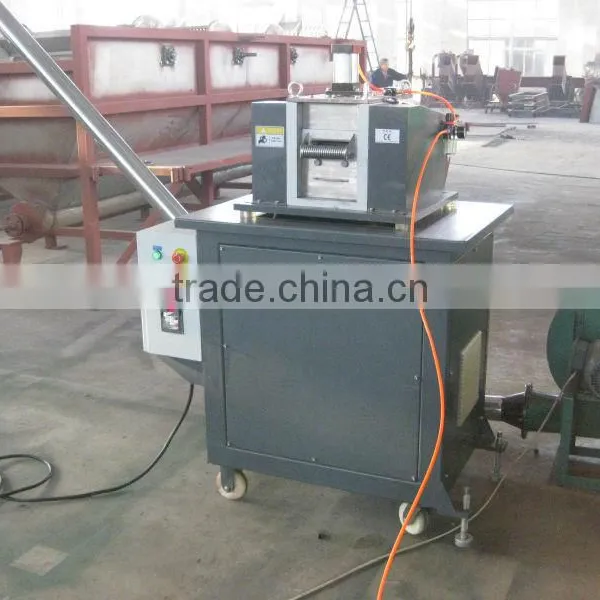

Help CenterBest Quality HDPE Flakes Plastic Recycling Pelletizing Machine
Related Products
-
High Output Hdpe Flakes Granulating Pelletizing Machine in ChinaUS$ 30,000 - 80,000MOQ: 1 Set -
High Quality Film Pelletizing Production LineUS$ 30,000 - 80,000MOQ: 1 Set
-
Best Sale HDPE/PP,PE Plastic Pelletizing Machine in ChinaUS$ 30,000 - 80,000MOQ: 1 Set
-
High Quality Single Stage Plastic Film Granulation Line With CompactorUS$ 15,000 - 100,000MOQ: 1 Unit
-
Best Sale Waste Plastic Ldpe Compactor Pelletizing Line In ChinaUS$ 15,000 - 100,000MOQ: 1 Unit
Applicable plastic materials:PP,HDPE,LDPE,LLDPE,etc.
Material shapes:Film,bag and flake
Material types:pe bag,printed LDPE film,film (rolls,loose,bundles),agricultural film waste,foamed plastics(EPS) and raffia.
Note:Depending on material property,various downstream equipment are available
Characteristics
This production line is composed of special designed agglomerator, single-screw extruder, screen changer, dryer, vibrator and packing system, etc.
1. Greatly increase output
2. Continuous production
3. Flexible pelletizing style
Main technical parameters:
| SCREW DIAMETER(MM) | L/D RATIO | POWER | CAPACITY(PE) |
| 100MM | 32:1 | 110KW | 150-300KG/HOUR |
| 120MM | 34:1 | 130KW | 200-350KG/HOUR |
| 140MM | 36:1 | 160KW | 350-400KG/HOUR |
| 180MM | 36:1 | 180KW | 150-540KG/HOUR |
The general process of this whole production line for plastic granulating machine is as following:
1)Putting into the feeder----Extruding ---- water cooling ---- drying----cutting into granulator
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PE PP PS ABS PVC and polyolefin Modificationand granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
2)It can make granules from pe pp flakes, film or bottles and so on. Our capacity is from 100kg/h to 500kg/h
3)With rotation feeder, the pe pp flakes will get into the screw even and continuously, our motors, tempreture controller and inverters are made by world famous brand, such as Siemense, Omron, RKC, FUJI, and so on. Our screw and barrels are 38CrMoALA, nitrogen treatment. With double screen exchanger, you can exchange the screen without stopping the machines.
Packaging Details:film package,wood pallet,wood case
Delivery Detail: within 60days for HDPE/PP,PE plastic pelletizing machine
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance
- Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers
Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.
SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.
Advanced equipment, mature techniques and strict testing system guarantee high quality products.Saiou would like to cooperate with you for a longer business in near futures..
Welcome to SAIOU MACHINERY! We are always here.
If you want to know more information ,please contact with us directly.
Ann Lin
whatsapp:+8613962470166
Tel:0086-13962470166
Adderss:Zhenbei road,leyu town,zhangjiagang city,jiangsu province,china
Website:
Send Inquiry to This Supplier
