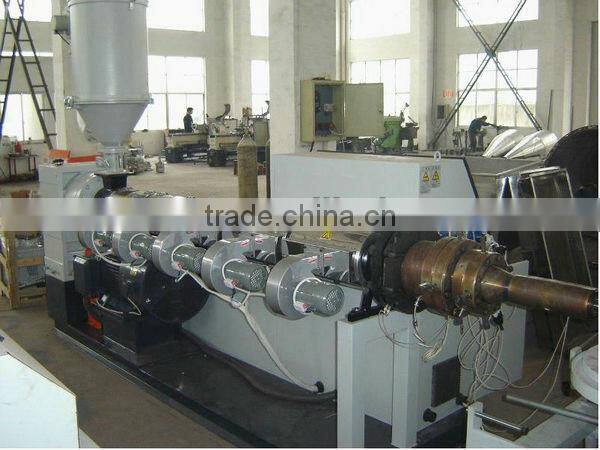

Plastic double wall corrugated pipe making machine
Model |
SJ-90/30 |
SJ75/30 |
SJ-65/30 |
SJ-45/30 |
Screw diameter(mm) |
ø90 |
Ø75 |
ø65 |
ø45 |
L/D |
30:1 |
30:1 |
30:1 |
30:1 |
Output(kg/h) |
200 |
150 |
100 |
40 |
Total power(kw) |
120 |
100 |
80 |
50 |
Pipe range(mm) |
ø110-ø200 |
Ø65-ø110 |
ø16-ø75 |
ø8-ø50 |
Haul off speed(m/min) |
10 |
10 |
10 |
15 |
Capacity annually(1okm) |
150 |
150 |
150 |
150 |
Plastic double wall corrugated pipe making machine
- 1. The production line is configured single screw extruder and grooved feed barrel, which ensures extruding in high efficiency.

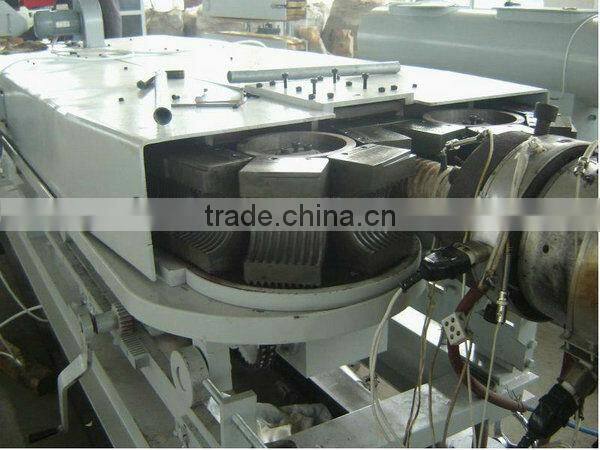

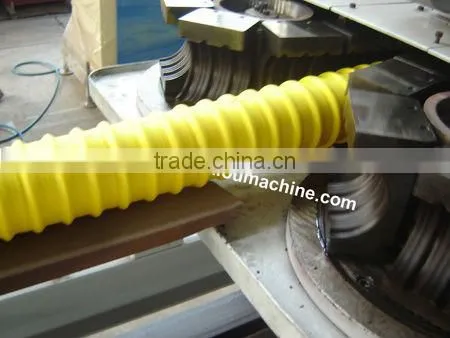

- 2. Corrugated forming system with strong cooling ability ensures constant production with high speed.
- 3. The mould surface is nitrided and polished. A wall thickness-regulating device is equipped in die lip to be suitable for production of different raw materials and ring resistance materials.
- 4. Advanced on line socketing function lowers the investment and increases the efficiency.
- 5. The line adopts SIEMENS PLC computer controlled system with touched screen man-machine interface, which guarantee automatic and reliable operator.
double wall corrugated pipe making machine
double wall corrugated pipe making machin
