Specifications
HDPE Corrugated Pipe Extrusion MachineRound pipe and flat pipe are available.
This line has filled the technical gap

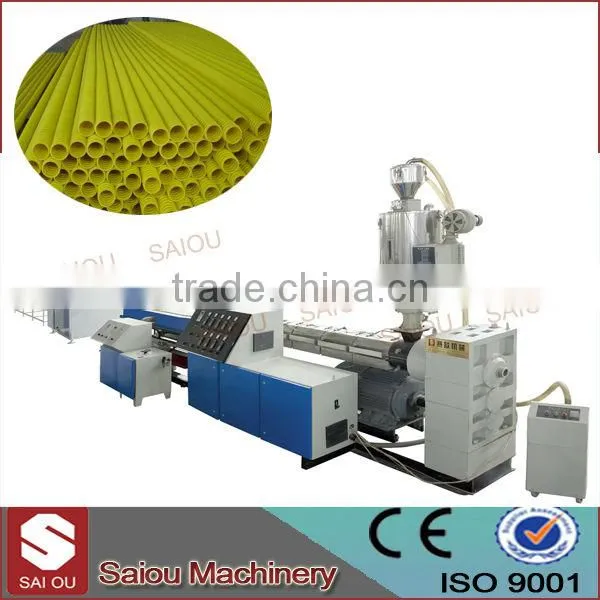

HDPE prestressed corrugated pipe extrusion machine
As a new type of holed mateial, prestressed single wall corrugated pipe has many advantages compared with metallic corrugated pipe. It’s acid resistance, alkali resistant, it has good sealing property, there is no seepage for water or paste, its rigidity is rather high. Its frictional coefficient is small. It is ageing proof, electric erosion proof, it has good soft flexibility. It can’t be easily broken by a digging bar. It is convenient for connection in construction. So it has overcome all shortcomings of traditional metallic corrugated pipes.
Round pipe and flat pipe are available.
This line has filled the technical gap in this field in China.
Pipe diameter range: 50-160 mm

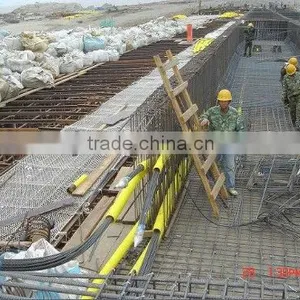

The corrugated pipes widely used in concrete project for building highway overpass, the viaduct, railway bridges, etc.
This extrusion line can make PP, PE, EVA single wall corrugated pipe By replacing the mold and module.
Composition of the production line |
Model
|
Motor power(kw) |
Weight(kg)
|
Quantity
|
Characteristics
|
Single screw extruder |
SJ65/28, SJ90/28 |
22,25 |
2500,3000 |
1 |
High efficient extruding
|
Machine die head |
|
|
|
|
Complete cooling system |
Pipe forming machine |
BW-I,BW-II,BW-III |
2.2,4,5.5 |
19000 |
1 |
Specification:50-160mm |
Pipe cutting machine |
STYF-160 |
2.2 |
4500 |
1 |
Cutting range: 20-160mm |
Mould cooler |
SML-7F |
10MP |
420 |
1 |
Rapid cooling mould |
Hopper drier |
STG-U40 |
2.6 |
50 |
1 |
|
Automatic feeding machine |
ZJ200 |
1.1 |
50 |
1 |
Automatic feeding |
Plastic mixing machine |
SH50 |
1.1 |
80 |
1 |
Mixing&colourin raw material |
Plastic crushing machine |
SWP400 |
18.3 |
980 |
1 |
Crush plastic pipes directly. |
