Specifications
double wall corrugated pipe production line1.high efficient
2.good quality corrugated pipe production line
3.energy savin

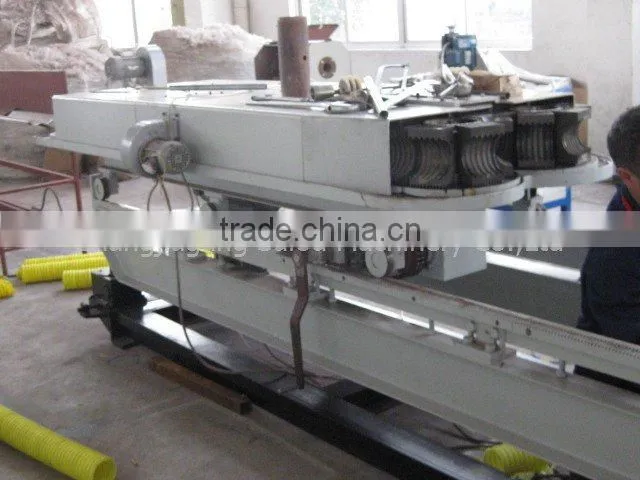

double wall corrugated pipe production line
Prestress plastic Corrugated Pipe Production Line
corrugated pipe production line
corrugated pipe production line STRUCTURAL FEATURE
1.Equipped with two high-efficient single screw extruders and notching machine barrel to ensure effective extrusion of different materials for two walls.
2.Highly effective cooling system can ensure high speed production in continuity.
3.Nitrogen treated moulds and adjustable wall thickness device can ensure production with different materials and HG degree.
4.Corrugated moulds are made of precisely casted special alloys which can provide high precision and pressure resistance as well as good heat elimination effects.
5.Advanced pipe end expansion functions reduce much investment cost and enhance productive force.
6.The corrugated pipe production line adopts advanced Siemens PLC control system and large liquid crystal screen handling system, which realizes high automation, reliable operation and easy handling.
double wall corrugated pipe production line
Main Technical Parameters | |||||||
TYPE |
PIPE OD(mm) |
MOULD SIZE(mm) |
EXTRUDER |
OUTPUT(kg/h) |
(m/min) |
INSTALLED POWER(kw) |
LINE LENGTHm |
SGB400 |
225- 400 |
225,300400 |
SJ75/33 SJ75/33 |
600 |
5.0 |
480 |
|
SGB600 |
225- 600 |
400, 500 600 |
SJ90/33 SJ75/33 |
800 |
5.0 |
580 |
|
SGB800 |
225- 800 |
500, 600,800 |
SJ120/33 SJ90/33 |
1000 |
3.0 |
750 |
|
