Home > Products > Auxiliary machinery > PE PVC plastic pipe vacuum calibration tank
PE PVC plastic pipe vacuum calibration tank
- 20 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | AUTO | Place of Origin: | Jiangsu, China |
Brand Name: | SAIOU | Model Number: | SO vacuum calibration tank | Voltage: | 380-415V |
Power(W): | 16.5KW | Dimension(L*W*H): | 6000*1510*1640mm | Weight: | 500-1000kg |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PE PVC plastic pipe vacuum calibration tank
SAIOU can do different size pipe forming vacuum machine from 16-630mm.
It has fast vacuum control systm to ensure steady vacuum degree .
It has precise temperature control.
its vacuum box and the water pipeline all adopt high-quality stainless steel
the frame fixed on the roller and slideway are driven by the motor.It has high adjustable function and cross location function .
Main technical parameter of pipe vacuum calibration tank :
Model | PE-63 | PE-160 | PE-250 | PE-400 | PE-500 | PE-630 |
Min pipe diameter | 16 | 20 | 50 | 160 | 200 | 315 |
Max pipe diameter | 63 | 160 | 250 | 400 | 500 | 630 |
Effective length | 6 | 6 | 6 | 6 | 6 | 6 |

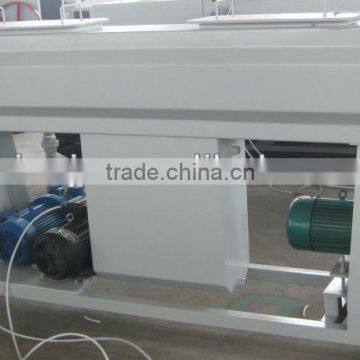

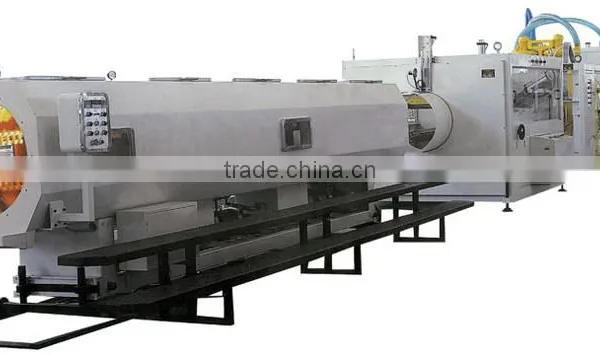

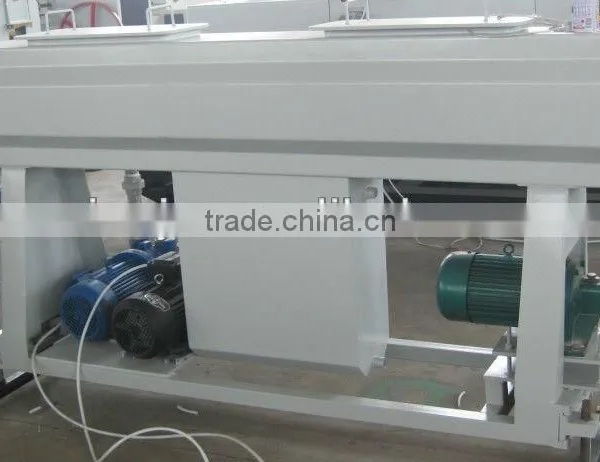

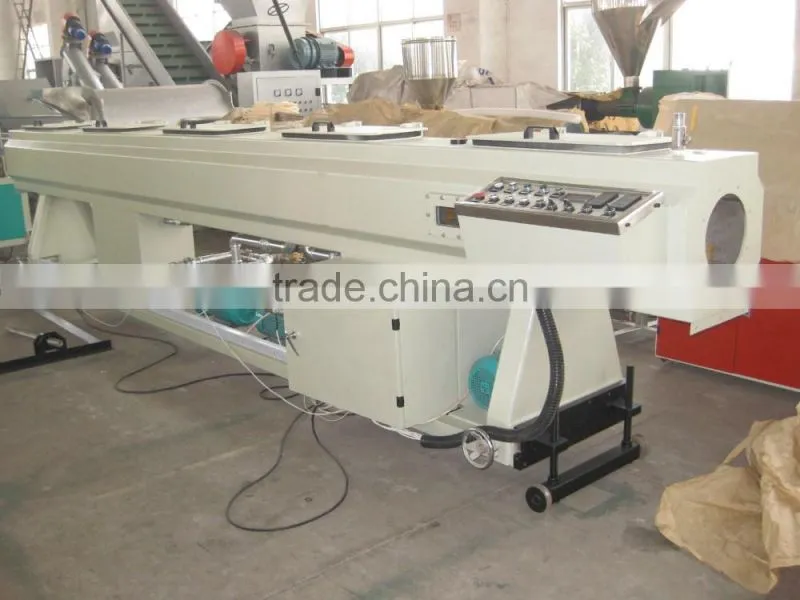

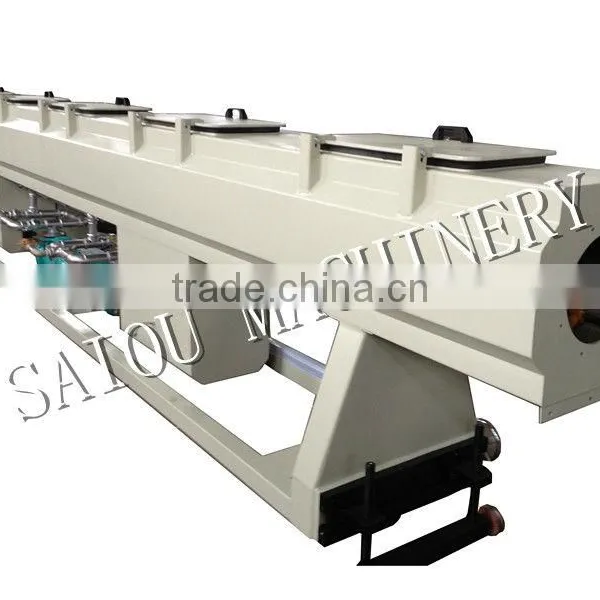

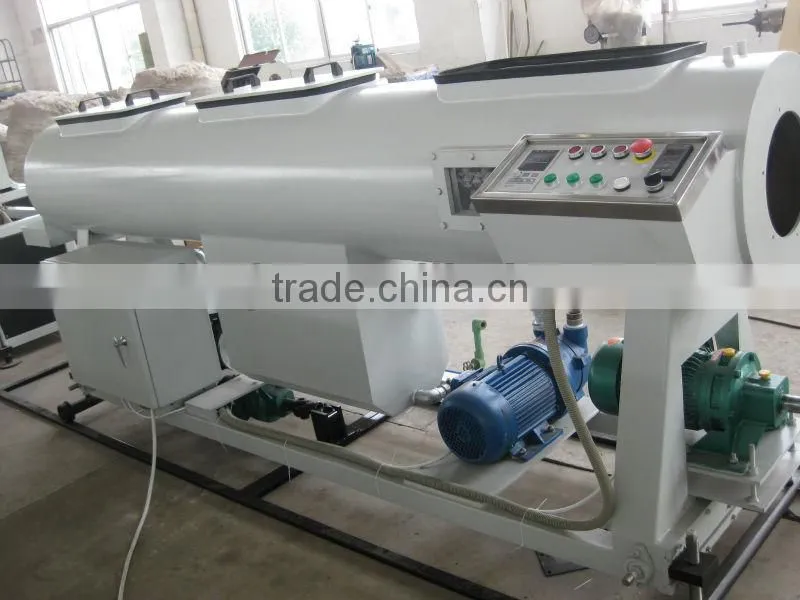

More Photoes will taken for your reference of plastic pipe vacuum calibration tank :
SAIOU company Since 2001, we have nature technical to produce plastic pipe production machines and each part of spare part machine.
