Specifications
double-head bending machine+Servo Motor:MITSUBISHI
+Electric:Schneider
+System:PLC
+Hydraulic Part:Yuken Japan

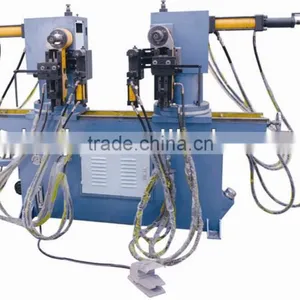

double-head bending machine
Hydraulic Parts: YUKEN Japan
Electric: Schneider
Touch Screen: MITSUBISHI PLC
Application: Metal Pipe
Suitable for the bending of furniture pipes.
Max. bending capacity O.D38mmx2mm
bending radius: 38~210mm
Double-head pipe and tube bending machine SM-38-90degree
| Specification/Model | Unit | DB-38A |
| Max bending capability | mm | Φ38×2 |
| Max bending radius | mm | R200 |
| Min bending radius | mm | R38 |
| Max bending angle | Degree | 190 |
| Max effective distance of mandrel | mm | 170-1900 |
| Control SystemCircular Cold Sawing MachineCircular Cold Sawing Machine | NC Control | |
| Max. Hydraulic Pressure | Mpa | 12 |
| Hydraulic System Control | Solenoid Valve | |
| Oil Tank Capacity | L | 120 |
| Measurement | mm | 2900×1000×1600 |
| Weight of Machine | Kg | 1200 |
PS: OD:Outside Diameter,WT: Wall Thickness.
Tooling accessory: Former Die,Pressure Die,Clamp Die,Wiper Die(Optional),Ball Mandrel(Optional).
- We design and manufacturing the tooling according the tube's specification,so the customer should send us the following tube's specification details:Tube's material and Outside Diameter,Wall Thickness,Bending Radius.-THIS IS VERY IMPORTANT!
- The Min./Max. bending radius could be made to order according the customer's special requirement.
- The length over mandrel could be made to order according the customer's special requirement.
1. The hydraulic circuit is uniquely designed to ensure that work pressure is adjustable, and for
smooth output pressure.
2. Low-frequency oil pump motor features very low noise, even higher efficiency, and extended service life.
3. PLC control system and manual/automatic operating system allow this machine to handle single-side bending independently, for mass production of bent pipes.
4. Bending angles can be micro-adjusted easily and precisely through varying the stroke of the oil cylinder and operation duration.
5. Automatic High Speed Hydraulic Double-bending Pipe Bending Machine
