Specifications
stainless steel pipe bending machine1.DW series pipe bending machine
2.SW series pipe bending machine
3.PS series

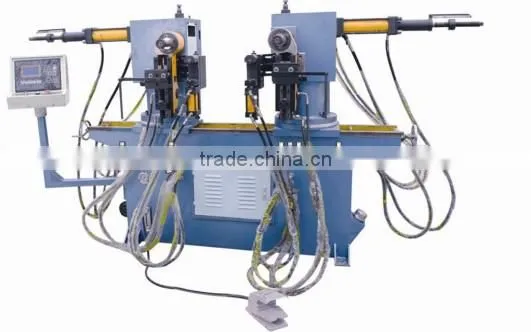

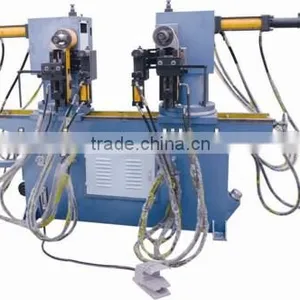

Best China CE stainless pipe bending machine
Company Introduction
Our company owns a lot of high quality technical talents integrating design,
development and production, manufacturing. On the basis of introducing
advanced technology and management method from Germany, Japan, Taiwan,
etc. This company produces DW series pipe bending machine, SW series pipe
bending machine, PS series pipe end shaping machine. MC series metal round
sawing machine, automatic muller, rivet connection machine, and other complete
set of processing equipment. It is ideal machinery for all sort of pipe material,
profiled material, cutting, bending, shrinking & enlarging, rivet connection
processing industries.
Hold out your hands and let’s be friends. Taifulai is wiling to provide you with
most powerful technical guarantee and surmount ourselves and work out
wonders together.
Features:
DW50NCB:
DW: Single-head pipe bending machine
50: Max diameters for the bent pipes
NCB: Semi-automatic with Co-push
1. with hydraulic drive for bending, servo motors for feeding material and turning angles
2. high power and high accuracy with triaxial controlling
3. Chinese/English operation guiding +10.4 inch true color screen + touch screen
4. the processing program, easy, quick and accurate programming
5. small and medium sized machine, used for exhaust pipes, seats, bumpers, sports
equipments and other iron furnitures
Technical Parameters:
Items | Unit | Numerical Value |
Max Bending Capacity | mm | 50×3 |
Range of Bending Radius | mm | 20-280 |
Range of Bending Angle | degree | ≤190 |
Effective Distance of Max Panatrate Core | mm | 2500 |
Bending Speed | deg/sec | 95 |
Bending Accuracy | deg | ±0.15 |
Power of the Motor | Kw | 5.5 |
Hydraulic System Pressure | Mpa | 12 |
Gross Weight | Kg | 980 |
Measurement | mm | 2850×850×1020 |
