Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Mixer > SRL-W Series Horizontal Mixing Unit

SRL-W Series Horizontal Mixing Unit

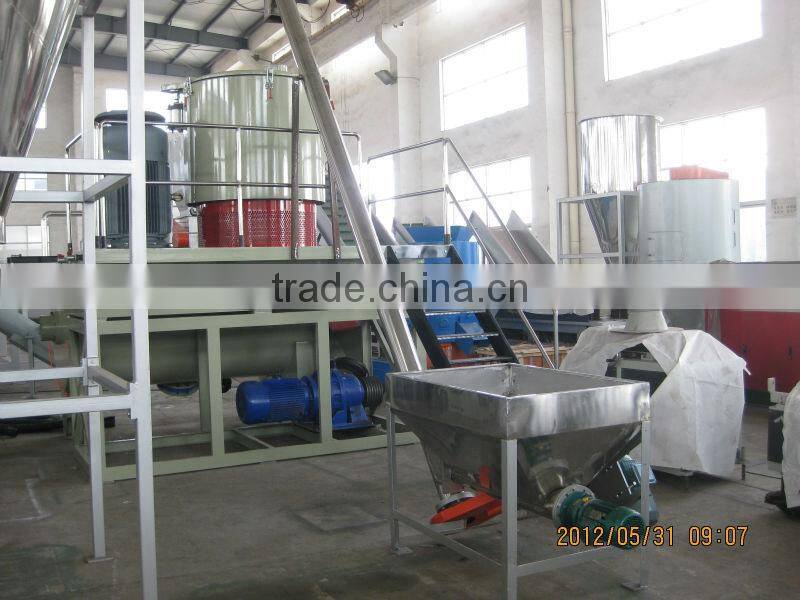

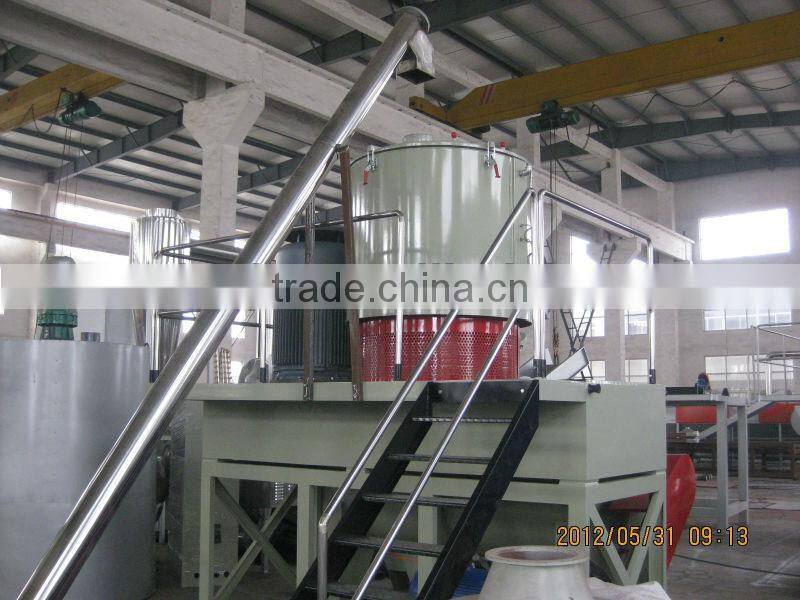

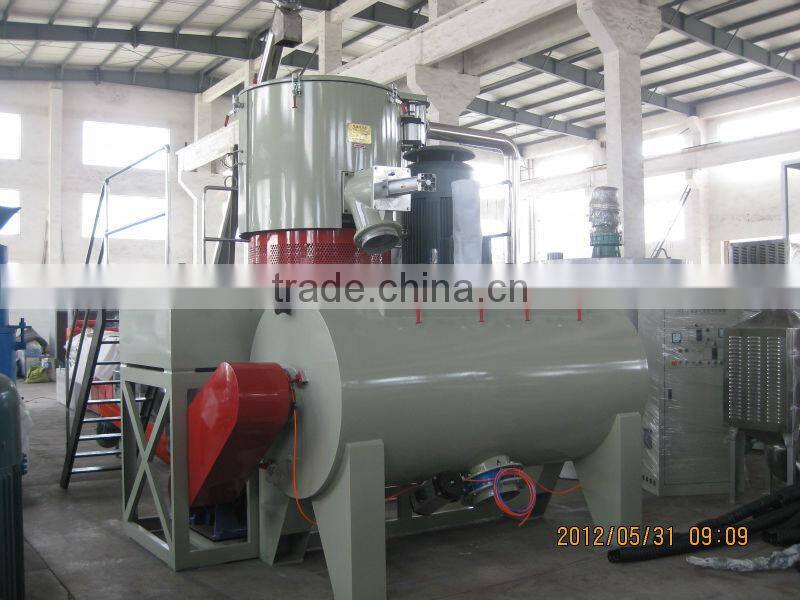

SRL-W Series Horizontal Mixing Unit photo-1

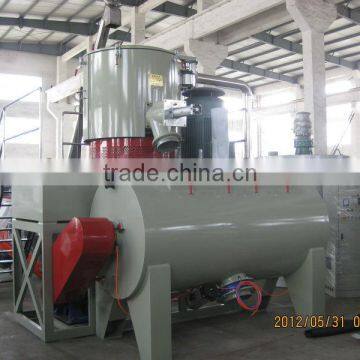

SRL-W Series Horizontal Mixing Unit photo-2

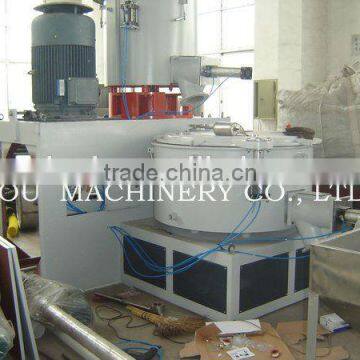

SRL-W Series Horizontal Mixing Unit photo-3

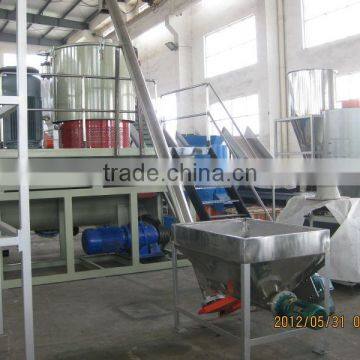

SRL-W Series Horizontal Mixing Unit photo-4
US$ 5,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
mixer
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai Horizontal Mixing Unit
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application mixer
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name saiou
Model Number SO Horizontal Mixing Unit
Voltage 380V
Power(W) 200KW
Dimension(L*W*H) 2500*2100*3800 Mm
Weight 500kg
Certification CE/ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 Horizontal Mixing Unit.

The unit is developed through introducing, digesting and absorbing foreign advanced technology. The vacuum mixing principle is adopted in mixing materials. The electric meters all adopt imported famous ones and adopt PLC program control, It has advantages, such as high auto level, fast mixing, its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especial the blades of its cooling machine adopt the most advanced screw stirring structure in the world; there is nodeal angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly; its mixing efficiency has reached foreign advanced level.



Main Technical parameter

SRL-W

HEAT/COOL

HEAT/COOL

HEAT/COOL

HEAT/COOL

Capacity(L)

300/1000

500/1500

800/2500

800X2/4000

Effective

Capacity(L)

225/700

330/1000

600/1500

1200/2700

Stirring speed(rpm)

475/950/80

430/860/70

370/740/60

350/700/65

Heating way

Electric/self-friction

Cooling way

water cooling

Mixing time

(minute)

8-12

8-15

8-15

8-15

Motor power(KW)

40/55/7.5

55/75/15

83/110/22

83/110X2/30

Weight(kg)

3300

4200

5500

8000







 SRL-W Series Horizontal Mixing Unit



SRL-W Series Horizontal Mixing Unit



SRL-W Series Horizontal Mixing Unit



SAIOU Certifications

SAIOU did export business since 2006,so we have the certifications which suit for shipping our products: plastic crushing washing drying machine, plastic pelletizing machine, plastic pipes production line ,shredders ,all include our machines.And we also have quality certification.

Our machines export to USA, RUSSIA,BULGARIA,CHILE,MALAYSIA,CAMBODIA,VIETNAM,KOREA,MEXICO,INDIA,BANGLADESH etc, too much places.

SRL-W Series Horizontal Mixing Unit

Packaging & Shipping
  • Film package: we used simple package suit for shipping.
  • Wooden package: If you want to wooden package, you should paied the extra cost.

SRL-W Series Horizontal Mixing Unit

Our Services

Do you know our service?

  • The machine inspection before delivery in SAIOU MACHINERY When you come to our factory .Check everything is it ok .

  • Free of charge of some necessary spare part.

  • One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.

  • 1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.

  • We accept 30% TT down payment, 70% TT or LC at sight before delivery.

  • Film packing or plywood packing suit for sea shipping.

Company Information

Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.

SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.

Advanced equipment, mature techniques and strict testing system guarantee high quality products. Saiou Machinery trust our principle of “QUALITY IS OUR CULTURE” Saiou would like to cooperate with you for a longer business in near futures..

Welcome to SAIOU MACHINERY! We are always here.
