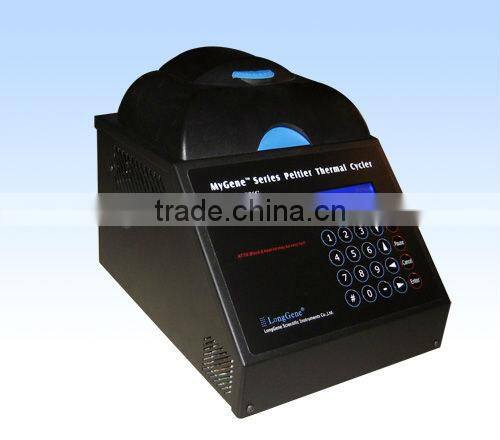

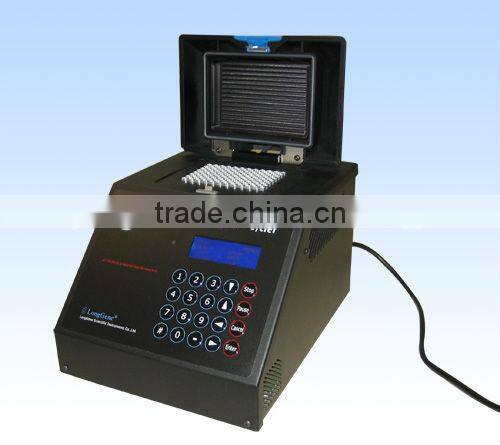

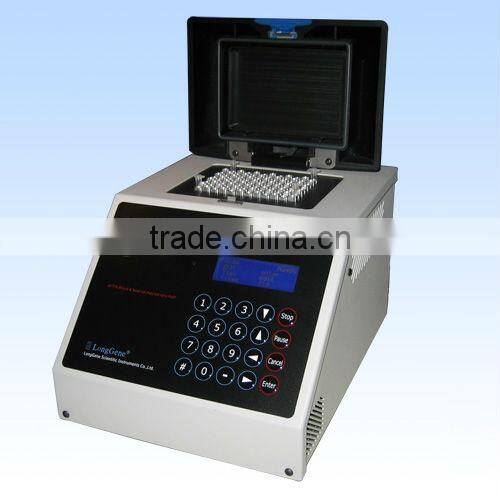

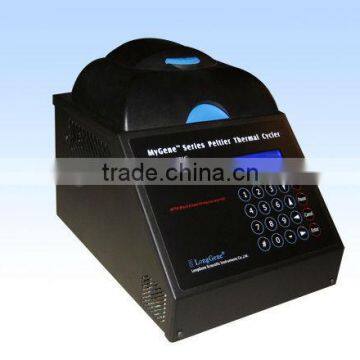

MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine

MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine thumbnail-1
MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REIGN
Model Number:
MG25+ MG96+/MG48+ MG96L
Contact Supplier Request Quote Chat Now
Hangzhou Reign Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name REIGN
Model Number MG25+ MG96+/MG48+ MG96L

Specifications

1. Compare PCR product
2. Thermal Cycler
3.Multi-purpose Series

MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine

Model MG25+
Block Capacity 25wells×0.2ml+16wells×0.5ml
Technology Peltier-based
Display Large-size Blue LCD
  Temperature
Block Temperature Range 0°C~99°C
Max. Heating Rate 3°C/s
Max.  Cooling Rate 2°C/s
Temperature Uniformity ≤±0.3°C
Temperature Accuracy ≤±0.3°C
Display Resolution 0.1°C
Mode of Temperature Control Sim-tube & Block mode
Ramping Rate Adjustable 0.1°C ~ 3°C
  Programming
Max. no. of programs 125 Typical Programs
Max. No. of  Cycle 99
Time Increment/Decrement 1~60s   Long PCR available
Temp. Increment/Decrement 0.1~10.0°C   Touchdown PCR available
Auto Pause Yes
Auto Restart Yes
Hold at 4°C Yes, Forever
Running Status Display Yes
  Heated Lid
Heated Lid Temperature 105°C
Height of Heated Lid Stepless Adjustment
Auto Shut-Off When Block Temp. is below 30°C or after finish running
  Other Features
Power Supply Range Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption Max.:350W
Dimension(L×W×H) 267×220×253mm
Net Weight 6.5kg



 MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine



Model MG48+
Block Capacity 48wells×0.2ml+48wells×0.5ml
Technology Peltier-based
Display Large-size Blue LCD
  Temperature
Block Temperature Range 0°C~99°C
Max. Heating Rate 3°C/s
Max.  Cooling Rate 2°C/s
Temperature Uniformity ≤±0.2°C
Temperature Accuracy ≤±0.2°C
Display Resolution 0.1°C
Mode of Temperature Control Sim-tube & Block mode
Ramping Rate Adjustable 0.1°C ~ 3°C
  Programming
Max. no. of programs 125 Typical Programs
Max. No. of  Cycle 99
Time Increment/Decrement 1~60s   Long PCR available
Temp. Increment/Decrement 0.1~10.0°C   Touchdown PCR available
Auto Pause Yes
Auto Restart Yes
Hold at 4°C Yes, Forever
Running Status Display Yes
  Heated Lid
Heated Lid Temperature 105°C
Height of Heated Lid Stepless Adjustment
Auto Shut-Off When Block Temp. is below 30°C or after finish running
  Other Features
Power Supply Range Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption Max.:500W
Dimension(L×W×H) 315×240×275mm
Net Weight 9.8kg



MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine



Model

 MG96G
Sample Capacity 96wells×0.2ml+77wells×0.5ml
Technology Peltier-based
 LCD Display Large-size Blue LCD
  Gradient
Gradient Accuracy ≤±0.3°C
Column Uniformity  ≤±0.3°C
Gradient Range 30°C~99.9°C
Temperature Differential Range 1°C~30°C
Gradient Capacity 12 Columns(Vertical)
  Temperature
Block Temperature Range 0°C~99°C
Max.  Heating Rate 3°C/s
Max.  Cooling Rate 2°C/s
Temperature Uniformity ≤±0.2°C
Temperature Accuracy ≤±0.2°C
Display Resolution 0.1°C
Mode of Temperature Control  Sim-tube & Block mode
Ramping Rate Adjustable 0.1°C ~ 3°C
  Programming
Max. number of Programs  125 Typical Programs
Max. No. of  Cycle 99
Time Increment/Decrement 1~60s    Long PCR available
Temp. Increment/Decrement 0.1~10.0°C   Touchdown PCR available
Auto Pause Yes
Auto Restart Yes
Hold at 4°C  Yes, Forever
Running Status Display  Yes
  Heated Lid
Heated Lid Temperature 105°C
Height of Heated Lid Stepless Adjustment
Auto Shut-Off When Block Temp. is below 30°C or after finish running
Power Supply Range Wide Range Power Supply 175V ~ 275V,50-60Hz
 Power Consumption  Max.:500W
Dimension(L×W×H) 315×240×275mm
Net Weight  9.8kg
Additional In-Situ Function  A set of additional in-situ plate available for In-situ PCR experiments.

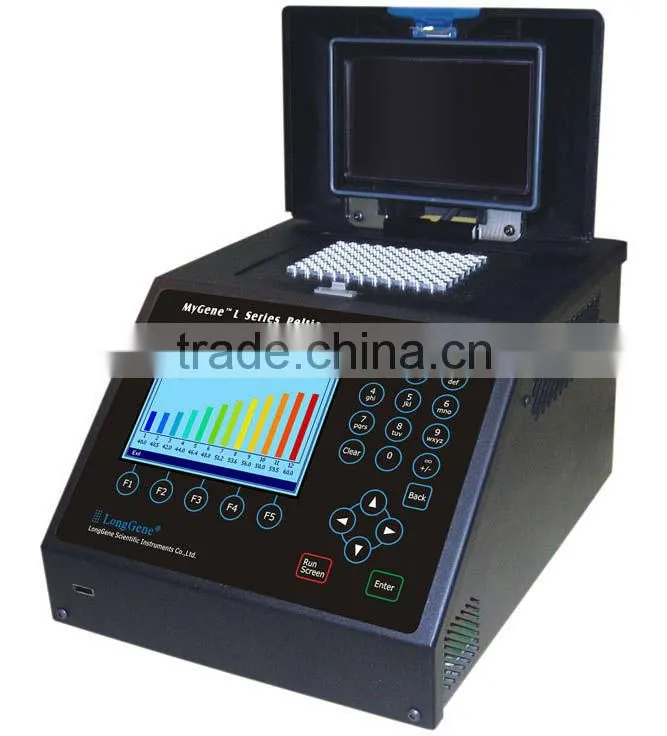

MG25+ MG96+/MG48+ MG96L Peltier-based PCR Machine



Model L96G/Y (Former Model: MGL96G/Y)
Block Capacity 96wells×0.2ml+77wells×0.5ml
Heating and Cooling Technology Newest Generation Peltier-based Technology
Sample Capacity 0.2ml PCR tubes,0.5ml PCR tubes,Strips, 96wells PCR plate, In-situ Plate
LCD Display 5.7" graphical color display of protocols (320×240 pixel, 256 color)
Language Bilingual:English and Chinese
USB flash drive Unlimited with USB flash drive expansion
Communications USB2.0  and RS232
Additional In-Situ Function Available for 4 slides in one time
  Temperature
Block Temperature Range 0°C~100°C
Max.  Heating Rate 4°C/ (s)
Max.  Cooling Rate 3.5°C/(s)
Temperature Uniformity ≤±0.2°C(30 sec after reach Temperature point set)
Temperature Accuracy ≤±0.2°C(35°C-100°C)
Display Resolution 0.1°C
Mode of Temperature Control Sim-tube & Block mode
Ramping Rate Adjustable Yes
  Gradient
Gradient Accuracy ≤±0.3°C(35°C-99.9°C)
Column Uniformity ≤±0.3°C(30 sec after reach temperature point set)
Gradient Range 30°C~99.9°C
Temp. Differential Range 30°C  Max. 30°C
Gradient Capacity 12 Column(Vertical)
  Programming
Max. number of programs Max. 120 programs onboard,Unlimited storage of protocols with USB flash drive
 Max. Step 30 Steps, multiple nesting cycle available
 Max. Cycle 100 Typical Cycles  (multiple nesting 60000 cycles)
Time Increment/Decrement 1~120 sec,Long PCR available
Temp. Increment/Decrement 0.1~10.0°C,Touchdown PCR available
Auto Pause Yes
Auto Restart Yes
Hold at 4°C  Yes, Hold Forever
Running Status Display  Yes
Real Time Display Yes, Battery Buffered
  Heated Lid
Height of Heated Lid Steplessly Adjustable Lid, accomodates a wide range of PCR tubes and plates
Heated Lid Temperature 30°C~105°C adjustable
Auto Shut-Off When Block Temp. is below 30°C or after finish running
Power Supply Range Wide Range Power Supply 175V ~ 275V,50-60Hz
Power Consumption Max. :600W
Approvals ISO 9001:2000, CE
Dimension(L×W×H) 335×240×270mm
Net Weight 9.8kgs
