Specifications
water well drilling rig for sale1.strong delivery torque
2.easy to operate,free maintenance

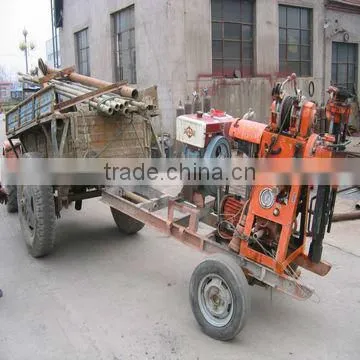

3.easy to move,practical
4.ISO9

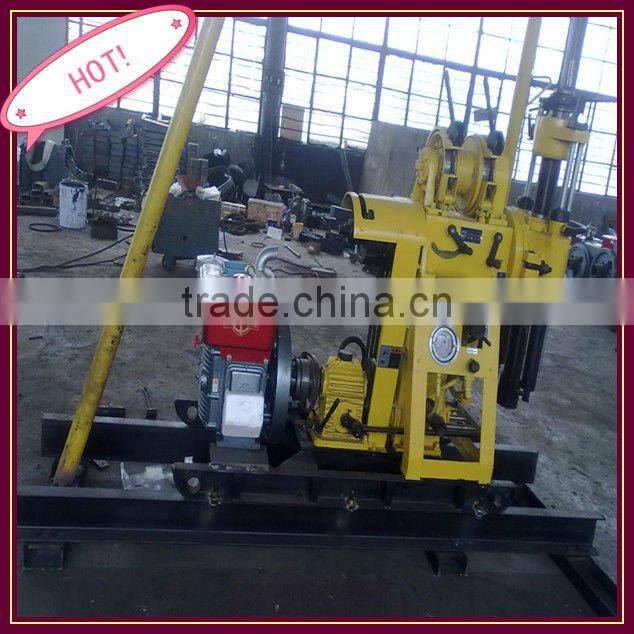

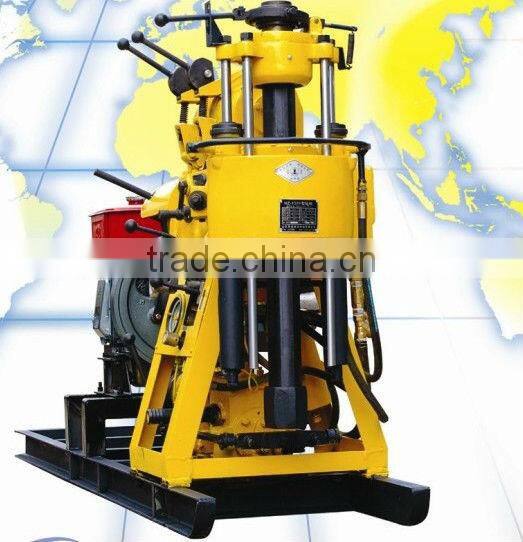

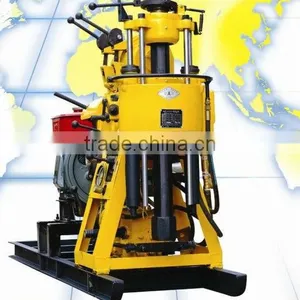

with ISO9001 small water well drilling rig for sale
1.Application of water well drilling rig for sale

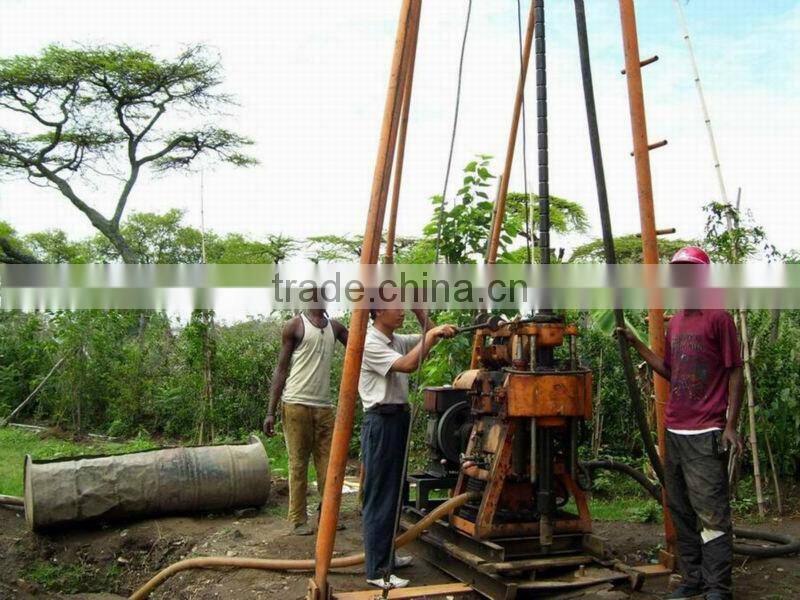

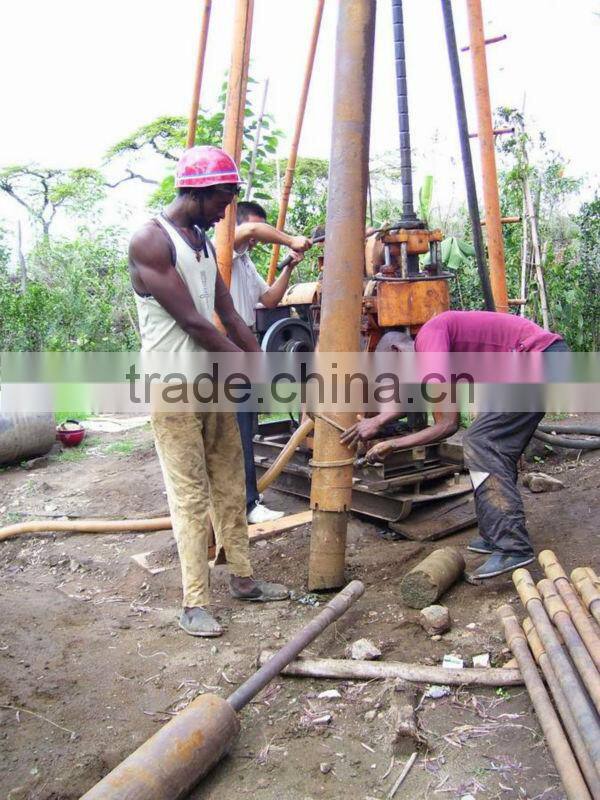

water well drilling equipment is mainly applied to water well drilling, geological general investigation and exploration, road and tall building basic exploration, kinds of hole in concrete structure, river levees, roadbed grouting hole drilling and direct grouting, and earth central air conditioner,ect.
2.Features and Advantages of water well drilling rig for sale
1. This drilling machine gained 3 national practical new-type patents invention.
2. This drilling rig is to be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong
rigidity and large transer torque.
3. To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.
4. To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.
5. To be equipped with speed reducer and mud pump, being integrated structure.
6. The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.
7. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of
construction efficiency.
8. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
3. Technical Parameter of water well drilling rig for sale
Unity machine parameter | |
Drilling depth | 130m |
Maximum open hole caliber | 260mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90~75° |
Drill weight (No include power) | 510 560kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed | 142285570r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 960kg |
Single line lifting speed | 0.41 0.82 1.64m/s |
Tightrope caliber | 27m |
Mud pump | |
Type | Horizontal single urn twin-action |
Displacement | 95/77L/min |
Diesle engine | s1105 20HP |
Electric motor | Y160M-4 11kw 1440r/min |
Maximum pressure | 1.2Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 30mm |
Water to exit caliber | 25mm |
Triangle conveyer belt | B1575mm |
Suit scope | |
project of

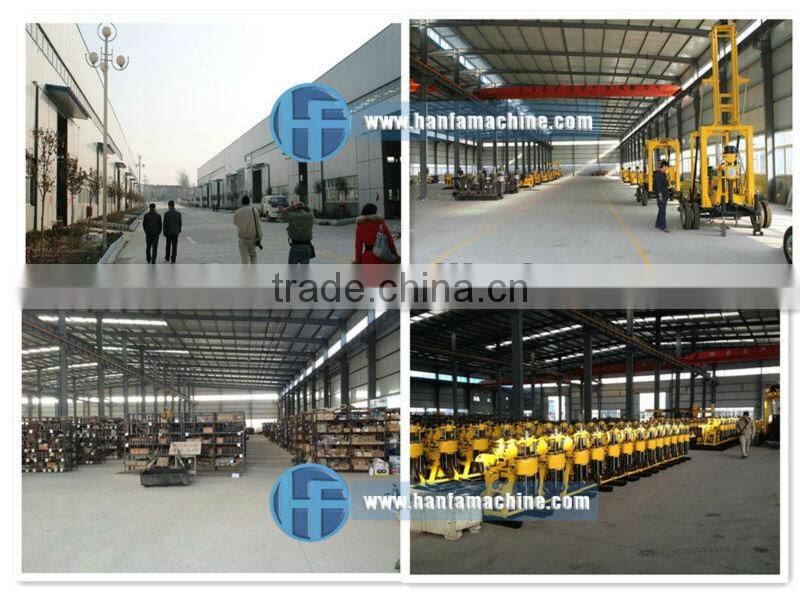

About us
