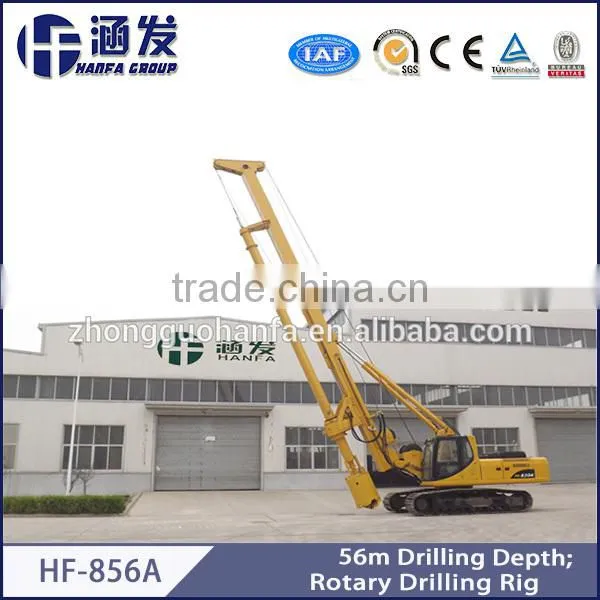

HF856A Efficiency Rotary Drilling Rig Rotary CE&ISO Certification
US$ 12,100 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF856A Rotary Piling Rig for Rode Bridge Foundation Construction With ISO & CE Certification 38tons Max Piling Depth 56mUS$ 12,100 - 15,000MOQ: 1 Set -
HF168 Rotary Piling Machine 38 Tons Large Torque for Sale High Quality Big Torque 165KNmUS$ 12,100 - 15,000MOQ: 1 Set
-
HF-YD7 Functional Full Hydraulic Piling Driver With Hammer for Sale ISO & CE Certification Engineer Oversea Service okUS$ 50,000 - 80,000MOQ: 1 Set
-
HF168 Rotary Piling Machine Forfoundation Constructure Max Piling Depth 56mUS$ 12,100 - 15,000MOQ: 1 Set
-
HF525 Small Rotary Drilling Rig for Sale Used in Foundation Constructure With CE & ISO CertificationUS$ 12,100 - 15,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Henan, China
Brand Name
HF
Model Number
HF856A
Voltage
380V
Power(W)
112KW
Dimension(L*W*H)
Working dimension 18050x7297x3200mm
Weight
38000KGS
Certification
ISO 9001 : 2000
After-sales Service Provided
Engineers available to service machinery overseas
HF856A efficiency rotary drilling rig rotary drilling machine for piling foundation
Features and advantages:
1. Adopting telescopic mast structure which owns simple structure and kades transportation more convenient.
2. The +- shape axle ned structure is used to fax boom and link arm, boom can adjust around and control the arm,guarantee vertical on rough place.
3. Triangular structure between link arm and amplitude clinder increases the machine stability.
Specification:
| Drilling diameter | 600-1600mm |
| Max drilling depth | 56m |
| Working dimension | 18050x3200x7297mm |
| Transport dimension | 14727x3200x3325mm |
| Machine Weight | 38000KGS |
| Engine model | B5.9-C Cummins (USA) |
| Engine power | 112KW |
| Engine Type | Turocharged direct-injection |
| Rotary drive | Max.torque 80 KN.M |
| Rotation speed | 1-22 RPM |
| Crowd clinder Max.push | 150 KN |
| Max.pull | 100 KN |
| Max.stroke | 2000mm |
| Main winch Max.line pull | 120KN |
| Max.line speed | 70m/min |
| Rope diameter | 24mm |
| Auxiliary winch Max.line pull | 60KN |
| Max.line speed | 50m/min |
| Rope diameter | 18mm |
| Mast inclination Free adjustment forward/backward | 0-93° |
| Free adjustment left/right | +/-3° |
| Electronic management system On car printer | Available |
| Long distance monitor system | Available |
| Drilling record system | Availalble |
| Chassis modality | Customizable |
| Max reavel speed | 2.0km/h |
| Min ground clearance | 500mm |
| Track width | 800mm |
| Hydraulic system pressure | 300bar |
| If any not satisfied | Customizable |
