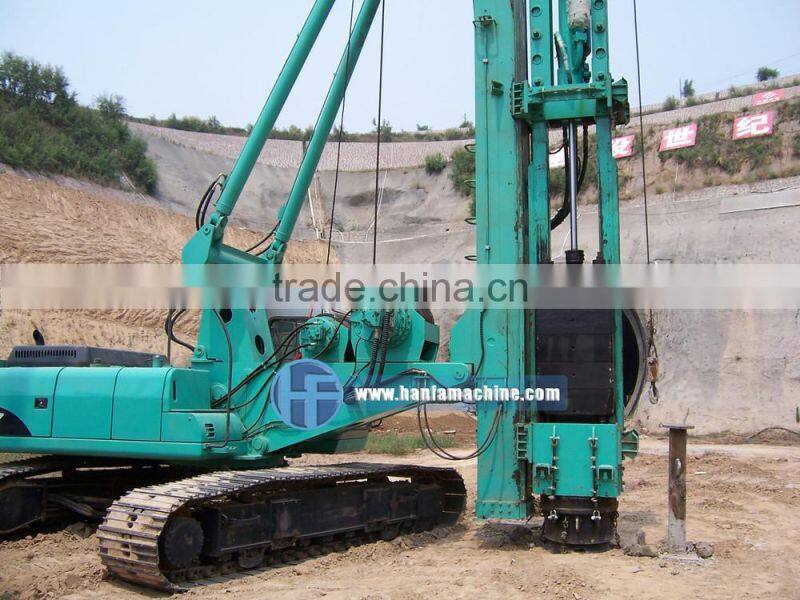

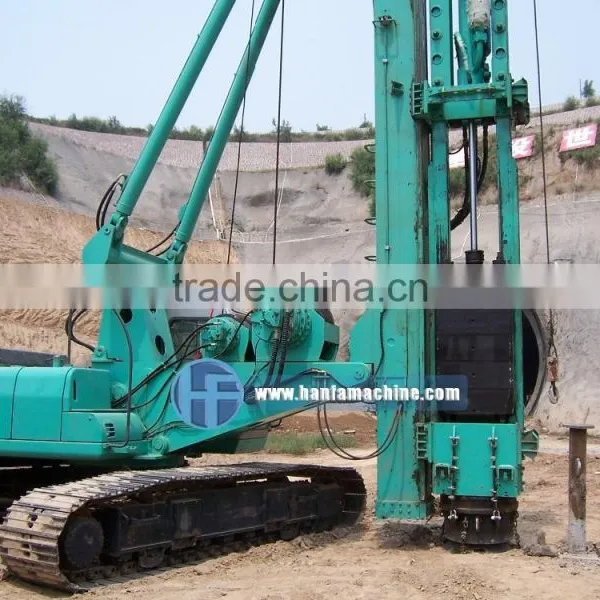

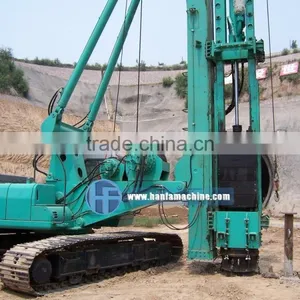

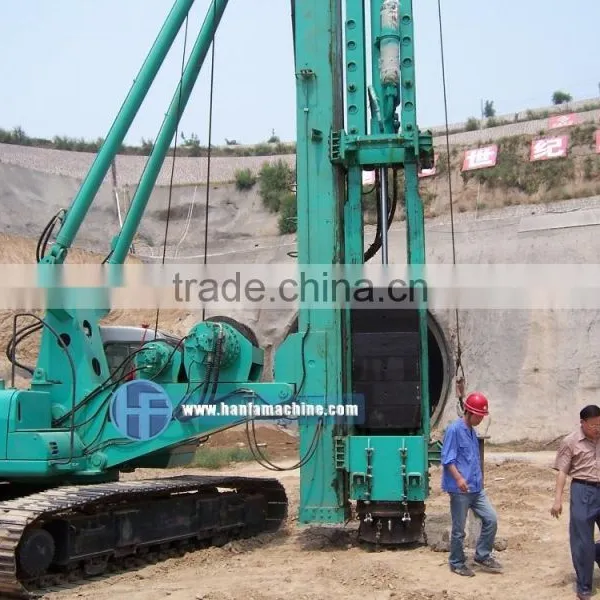

HF-YD7 functional full hydraulic pile driver for sale ISO & CE certification engineer oversea service ok
HF-YD types of full hydraulic functonal hammer is our company launch a type of piling machinery in 2010. According to hammer weight, we have HF-YD5, HF-YD6 and HF-YD7 types of piling driver il cylinder can automatically adjust the oil cylinder trip and realize thump and tip-tap. When dismantle hydraulic piling the hammer and replace hydraulic power head, pressurization cylinder, scaleable Kelly bar and broach, it will get full hydraulic rotating drill of 65m-deep drilling.
Diameter | 500mm | |
Max drilling depth | 4 joints | —————— |
5 joints | —————— | |
Overall measurement | Working dimension | 8042X3600X21250(mm) |
Transport dimension | 16460X2800X3300 (mm) | |
Rotary drive torque | —————— | |
Rotary drive speed | —————— | |
Crowd cylinder | Max push | —————— |
Max pull | —————— | |
Max stroke | —————— | |
Main winch | Max line pull | 140kN |
Max line speed | 70m/min | |
Auxiliary winch | Max line pull | 60kN |
Max line speed | 60m/min | |
Engine | Rated power | 133kW/2100 |
Type | Cummins 6BTA5.9-C178 | |
Electronic management system | Long distance monitor system | Available |
Drilling record system | Available | |
On car printer | Available | |
Hydraulic system pressure | 30mpa | |
Chassis | Chassis modality | telescopic |
Max travel speed | 2.5km/h | |
Min ground clearance | 330mm | |
Track width | 800mm | |
Mast inclination | Forward / backward | 90° |
Left / right | ±3° | |
Hammer weight | 7000kg | |
Hammer stroke | 500-1500mm | |
Impact frequency | 30time/min | |
Max impact force | 105kN·m | |
Whole machine weight | 47000kg | |
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 15-20 days.
