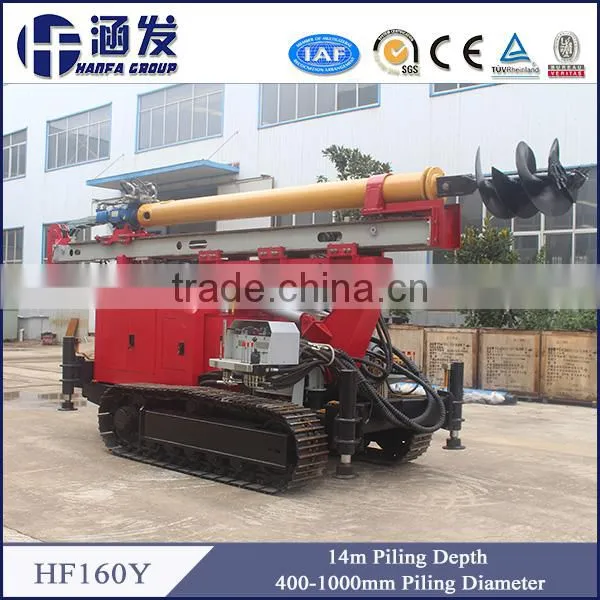

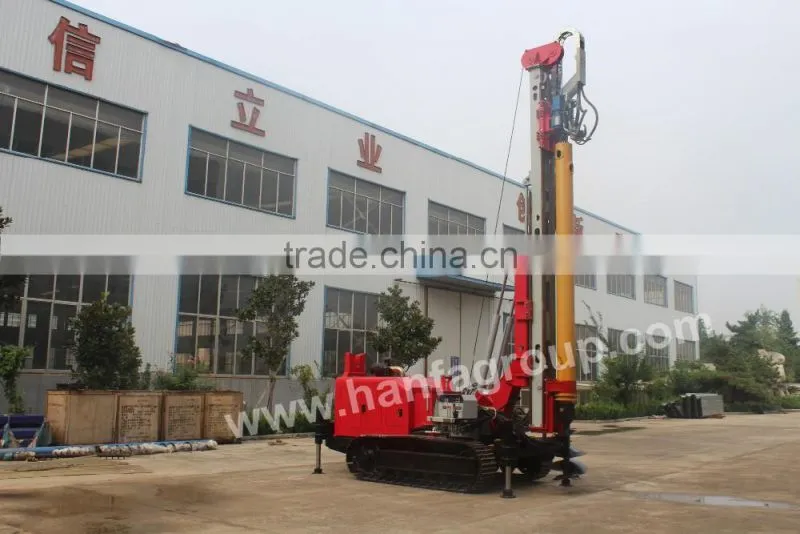

HF160Y Crawler Portable Rotary Bored Pile Drill Rig
Versatile, flexible and high performance machine for micro piles and Kelly Bar applications.
1.Very high extraction force.

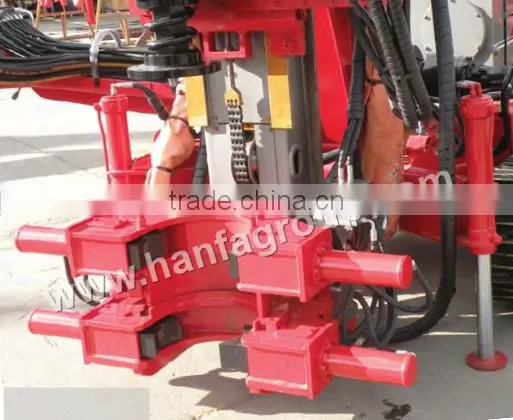

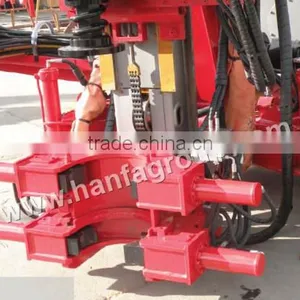

2. Large diameter hydraulic joint breaker;
3.Compact equipment easy to transport on trucks.
4.Capacity to drill with telescopic Kelly.
5.Mast extension suitable to place pile cages with auxiliary winch.
6.Suitable to low clearance or tight access jobsites.
7.Capable to handle large diammeter down the hole hammer (15”)
APPLICATIONS: Micro piles, segmented flight auger, jet grouting, bored pile and down the hole hammer.
Technical parameters
| Piling diameter(screw) | 400---1000mm |
| Piling depth(screw) | 14m |
| Bore diameter (DTH hammer) | 115---400mm |
| Bore depth | 400m |
| Installed power | 92KW |
| Pull-down force | 2400kg |
| Extraction force | 9500kg |
| Double clamps minimum diameter | 100mm |
| Winch line pull (effective) | 2500kg |
| Drum diameter | 250mm |
| Rope diameter | 12mm |
| Crawlers overall length | 2800mm |
| Track shoe width | 380mm |
| Overall width | 2100mm |
| Dimension (L*W*H) | 6500*2100*3000mm |
| Total weight | 9600kg |

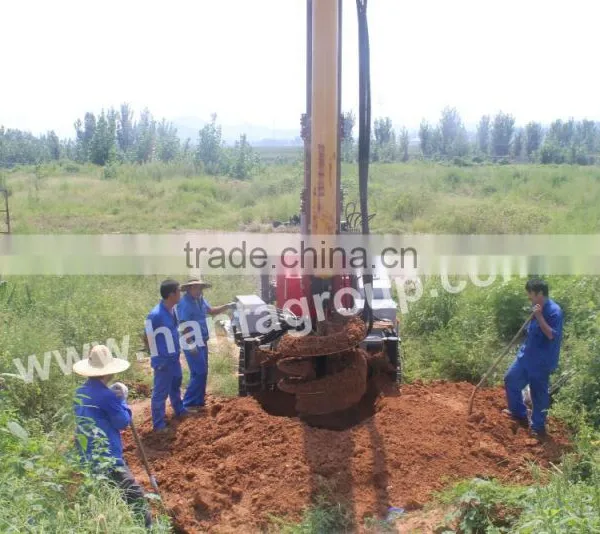

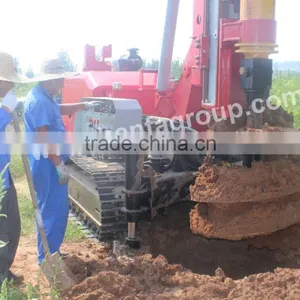

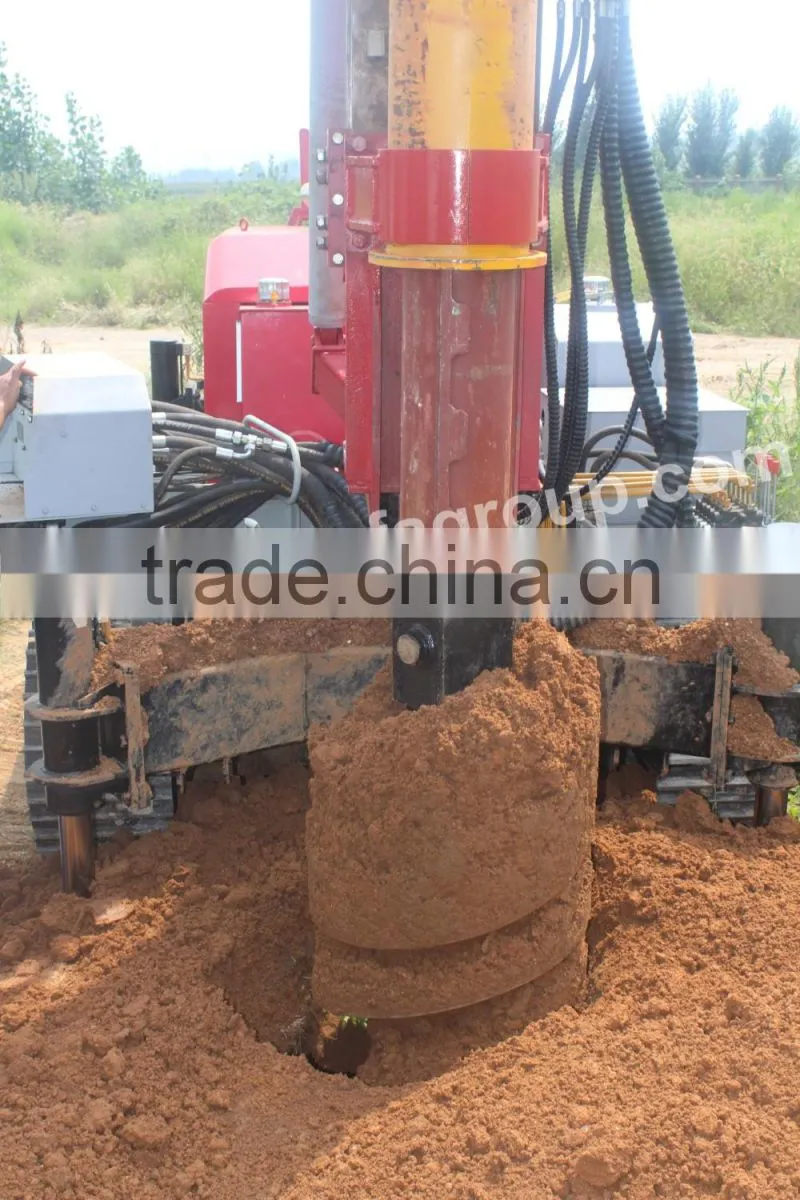

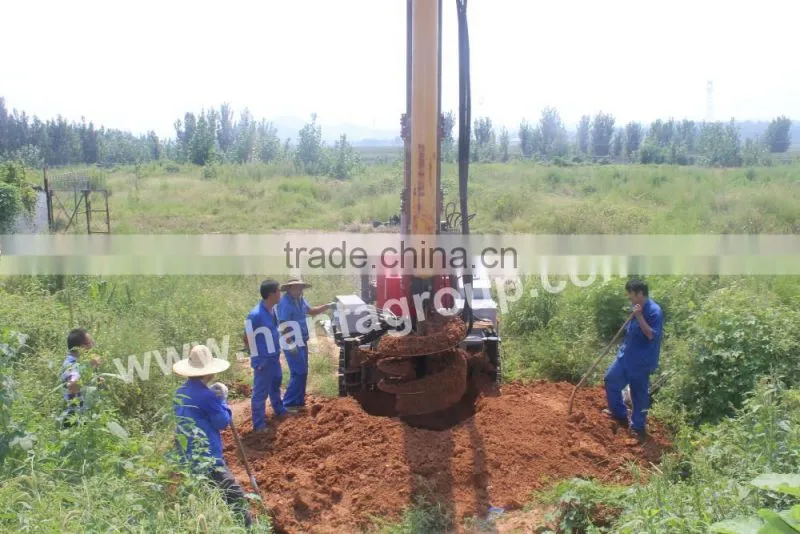

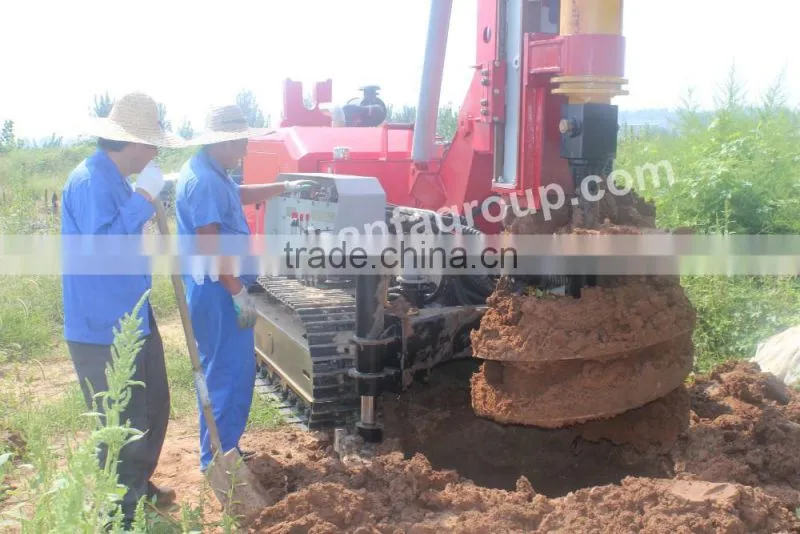

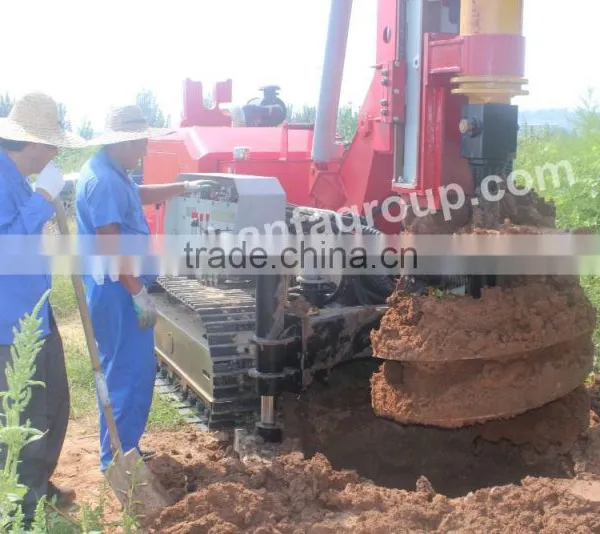

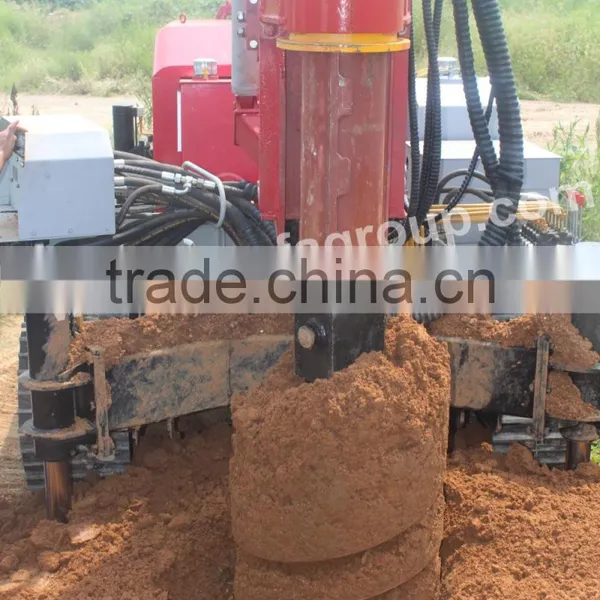

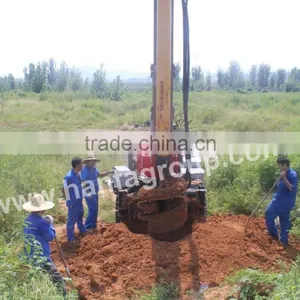

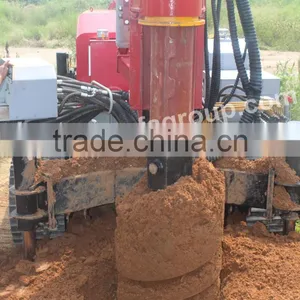

Construction Site
Sales manager:Vincent Guo
Office tel:+0086-371-55019599
Accessories:+0086-371-55019184
Email:admin@
Website:
