Specifications
HF180multi-function drill rigs to various stratums1.max depth 180m
2.1200mm diameter
3.easy to operate
4.stable performance

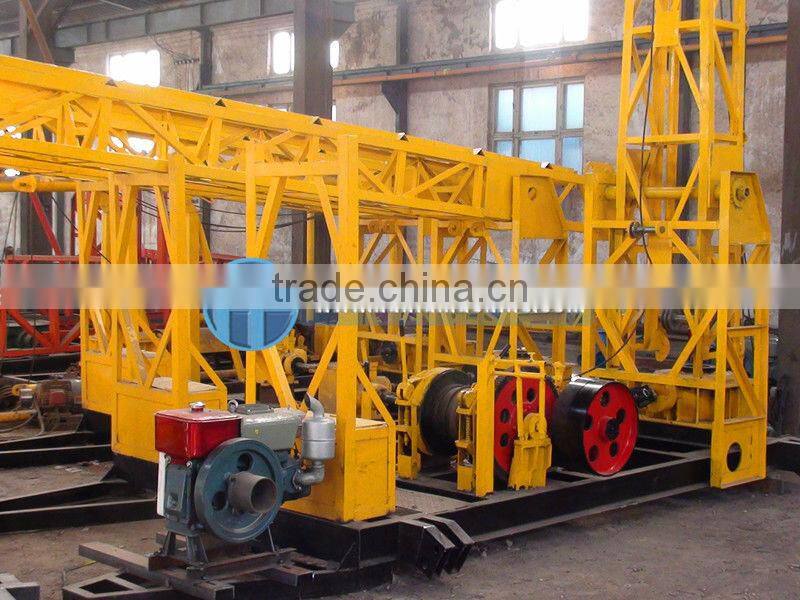

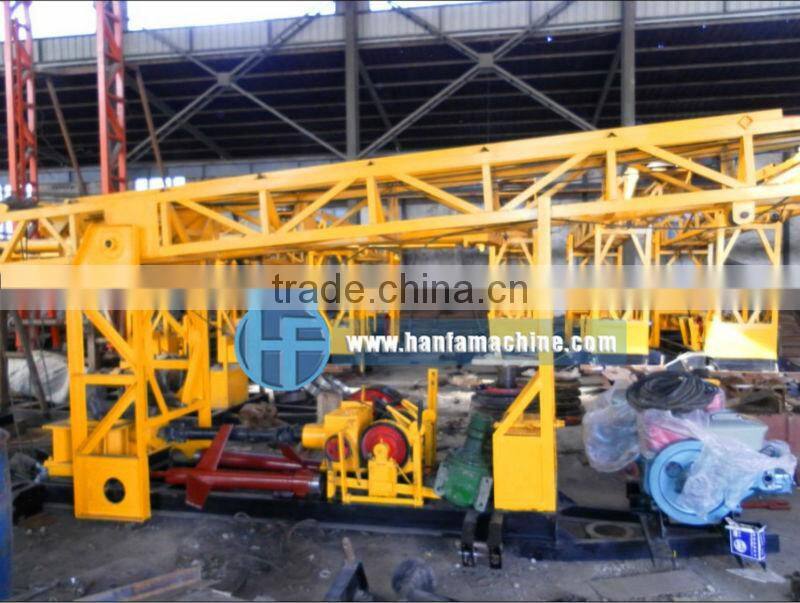

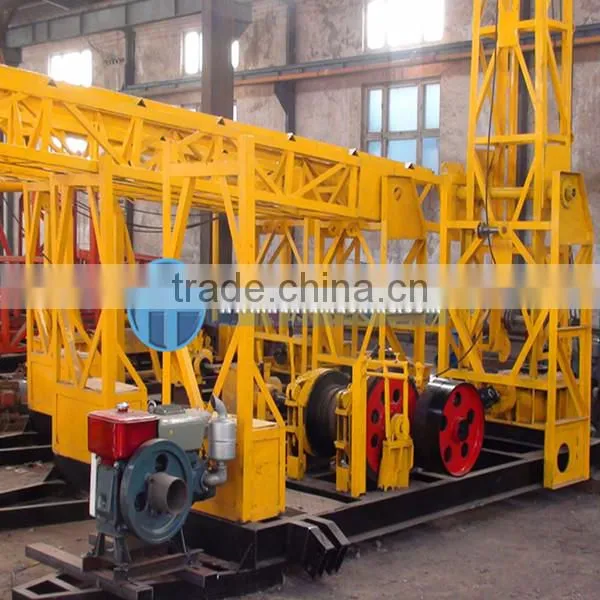

HF-180 multi-function drill rigs to various stratums
This machine is a trailer type machine,it has two tires with one axle under the chassis ,and it weld traction frame and towing ring ,it can be drag by one tractor.
This machine work efficiency is high,drilling footage is seepdy,assist time is short,especially suitable used in shallow well .this machine adopt color tower type combination,and It has drilling tools of motionlink to assure the upright of bore, it has the characteristics of compact structure,easy installation,stable performance,easy operation and maintain ,suitable water well drilling and piling foundation .
The technical parameter:
Max drilling diameter |
Drilling water well :100-600mm Piling :1200mm |
Max drilling depth |
180m |
Max output torque |
2knm |
Driving drilling pipe size |
108×4.5×6000mm |
Drilling pipe size |
108×4.5×4000mm |
Max drilling diamter of turntable |
140mm |
Turntable speed |
55R/min |
power |
7.5KW motor or 12HP diesel engine |
Hoist lifting capacity |
5T |
Overall Dimension |
4800×1700×6500mm |
Main machine Weight |
2200kg |
