Water well drilling rig assistant ,light weight BW200 mud pump for drill water well drilling rig
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | BW200 |
Theory: | Rotary Pump | Structure: | Piston Pump | Usage: | Water |
Power: | Other, diesel engine,20HP | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Other, Water well drilling |
Product Description

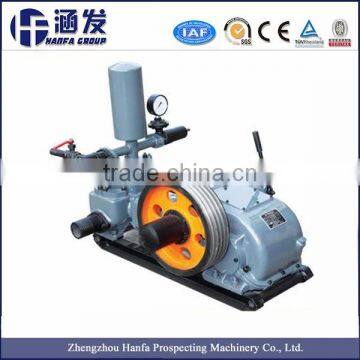

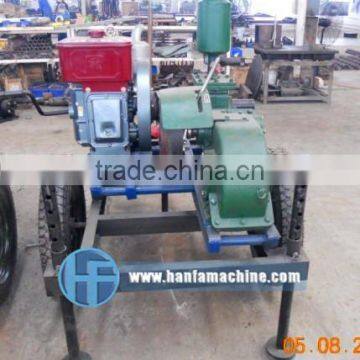

Water well drilling rig assistant ,light weight BW200 mud pump for drill water well drilling rig
Specifications
2,strong capacity
3,horizontal type
4,for water well drill
Model | BW200 |
type | horizontal type |
Number of cylinders | 2 |
Cylinder diameter(mm) | 80;65 |
Piston Stroke(mm) | 85 |
frequency of stroke(times/min) | 145 |
Flow rate(L/min) | 200;125 |
Pressure(Mpa) | 4;6 |
Power input | 14.7Kw/20Hp deisel engine |
Diameter of suction pipe(mm) | 65 |
Diameter of discharge pipe(mm) | 37 |
Overall dimensions (LxWxH) (mm) | 1050×630×820 |
Weight(KG) | 300 |
We supply all kinds of drilling equipment and drilling accessories, such as drilling rigs for water well, geological exploration, coring, sampling, SPTs, balst holes, bore holes, piling, geothermal air conditioner and so on.
Drill rig accessories, such as bits, rods, mud pumps, reamers, joints and so on.
