HF1100Y Water Well Drilling Machine ,latest and Best-selling Drillling Rig

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Certification:

ISO

Place of Origin:

Henan, China

Brand Name:

Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Certification ISO

Place of Origin Henan, China

Brand Name HF

Model Number HF1100Y

Condition New

After-sales Service Provided Engineers available to service machinery overseas

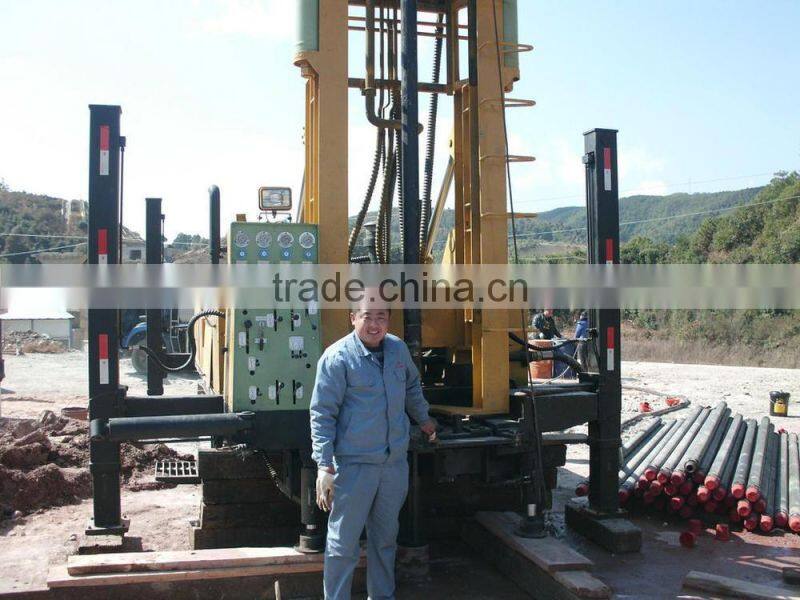

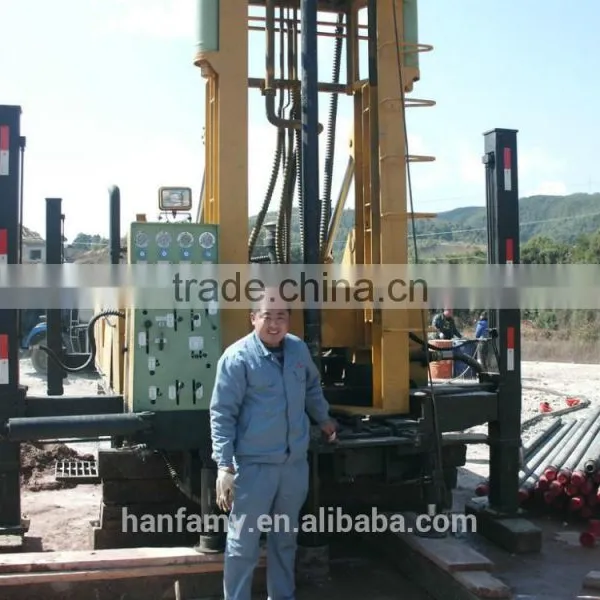

( HF1100Y in worksite )

HF1100Y water well drilling rig

Introduction:

The HF1100Y crawler hydraulic well drilling rig, using a new hydraulic technology, with low air consumption rotary torque,

variable bit shift hole easy.

The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame

support on the ground, drilling and good stability.

HF1100Y rig can reliablely and efficiently drill in hard rock two times as fast as the usual machine.

The HF1100Y drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other

rock blasting whole drilling.

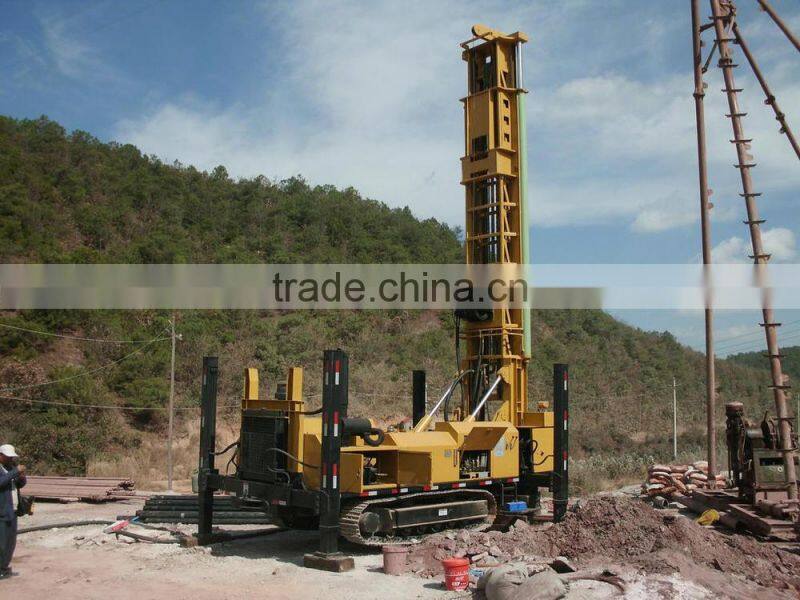

( HF1100Y drill rig )

Features:

(1). Economical. It can be owned by common families.

(2). Practical. It sell well in overseas.

(3). Easy to operate. Two persons can handle it.

(4). Portable. Low noise.

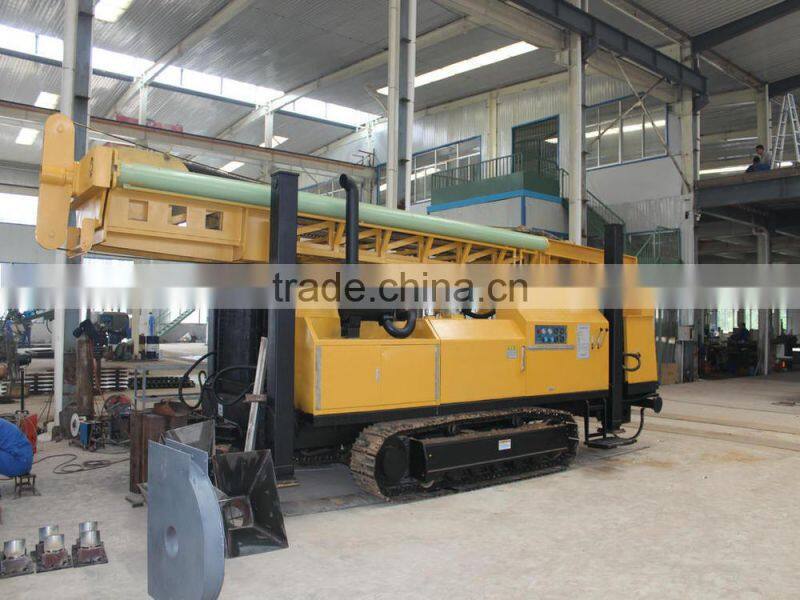

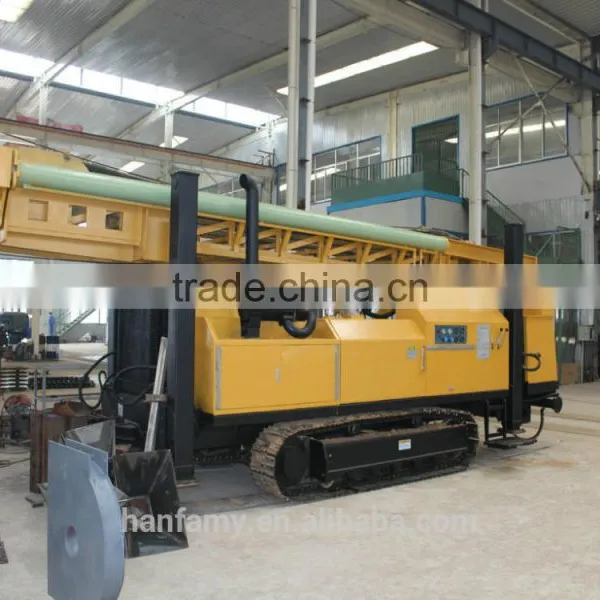

(HF1100Y in workshop )

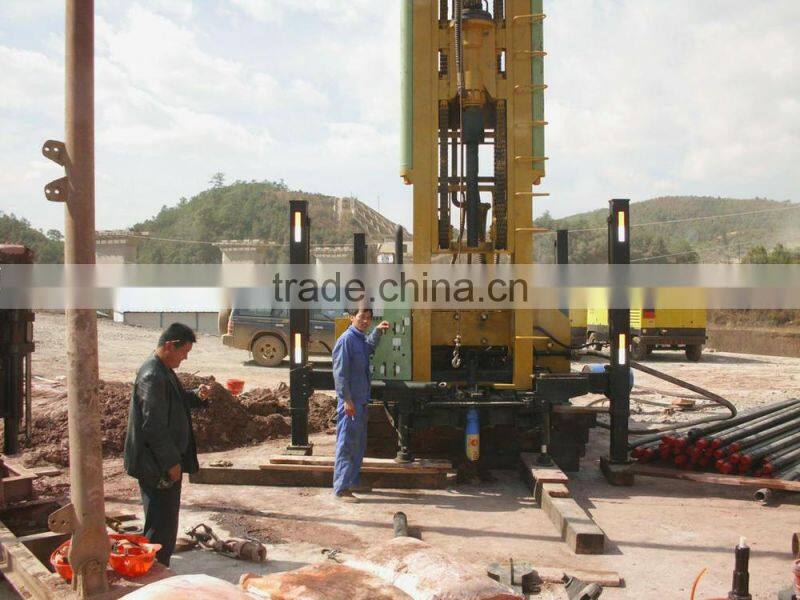

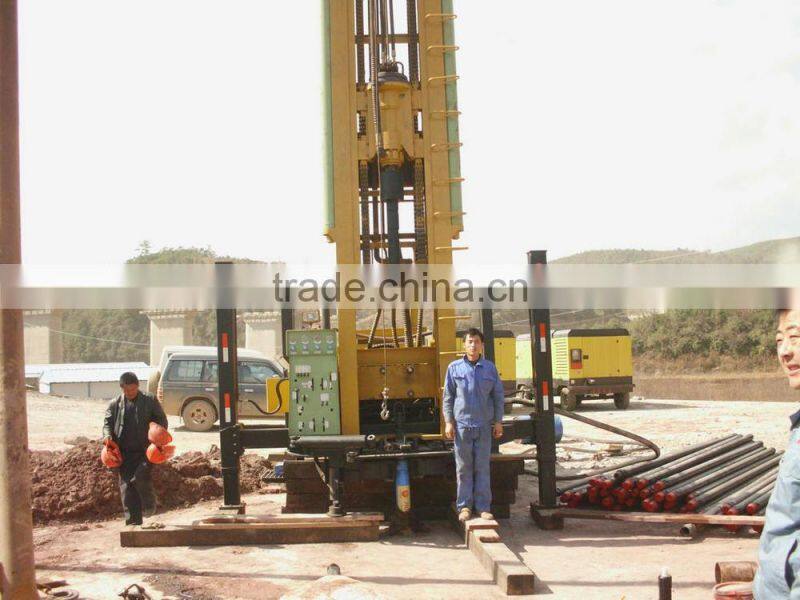

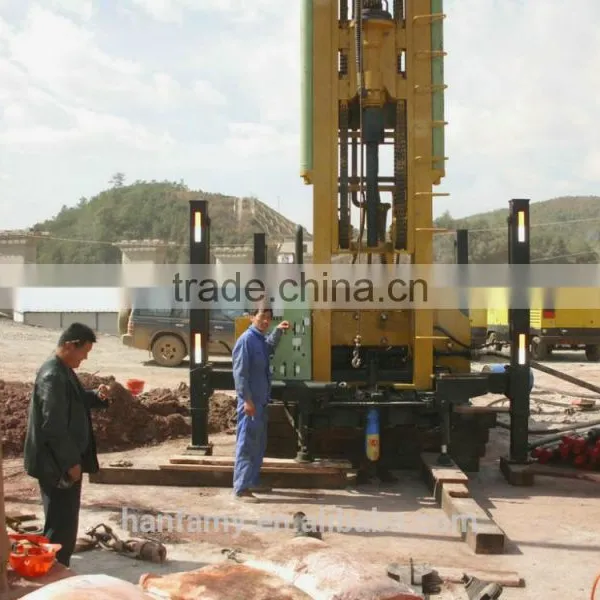

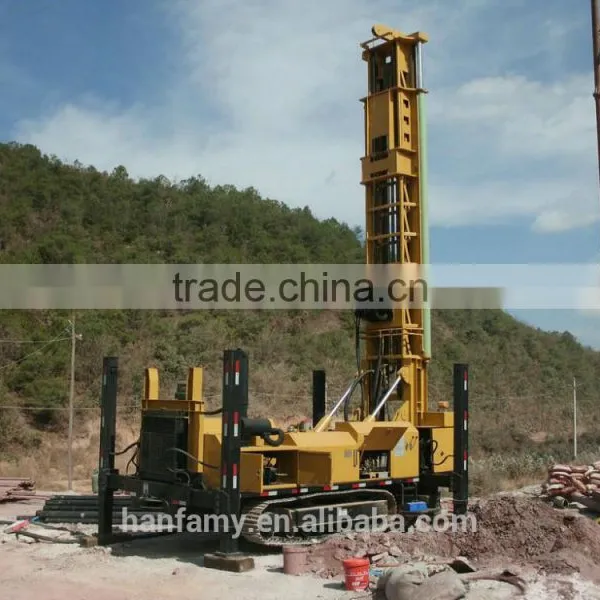

( HF1100Y in worksite )

The parameters of HF1100Y:

Max hole depth	700m
Hole diameter	140----400mm
Wind pressure	1.05----8.45 Mpa
Air consumption	16-96.4 m³/min
Length of drilling pipe	4.5m
Diameter of drilling pipe	Φ89/Φ108/Φ127m
Air reverse circulation double drill pipe	Φ127m
Pull-down pressure	12t
Lifting capacity	60t
Slow-lifting speed	2m/min
Slow-forwarding speed	0.9m/min
Fast-lifting speed	18m/min
Fast-forwarding speed	37m/min
Rotating torque	11000Nm
Rotating speed	0-100r/min
The capacity of main windlass	2.5t steel wire Φ12m
Mud pump flow	600L/min
Centrifugal flow	1300L/min
Engine	24kw/380v
Efficiency	10-25m/h
Grade ability	15°
Total Weight		16.8ton
Dimension (L * W * H)		730222002670mm
