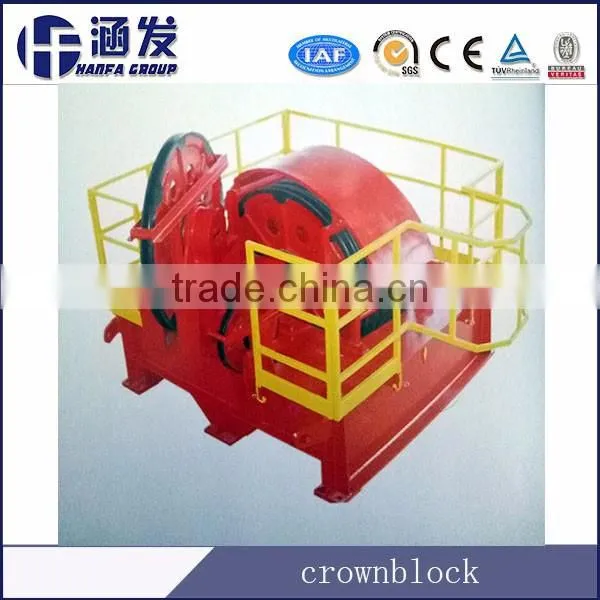

API Oil Well Crown Block Drilling Rig Good Price Factory

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Model Number:

Customized

Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HF

Model Number Customized

Type Other, Crownblock

Machine Type Drilling Tool

Certification Other, CE , ISO

Material Other, customized

Processing Type Other, customized

Use Other, oil drilling rig

Feature

In accordance with the standard of API 4F&8C.

The sheave rope groove through quenched proccessing with wear resistance, long-life.

Equipped with bump-proof cushion devices.

The traveling sheaves of the crown and its auxiliaries can be replaceable.

Ambient temperature:-20°C~55°C

-45°C~40°C

Model No.	TC90	TC135	TC160	TC180	TC225	TC315	TC450	TC675
The max.hook load(KN)	900	1350	1580	1800	2250	3150	4500	6750
O.D of sheaves mm(in)	605 (23 10/13)	735 (28 12/13)	760 (30)	915 (36)	915 (36)	1270 (50)	1524 (60)	1524 (60)
Number of sheaves	5	5	5	4+3	6	7	7	8
Dia. of wireline mm(in)	26 (1)	26 (1)	29 (1 1/8)	32 (1 1/4)	32 (1 1/4)	35 (1 3/8)	38 (1 1/2)	38 (1 1/2)
Overall Dim.mm (LengthWidthHight)	1945 (76 7/13)	1854 (73)	2361 (92 12/13)	2500 (98 15/64)	2370 (93 4/13)	4370 (170 1/2)	3300 (130)	3928 (154 5/8)
	1368 (53 55/64)	1575 (62)	1448 (57)	1938 (65 7/13)	1832 (72 3/26)	3710 (111 1/2)	2902 (114 1/4)	3080 (121 1/4)
	1691 (66 7/13)	1586 (62 6/13)	1544 (60 10/13)	1684 (59 4/13)	2286 (90)	3555 (166 7/8)	3760 (148)	2915 (114 3/4)
Weight (kg)	825	1114	1705	2095	3528	7945	10625	15340
O.D. of fast sheave.mm	760	875	915	915	1070	1270	1524	1524
