Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > Hot Sale! ! ! DTH Hammer Drill Bits of Power Tools for Mining

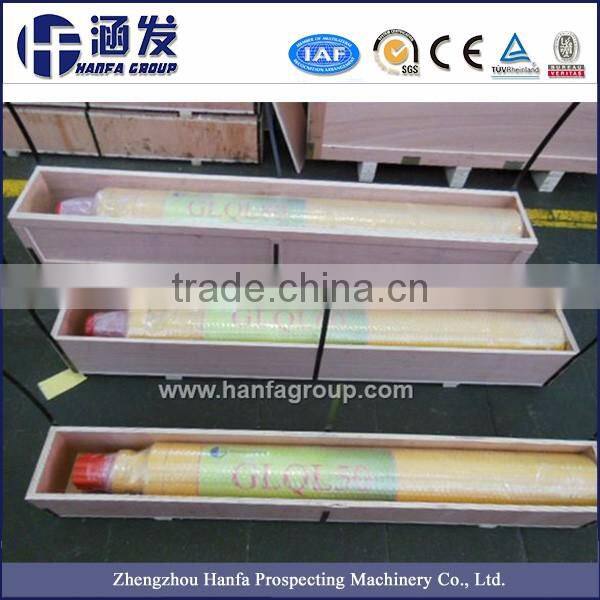

Hot Sale! ! ! DTH Hammer Drill Bits of Power Tools for Mining
US$ 200 - 850
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HF
Model Number:
GL
Type:
Other, dth hammer, High Quality DTH Hammer
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese High Quality API Oil Drilling Crown BlockNegotiableMOQ: 1 Set -
Oil Drilling Rig Crown Block With China SupplierNegotiableMOQ: 1 Set
-
API Oil Well Crown Block Drilling Rig Good Price FactoryNegotiableMOQ: 1 Unit
-
API Spec 4F Drilling Rig Crown BlockNegotiableMOQ: 1 Set
-
Oil Drill Crown Block TC Series For Drilling RigNegotiableMOQ: 1 Unit
Brand Name
HF
Model Number
GL
Type
Other, dth hammer, High Quality DTH Hammer
Machine Type
Drilling Tool
Certification
AISI
Material
High Manganese Steel
Processing Type
Forging
Use
Well Drilling
High Pressure DTH Hammer
Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
| ----Type and Technical Specification of High Pressure DTH Hammers | ||||||||||||
| Item | GL330 | GL335 | GL340A | GL345 | GL350 | GL355 | GL360 | GL380 | GL3120 | |||
| Drilling Dia. (mm) | 82-85 | 90-93 | 105-130 | 105-130 | 130-152 | 130-152 | 152-305 | 203-350 | 302-508 | |||
| Hammer Length(mm) | 867 | 908 | 1052 | 1034 | 1387 | 1220 | 1450 | 1551 | 1934 | |||
| Outside Dia. (mm) | 71 | 81 | 92 | 98 | 114 | 124 | 136 | 181 | 275 | |||
| Weight(kg) | 19 | 21.8 | 38 | 39 | 69 | 74 | 126 | 277 | 642 | |||
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | |||
| Air Consumption | 3-12 | 4.3-14.2 | 3.5-18 | 3.5-15 | 5.7-18 | 6.5-18 | 8.5-25 | 12-31 | 14-45 | |||
| (M3/Min.) | ||||||||||||
| Torque(N.M) | 150 | 205 | 304 | 335 | 590 | 700 | 822 | 1560 | 2410 | |||
| Impact Frequency (Times/Min.) | ≥800 | 950-1500 | ≥800 | ≥800 | 810-1470 | 810-1500 | 820-1475 | 860-1510 | 980-1446 | |||
| Connection 1 | 48.8×4.2 | API 2-3/8 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 2-3/8 | API 3-1/2 | API 4-1/2 | API 6-5/8 | |||
| Connection 2 | 47-6 | 53-8 | 64-8 | 64-8 | 84-8 | 84-8 | 99.5-8 | 128-10 | 184-8 | |||
| High Efficient High Pressure Hammer | ||||||||||||
| Item | GL345A | GL355K | GL360K | GL380K | ||||||||
| Drilling Dia. (mm) | 105-130 | 140-152 | 165-219 | 203-350 | ||||||||
| Hammer Length(mm) | 1034 | 1098 | 1372 | 1504 | ||||||||
| Outside Dia.(mm) | 98 | 124 | 152 | 180 | ||||||||
| Weight(kg) | 39 | 70 | 92 | 230 | ||||||||
| Working Pressure(Mpa) | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | 0.8-2.1 | ||||||||
| Air Consumption (M3/Min.) | 3.5-15 | 4.5-18 | 9-26 | 9.6-24.8 | ||||||||
| Torque(N.M) | 335 | 800 | 1150 | 1870 | ||||||||
| Impact Frequency (Times/Min.) | ≥800 | 840-1500 | 950-1650 | 1100-1550 | ||||||||
| Connection 1 | API 2-3/8 | API 2-3/8 | API 3-1/2 | API 4 1-2 | ||||||||
| Connection 2 | 64-8 | 84-8 | 99.5-8 | 128-10 | ||||||||
