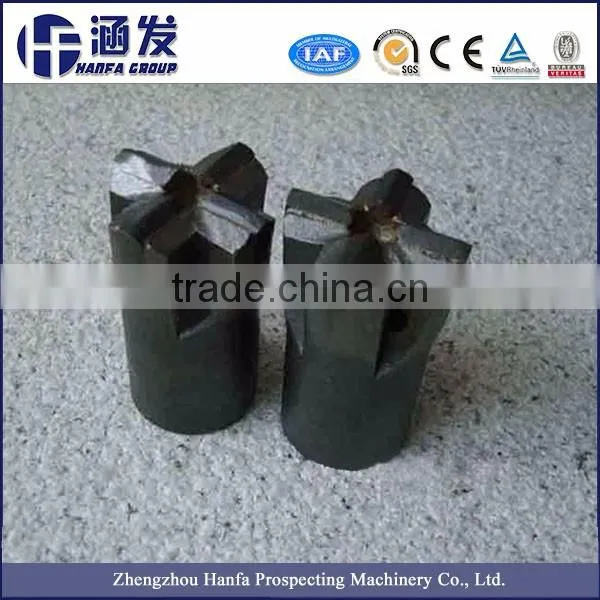

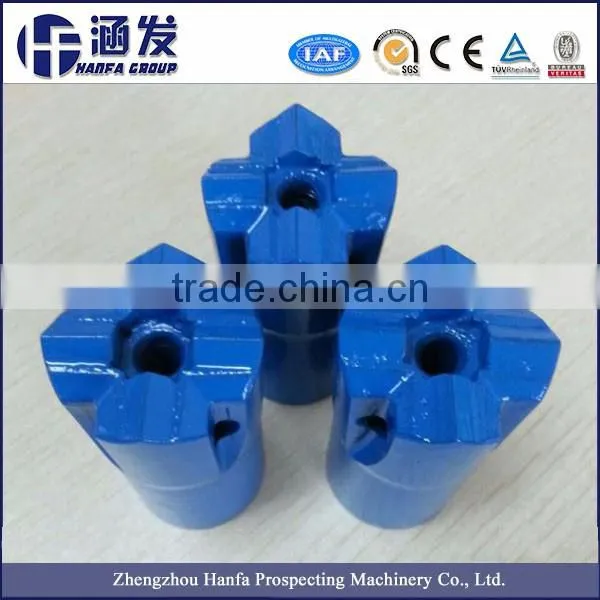

Rock Drilling Bits, Normal Chisel Bits, Cross Bits
US$ 10 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Hanfa
Model Number:
Cross Bits
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-Sealed Roller Bearing Tri-Cone Bits for SaleUS$ 200 - 800MOQ: 1 Piece -
Diamond Roller Cone Drill BitUS$ 500 - 1,800MOQ: 1 Piece
-
Thread Drill Bits With Rock Drilling ToolsUS$ 30 - 200MOQ: 1 Piece
-
34mm/36mm 8buttons 12degree Tapered Rock Button Drill BitUS$ 100 - 200MOQ: 1 Piece
-
Thread Button Bits for Drill Hard HolesUS$ 30 - 200MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
Hanfa
Model Number
Cross Bits
Type
Other, Drill Bit, Cross Bits
Machine Type
Drilling Tool
Certification
AISI
Material
Carbide
Processing Type
Forging
Use
Other, drill machine
Rock Drilling Bits, Normal Chisel Bits, Cross Bits
Our cross bits diameters are from38mmto127mm, and different type are available, like R22,
R25,R32, R38, T38,T45,T51,ST58, ST68,etc
.
Feature
1. Excellent drilling penetration
2. Used in very hard or hardest rock formation
3. Adequate for various construction conditions
4. Strong corrosion resistance
Application
1.The cross bit is suitable for digging of very hard rock formation, hard formation and crack-grown formation.
2.All cross bits have to be reground at regular intervals to crush rock efficiently.
3.We choose different material and size for the cross bits in order to adapt the different rock formations and
working conditions.
Main technical paremeter
H25
| diameter | button(mm) | flushing holes | ||
| mm | inch | length*width*height | side | front |
| 35 | 1 3/8" | 13*8*12 | 4 | 1 |
| 38 | 1 1/2" | 14*8*12 | 4 | 1 |
| 41 | 1 21/32" | 15*8*12 | 4 | 1 |
| 45 | 1 49/64" | 17*8*12 | 4 | 1 |
| 48 | 1 57/64" | 17*8*14 | 4 | 1 |
| 51 | 2" | 19*10*16 | 4 | 1 |
| 57 | 2 1/4" | 22*10*16 | 4 | 1 |
| 64 | 1 33/64" | 24*10*16 | 4 | 1 |
| 76 | 3" | 29*12*20 | 4 | 1 |
R25/R28
| diameter | button(mm) | thread | |
| mm | inch | length*width*height | side |
| 35 | 1 3/8" | 14*8 | R25 |
| 38 | 1 1/2" | 14*8 | R25 |
| 41 | 1 5/8" | 14*8 | R25 |
| 43 | 1 11/16" | 14*8 | R25 |
| 38 | 1 1/2" | 14*8 | R28 |
| 43 | 1 11/16" | 14*8 | R28 |
| 45 | 2 3/4" | 14*8 | R28 |
R32
| diameter | button(mm) | thread | |
| mm | inch | length*width*height | side |
| 45 | 1 3/4" | 16*10 | R32 |
| 48 | 1 7/8" | 16*10 | R32 |
| 51 | 2 | 16*10 | R32 |
| 57 | 2 1/4" | 16*10 | R32 |
| 64 | 2 1/2" | 18*13 | R32 |
| 76 | 3 | 18*13 | R32 |
