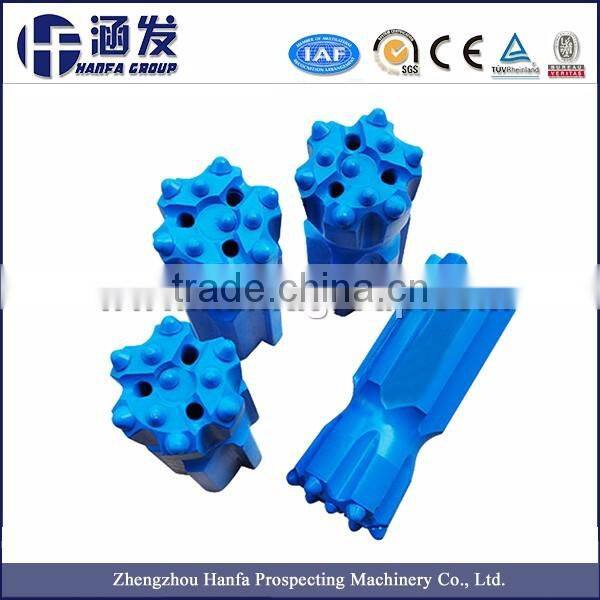

Thread Drill Bits with Rock Drilling Tools
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Technical Data
| Dia.mm | Thread Connection | Qty*Button Dia.mm | Air Holes | Weight (kg) | ||
| Gauge | Front | Front | Side | |||
| 64 | R32/T38 | 6*12 | 3*12 | 1 | 2 | 1.60 |
| 76 | R32/R38/T38/T45 | 7*10 | 4*10 | 1 | 2 | 2.60 |
| 89 | R32/T38/T45/T51 | 8*12 | 4*12+2*10 | 4 | 2 | 4.30 |
| 102 | R32/T38/T45/T51 | 8*14 | 6*12 | 2 | 2 | 5.60 |
| 110 | T45/T51 | 7*14 | 5*13 | 3 | - | 5.80 |
| 115 | T45/T51 | 7*14 | 6*14 | 4 | - | 6.00 |
| 127 | T45/T51 | 8*14 | 7*13 | 2 | 1 | 6.50 |
| 140 | T51 | 8*16 | 7*14 | 2 | 1 | 8.90 |
| 152 | T51 | 8*16 | 8*14 | 2 | 1 | 10.00 |
Our Factory
We are a leading manufacturer of drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Zhengzhou, Henan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.
Our Certificate
Our products has been authorized and certified by TUV and ISO9001: 2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
FAQ(Frequently Asked Questions)
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
