rock and soil drilling,crawler type full hydraulic gas exploration drilling rig ,HFDX-4
- 20 Set / Sets per Month
- Qingdao
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Other | Power Type: | Diesel |
Brand Name: | Hanfa | Model Number: | HFDX-4 | Usage: | Water Well |
Dimension(L*W*H): | 2430*1540*1450 mm | ||||
Certification: | 9001 | Warranty: | 12months | ||
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
exploration drilling rig1)full hydraulic
2)crawler type easy to move
3)easy to operated

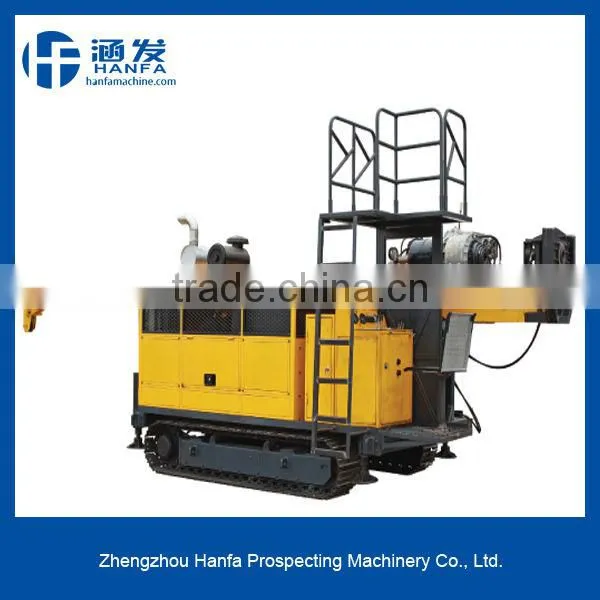

rock and soil drilling,crawler type full hydraulic gas exploration drilling rig ,HFDX-4
1. Application of HF series exploration drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
2. technical parameters about exploration drilling rig
I. Features and Advantages
The leading core drill rigs in the developed countries are full hydraulic operated type ,which adopt the technology of wire-drawing core with diamond tip ,this type of drill rig is also the main developing trend in the field of drill rig technology and related equipment,under the international and domestic trend ,our factry has developed the HFDX-4 Full Hydraulic Operated Core Drill Rig ,this type of drill rig can take the place of imported products and be applied in the fields of geology,metallurgy,coal mines,petroleum,natural gas and underground water exploration
Crawler-type layout,the feeding and lifting of rotator are driven by a series motor with gear and chain with a long stroke,3.5m stroke.the rotation of spindle is driven by a single engine,it has four mechanical shifts .and it speed could be adjusted by hydraulic pressure with stepless speed change.the mast has the funcion of sliding and touching ground,the spindle lifted and lowered with oil cylinder,it could be folded for transporteing and storing .the spindle has a big diameter hole and high-precision structure
It is a light, full hydraulic core drill rig. The core could be obtained at the earth's surface by using the drill rig.
2. The technical parameters
Diesel Engine | Model | Cummins engine ,6BTA5.9-C180 |
Power | 132Kw (177HP) | |
Speed | 2200rpm | |
Drilling Capacity | BQ | 1000m(3280feet) |
NQ | 700m(2296 feet) | |
HQ | 500m(1640 feet) | |
PQ | 300m(984 feet) | |
Rotator Capacity | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
Max. Torque | 3700 N·m(2727 lbf·ft) | |
Hold Diameter | 121 mm(4.76 inch) | |
Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | |
Max. Feeding Power | 60 kN(13480 lbf) | |
Capacity of Main Hoist | Hoisting force (single wire) | 57kN(12814 lbf) |
Steel Wire Diameter | 18 mm(0.71 inch) | |
Steel Wire Length | 50 m(164 feet) | |
Capacity of Steel Wire Hoist | Hoisting Force (single wire) | 1200 Kg(2646 lb) (bare drum) |
Steel Wire Diameter | 6 mm(0.24 inch) | |
Steel Wire Length | 1000 m(3280 feet) | |
Mast | Mast Height | 9.6 m(31.49 feet) |
Mast Adjusting Angle | 0°90° | |
Drilling Angle | 45°90° | |
Feeding Stroke | 3500 mm(137.80 inch) | |
Slippage Stroke | 600 mm(23.62 inch) | |
Other | Weight (platform type) | 5700 Kg(12569 lb) |
Working Dimensions (L×W×H) | 5100×2200×2450mm(200×86.6×96.5 inch) (Main equipment) | |
Transport Dimensions (L×W×H) | 2430×1540×1450 mm(95.7×60.6×57.1 inch) (Pump series) | |
Mud Pump | Model | BW150 |
Foot Clamp | Clamping Scope | 55.5-110 mm(2.19-4.33 inch) through hole 154mm(6.06 inch) |
3,Designs of HF series exploration drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
4. Production ability( exploration drilling rig )
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers( exploration drilling rig )
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing( exploration drilling rig )
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
8. Quality guarantee( exploration drilling rig )
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
