HF-6 Full Hydraulic Core drilling rig1.Full hydraulic
2.Fabulous quality
3.Great Ability
4.0~90 degrees mast

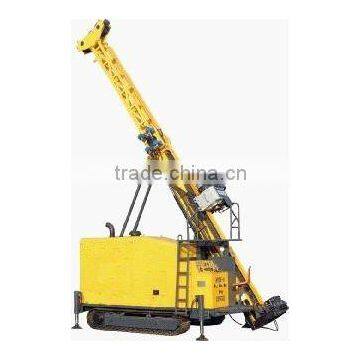

HF-6 Full Hydraulic Core Drilling Rig
I. General Introduction
HF-6 Hydraulic Core Drilling Rig,an up-to-date new product,is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world. HF-6 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
II. Main Performance Parameters of HF-6
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
Diesel Engine |
Model |
Cummins 6CTA (turbocharged and charge water cooled) |
Displacement |
8.3L (2.19 US Gallons) |
|
Power |
178kW (240HP) |
|
Rated RPM(Factory setting) |
2200rpm |
|
Drilling Capacity |
BQ |
2000 m(6560 feet) |
NQ |
1600 m(5248 feet) |
|
HQ |
1300 m(4264 feet) |
|
PQ |
1000 m(3280 feet) |
|
Drill Head |
Rotation Motor |
Double Hydraulic Motor -variable and Reversible Maker: SAUER-DANFOSS |
RPM |
Two Shifts/ Stepless Change 0-1100 RPM |
|
Ratios |
1st 8.776:1 2nd 2.716:1 |
|
Head Opener |
sidewise sliding way with hydraulic drive |
|
Hydraulic Chuck(PQ) |
Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N |
|
Max. Torque |
6400 N·m(4717 lbf·ft) |
|
Hold Diameter |
121 mm(4.76 inch) |
|
Max. Lifting capacity of Spindle |
220 kN(49456 lbf) |
|
Max. Feeding Power |
110 kN(24728 lbf) |
Primary Pump |
Hydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.With load sensing system. |
Maker: DANFOSS 1st Pump:200LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump:102 LPM at 16MPa |
Hydraulic Tank |
Capacity |
420 L (111 US Gallons) |
|
Capacity of Main Hoist |
Hoisting Speed (single wire) |
38-70m/min(bare drum) |
Hoisting force (single wire) |
120kN(26976 lbf) |
|
Steel Wire Diameter |
22 mm(0.86 inch) |
|
Steel Wire Length |
50 m(164 feet) |
|
Capacityof Wireline Hoist |
Hoisting Force (single wire) |
15 kN(3372 lbf) (bare drum) |
Steel Wire Diameter |
6 mm(0.24 inch) |
|
Steel Wire Length |
2000 m(6560 feet) |
|
Mast |
Mast Height |
11 m(36 feet) |
Mast Adjusting Angle |
0—90 degrees |
|
Drilling Angle |
45º off horizontal to 90ºvertical down |
|
Feeding Stroke |
3800 mm(150 inch) |
|
Slippage Stroke |
1500 mm(59 inch) |
|
Feed Pull |
22000kg(48510 lb) |
|
Feed Thrust |
11000kg(24255 lb) |
|
Rod Pull |
3m or 6m(9.84feet or 19.68feet) |
|
Mud Pump |
Type |
Reciprocating Pump Triplex Plunger |
Model |
BW320 |
|
Stroke |
110mm(4.3 inch) |
|
Output volume |
320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min) |
|
Discharge pressure |
4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi) |
Foot Clamp |
Clamping Scope |
55.5-117.5 mm(2.19-4.63 inch) through hole dia.154mm(6.06 inch) |
Others |
Weight |
14500 Kg(31973 lb) |
Transport Dimensions (L *W *H ) |
5900*2240*2500mm (232.3*88.1*98.4 inch) |
|
Transport Way |
Steel Crawler |
