Solid Waste Shredder/Plastic shredder/Tire Shredder/Wood shredder/MSW shredder/RDF shredder

Specifications

The shredder can quickly cut waste solids down to small size.Used for shredding of municipal waste,plastic,tire,wood waste,etc.

It is the wood shredder,waste shredder,MSW shredder,RDF shredder,plastics shredder...

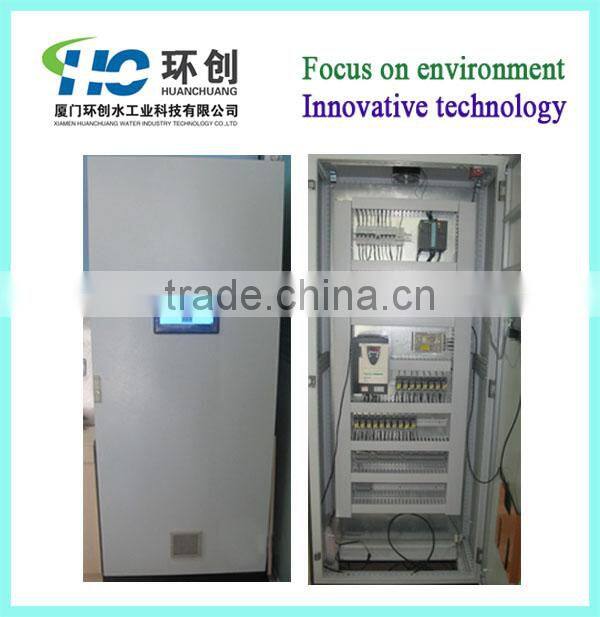

The shredder includes double shafts cutters group, gearbox, shell, reducer, PLC control cabinet and equipped with installation frame and other accessories to insure working reliably.

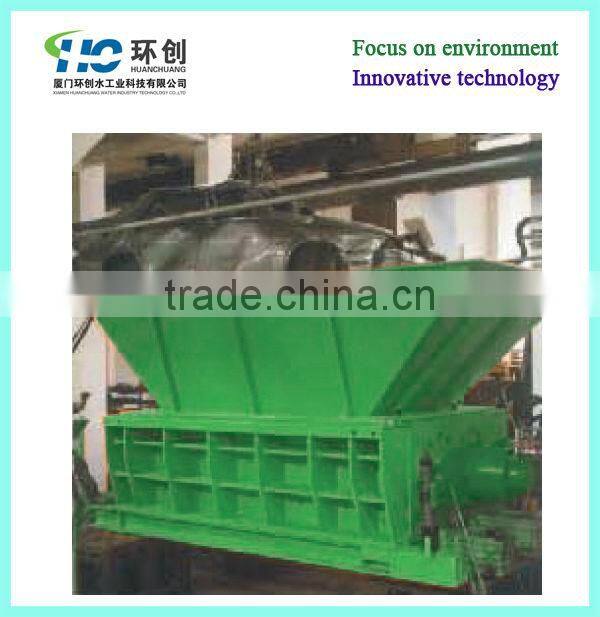

The shredder is typically installed horizontally with a stainless steel hopper on top. Conveyors or augers feed material into the hopper where it then falls into the slow rotation, high-torque central cutter shafts. Two rows of sharp, steel cutters rotate slowly and with incredibly high-torque to turn large troublesome solids into tiny particles. We custom design and build each shredder and hopper to match your exact specifications.

Application:

Including petroleum, wastewater, agriculture, food processing, manufacturing, ship food waste, e-waste destruction and more.

Solid waste like rag, glass, paper, wood, articles for daily use, empty can, residues, small pieces of brick, rubber products, string, hose, leather products, plastic products.

Size after crushed 20-600 mm



Features & Benefits

Dual-Shafted Shredder

• Low-speed, high-torque shredders handle rocks, wood, clothing, plastics, bone and other debris
• More powerful and capable of shredding a wider variety of solids than single shafted machines

Compact and Efficient Design

• Hopper installations available in custom dimensions
• Easily retrofitted into your existing facility
• working 24 hours continuously and achieve the longest service life in the worst environment

Hardened Steel Cutters

• Exclusive process produces cutters with industry leading Rockwell Hardness of 60-65 HRC
• Standard cutters to fit your application and generate the particle size you require: 3, 7, 11 or 13 tooth cutter
• We builds custom sized cutters to fit your specifications

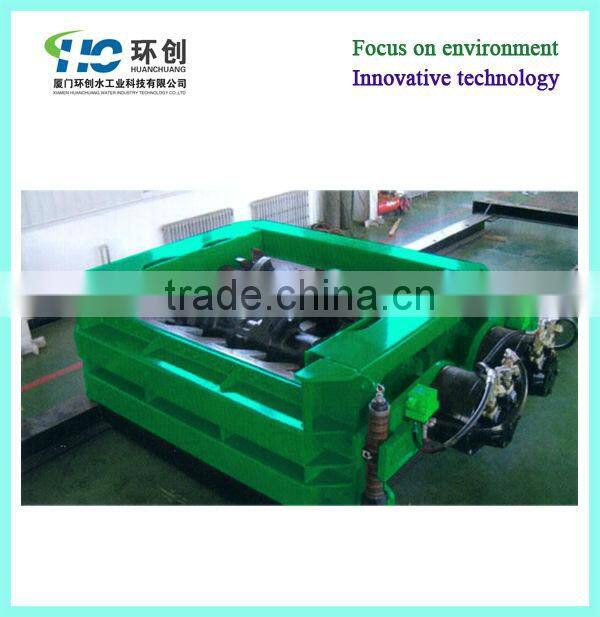

• Two groups of cutters and gaskets are installed in two parallel shafts, overlapping in turn to achieve spiral cutting. Two rotary shafts are driven by the drive shaft and rotate in opposite direction.

Cutter Cleanout Combs

• Help process difficult and stringy solid waste
• Deflects solids into the cutting chamber

Automated Monitoring and Controls

• After start-up little to no maintenance required
• Auto load sensing and reversals reduce interrupts and optimize the shredder’s performance

Shredding capacity

10-150tons/h



Execution Standards

lstandard of A36 carbon steel

lstandard of A536-84 ductile cast iron

lstandard of stainless steel 303

lstandard of stainless steel 304

lstandard of heated treatment alloy steel 4130

lstandard of heated treatment alloy steel 4140

lRockwell hardness



Specification:

Model   HCD	Dimensions (mm)L*W*H	Weight(Tons)	Cutting area dimensions(mm)L*W	Total qty of cutters(pcs)	Teeth of cutters	Cutter thickness(mm)	Solid size after crushing(mm)	Speed of cutters	Motor power(kW)	Motor service factor	Waste throughput(t/h)	Working time	Power supply	IP class
HCD-2T	2800*800*1300	1	600×300	38	7	16	≤20mm	45r/min	≤37kw	1.15	2	24hours Continuously	Three phase,380V,50HZ	IP55
HCD-5T	3300*1000*1800	1.6	800×600	20	7	40	≤40mm	45r/min	≤37kw	1.15	5
HCD-8T	4800*1300*1600	2.8	1200×600	40	7	30	≤30mm	45r/min	30kw	1.15	8
HCD-10T	4500*1200*1500	3.2	1200×800	40	7	30	≤30mm	45r/min	37kw	1.15	10
HCD-15T	4000*1200*1500	3.6	1200×1000	24	5	50	≤50mm	45r/min	50kw	1.15	15
HCD-20T	4400*1500*1500	4	1400×1000	28	5	50	≤50mm	45r/min	55kw	1.15	20
HCD-30T	4400*1500*1700	6	1600×1000	24	5	70	≤70mm	45r/min	70kw	1.15	30
