Home > Consumer Electronics > Water Heater & Components > Heat Pump Water Heater > All in One Type High Effiency Water Loop Heat Pump

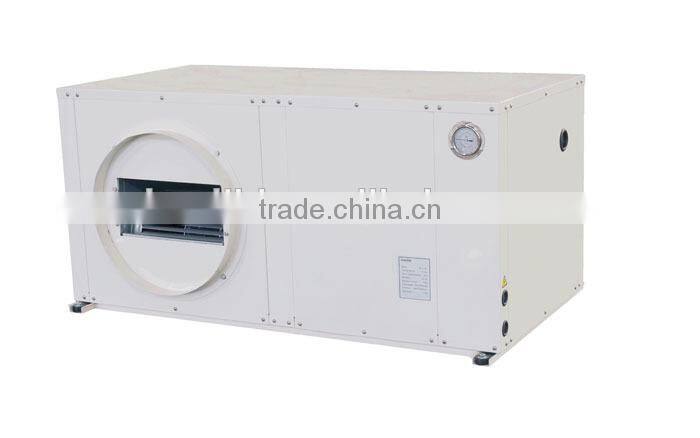

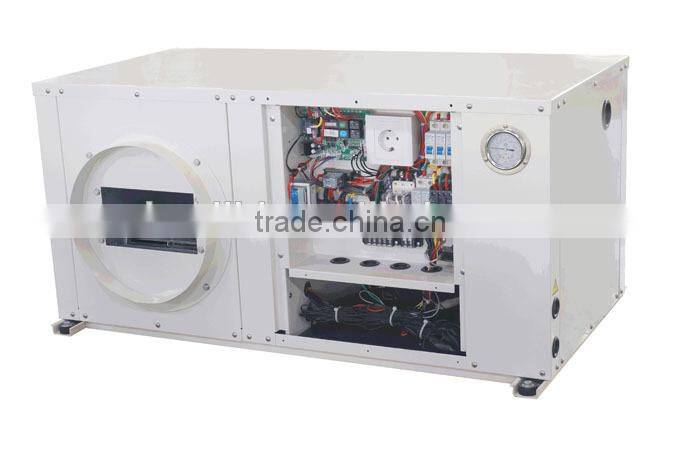

All in One Type High Effiency Water Loop Heat Pump

Name: All in One Type High Effiency Water Loop Heat Pump
Brand: HUALI
SKU: 141597524
Availability: InStock

Shenzhen Jinhuali Refrigeration Plant Co., Ltd.

All in One Type High Effiency Water Loop Heat Pump thumbnail-1

All in One Type High Effiency Water Loop Heat Pump thumbnail-2

All in One Type High Effiency Water Loop Heat Pump thumbnail-3

All in One Type High Effiency Water Loop Heat Pump photo-1

All in One Type High Effiency Water Loop Heat Pump photo-2

All in One Type High Effiency Water Loop Heat Pump photo-3

US$ 1,200 - 2,400 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Other, Water Source Heat Pump, water cooled

Installation:

Other, Freestanding, Ceiling installation

Storage / Tankless:

Instant / Tankless

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Water Source Heat Pump, water cooled

Installation Other, Freestanding, Ceiling installation

Storage / Tankless Instant / Tankless

Housing Material Other, galvanized sheet

Use Other, Villa, greenhouse plant

Certification CE

Place of Origin Guangdong, China

Brand Name HUALI

Model Number HLLS

Water to water heat pump/Water loop heat pump

Features

Integral type water source heat pump

The integral type water source heat pump with integrated design.It has thin body and does not need refrigerant condensing tube. Design and installation more convenient, higher safety and environmental protection, is ideal for high-grade comfortable space

Energy efficient

The integral type water source heat pump, using the world's leading high-performance compressor refrigeration system design and optimization, energy efficiency average of 4.5 or more, part of the national energy certification unit

Low noise level

Optimized refrigeration piping design and multiple quiet technology, which greatly limits to reduce air conditioning operating noise

Easy installation

Overall horizontal water source heat pump with compact body saves installation space, the unit comes with automatic fault diagnosis function, so that post-maintenance easier

Specification

Model			HLLS-03H	HLLS-04H	HLLS-05H	HLLS-06H	HLLS-07H	HLLS-10H	HLLS-15H
Power supply			220V/50Hz						380V/50Hz
Cooling capacity		kw	3.010	3.900	5.442	6.495	7.330	10.560	14.860
Heating capacity		kw	3.137	4.260	5.775	7.090	8.180	11.955	19.580
Cooling Power input		kw	0.725	0.982	1.389	1.734	1.930	2.330	3.750
Heating Power input		kw	0.772	1.085	1.495	1.849	2.122	2.330	4.400
Cooling current		A	3.4	4.6	6.6	8.3	9.7	11.6	6.100
Heating current		A	3.6	5.1	7.1	8.9	410.6	11.6	7.0
Airflow volume		m³/h	500	800	950	1100	1260	2030	2500
External Static Pressure		Pa	30(0,15,50,60)						80(30,50,100,120)
Water flow volume		m³/h	0.64	0.85	1.17	1.46	1.61	2.12	3.10
Water pressure drop		kPa	12.8	29	16.3	23.9	31.5	43.8	33.7
Connected pipe		in	Rc3/4''
Unit noise level (H/M/L)		dB(A)	40/39/38	41/40/39	43/42/41	44/43/42	45/44/43	47/46/45	48/47/46
Evaporator Type			Double Tube type Heat Exchanger
Compressor Type			Rotary						Scroll
Refrigerant Type			R410A
Dimensions	Length	mm	830	830	1024	1024	1024	1124	1313
	Width	mm	531	531	592	592	592	650	747
	Height	mm	382	382	436	436	436	510	512
Unit Weight		kg	55	57	82	84	88	111	155

Model			HLLS-16H	HLLS-18H	HLLS-22H	HLLS-30H	HLLS-32H	HLLS-38H	HLLS-43H
Power supply			380V/50Hz
Cooling capacity		kw	15.880	18.900	21.500	28.600	31.600	37.500	43.000
Heating capacity		kw	20.900	22.200	25.300	37.000	42.500	51.000	58.000
Cooling Power input		kw	4.070	4.540	5.500	7.400	8.030	9.530	11.150
Heating Power input		kw	4.700	5.100	6.100	8.600	8.780	11.030	13.190
Cooling current		A	9.4	8.7	9.7	15.2	15.8	17.8	21.6
Heating current		A	10.2	9.5	10.5	16.4	16.5	19.9	23.2
Airflow volume		m³/h	2650	3500	4000	5200	6000	7000	8000
External Static Pressure		Pa	80(30,50,100,120)	80(100,120,150)		120(80,150,200)	150(100,200,250)
Water flow volume		m³/h	3.40	4.20	4.80	6.40	7.00	8.30	9.50
Water pressure drop		kPa	35.3	50	60	42	50	54	85
Connected pipe		in	Rc3/4''	R1-1/4''
Unit noise level (H/M/L)		dB(A)	49/48/47	49	50	52	54	55	57
Evaporator Type			double tube type heat exchanger
Compressor Type			Scroll
Refrigerant Type			R410A
Dimensions	Length	mm	1313	1376	1376	1808	1808	2059	2059
	Width	mm	747	852	852	1100	1100	1110	1110
	Height	mm	512	592	592	720	720	737	737
Unit Weight		kg	158	178	180	330	340	370	380

Product show

Installation instruction

Our Customer

About our certification

Company profile

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.

Why chose us ?
