CE Certificate water air cooler fan coil unit/ Wall mounted fan coil unit / water cooled air conditioner
| Features of wall mounted fan coil unit |
|
1, thin flat shape, elegant appearance.
2. Using new alloy wheel Centrifugal wind wheel, quiet operation. Low-noise. Safe and reliable. Long life, each coil have been through the pressure leak hunting.Inlet and outlet pipe (suction collecting head) adopt Forged brass structure, reliable and durable, the service life up to 45,000 hours or more.
3, High efficient, full of energy, fan coil adopt seamless copper tube to string high- performance two-way crack aluminum fin expansion into one compact, highly efficient heat,rich heat and cold.
4. Easy to use. There are three gear speed (high - middle - low), with time switch to control temperature automatically, digital display temperature in room, understand fully at one glance, micro-control operation, flexible installation,etc. |
| Advantages of wall mounted fan coil unit |
|
| Components: |
|
It consists of heat exchanger, water pipe, filter, fan, water pan, exhaust valve, holder and etc.
1. Motor
The motor is adopts motor of low noise three speed and one way four capacitor.
2.Fan
It is adopts the leafy centrifugal rotor, the wind turbines with a variety of motor optimization matching to ensure the unit’s various specification.
3.Heat exchanger
It is adopts seamless copper tube and aluminum finned tube expanding machine, Fin with copper pipe tightly bound, fin using quadratic flanging, open air turbulence window, it can play the best effect of heat transfer, each unit with 12.5 kg/cm2 pressure leak detection.
4.Condensate plate
Its adopts the stamping forming process, to ensure the condensate plate to keep strictness.
5.Shell
The unit’s shell combined by high quality galvanized sheet metal parts assembly molding. It has left and right type and free exchange type if necessary. It also can set the return air box when necessary, operation is simple. The body structure is compact, light weight, beautiful appearance generous, pipes, wires, convenient and easy to installation. |
| Description of split fan coil unit |
|
1.Fan coil unit with CE certificate
2.Air low range: 510CMH-1020CMH or 300CFM to 600CFM

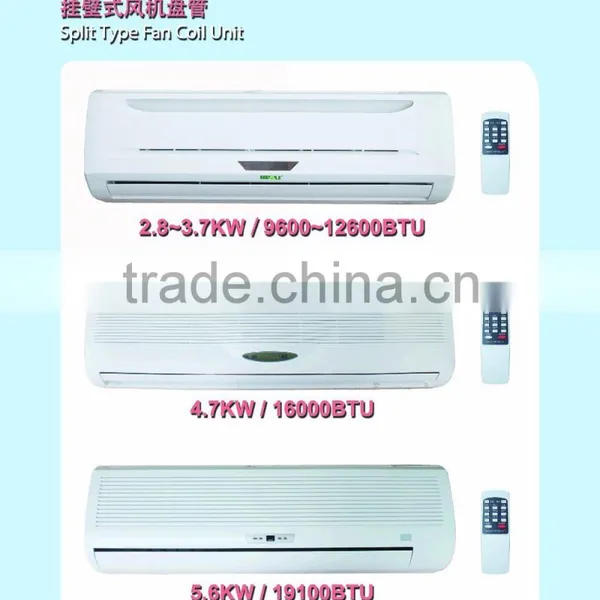

3.Cooling capacity range:2.8KW-5.6KW
4.Heating capacity:4.19KW-8.22KW
6.Fan coil unit with low noise |
| Parameter of split fan coil unit | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

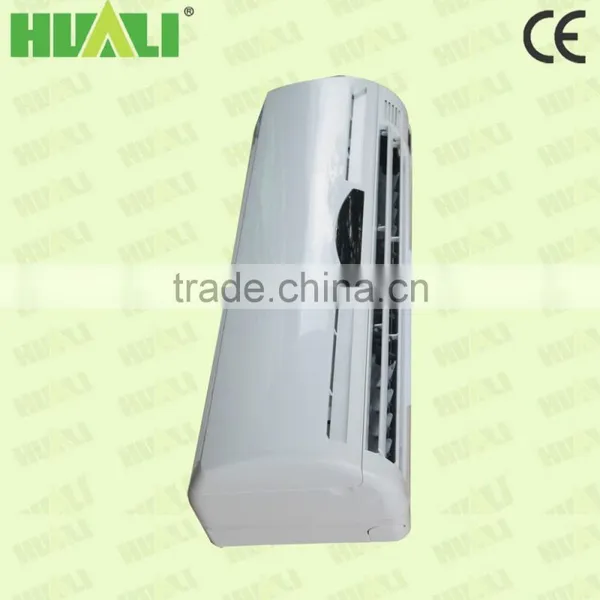

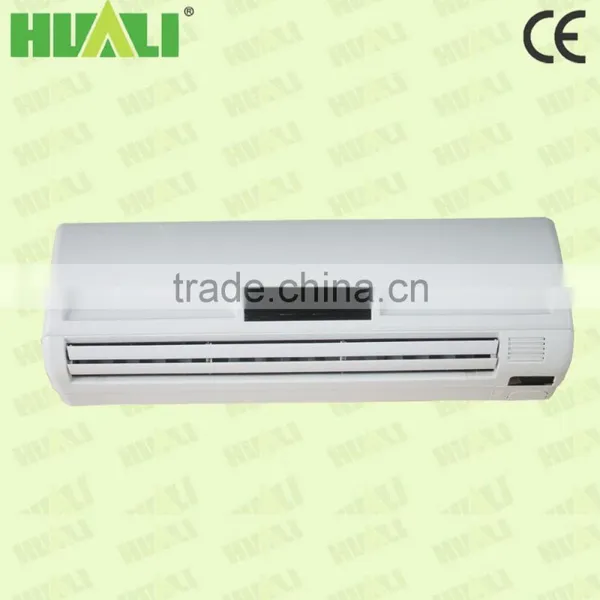

| Photo of split fan coil unit |
|
|
| Our Customer |
|
| About our certification |
|
| Company profile |
|
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
| Why chose us ? |
|
