Low Noise Split High Wall Fan Coil Unit

Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Low Noise Split High Wall Fan Coil Unit thumbnail-1
Low Noise Split High Wall Fan Coil Unit thumbnail-2
Low Noise Split High Wall Fan Coil Unit thumbnail-3
Low Noise Split High Wall Fan Coil Unit thumbnail-4
Low Noise Split High Wall Fan Coil Unit thumbnail-5
Low Noise Split High Wall Fan Coil Unit thumbnail-6
Low Noise Split High Wall Fan Coil Unit photo-1
Low Noise Split High Wall Fan Coil Unit photo-2
Low Noise Split High Wall Fan Coil Unit photo-3
Low Noise Split High Wall Fan Coil Unit photo-4
Low Noise Split High Wall Fan Coil Unit photo-5

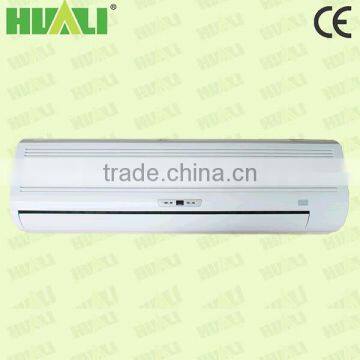

Low Noise Split High Wall Fan Coil Unit photo-6
US$ 79 - 299 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Fan Coil Unit
Application:
Home
Certification:
CE
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Conditioner Parts, Fan Coil Unit
Application Home
Certification CE
Place of Origin Guangdong, China
Brand Name HUALI
Model Number HLC

HUALI hot water split high wall fan coil unit



Features of wall mounted fan coil unit



1, thin flat shape, elegant appearance.



2. Using new alloy wheel Centrifugal wind wheel, quiet operation. Low-noise. Safe and reliable. Long life, each coil have been through the pressure leak hunting.Inlet and outlet pipe (suction collecting head) adopt Forged brass structure, reliable and durable, the service life up to 45,000 hours or more.



3, High efficient, full of energy, fan coil adopt seamless copper tube to string high- performance two-way crack aluminum fin expansion into one compact, highly efficient heat,rich heat and cold.



4. Easy to use. There are three gear speed (high - middle - low), with time switch to control temperature automatically, digital display temperature in room, understand fully at one glance, micro-control operation, flexible installation,etc.



Advantages of wall mounted fan coil unit
  • Quiet.    Compared with other air-conditioning methods, the operation noise of the fan coil unit is very low because the only moving parts are the fan and fan motor.
  • Safe Operation.    Lower noise by hot galvanized sheet steel with 6mm acoustic insulation layer.
  • High Durability.    The fan motor is double-sealed against moisture and dust, providing long operation life.
  • Integrated models.    Integrated model range airflow varies from 250~2000 m3/h including nine models.intelligence operations.
  • Fresh air by high efficiency synthetic fiber washable filter or aluminum filter.
  • V shape extended drain pan design greatly increases the drainage efficiency.
  • High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use



Components:

It consists of heat exchanger, water pipe, filter, fan, water pan, exhaust valve, holder and etc.



1. Motor



The motor is adopts motor of low noise three speed and one way four capacitor.



2.Fan



It is adopts the leafy centrifugal rotor, the wind turbines with a variety of motor optimization matching to ensure the unit’s various specification.



3.Heat exchanger



It is adopts seamless copper tube and aluminum finned tube expanding machine, Fin with copper pipe tightly bound, fin using quadratic flanging, open air turbulence window, it can play the best effect of heat transfer, each unit with 12.5 kg/cm2 pressure leak detection.



4.Condensate plate



Its adopts the stamping forming process, to ensure the condensate plate to keep strictness.



5.Shell



The unit’s shell combined by high quality galvanized sheet metal parts assembly molding. It has left and right type and free exchange type if necessary. It also can set the return air box when necessary, operation is simple. The body structure is compact, light weight, beautiful appearance generous, pipes, wires, convenient and easy to installation.

Description of split fan coil unit

1.Fan coil unit with CE certificate



2.Air low range: 510CMH-1020CMH or 300CFM to 600CFM



3.Cooling capacity range:2.8KW-5.6KW



4.Heating capacity:4.19KW-8.22KW



6.Fan coil unit with low noise

Parameter of split fan coil unit
  Model   HLC~51G68G85G102G
 Air flow  m3/h5106808501020
 Cooling  capacityW2800370047005600
BTU9556126281604119113
Heating capacityW4190549069308220
BTU14300187372365228055
Water flow  kg/h6007709601190
Input Power  W 52627696
Noise level    dB(A)39414345
Pressure of outlet12Pa
Power220V/1  50HZ
Insulated gradeE
 Heating discharge fin Vertical blinds style
WAQuantity of the Motor1111
WMQuantity of the Fan2222
LA Water inlet pipeDN20      internal thread
LMWater outlet pipeDN20      internal thread
 Condenser pipeDN20       internal thread

    Dimension:
  ModelHLC-51GHLC-68GHLC-85GHLC-102G
 A85085010301080
 B290290290330
 C180180185215
 Remark: it is DN20 for both inlet/outlet water pipes and Condenser pipe.







Photo of split fan coil unit





Our Customer

About our certification

Company profile

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
