Home > Products > Fan coil unit > European type Vertical fan coil unit
European type Vertical fan coil unit
- 3000 Unit / Units per Month
- ShenZhen
- T/T Credit Card
- Crossflow plate fin heat exchangers air cooled heat exchanger
- High efficiency heat and energy recovery exhaust ventilation system
- Portable air fresher cooler ventilators
- Night free cooling air fresher cooler ventilators
- Summber by-pass energy saving air fresher cooler ventilators
- Plate heat exchanger recuperator air fresher cooler ventilators
Product Details
Condition: | New | Type: | Fan Coil Unit | Place of Origin: | Guangdong, China |
Brand Name: | HUALI | Model Number: | HLC | Operating Voltage: | Other, 220V |
Mounting: | Floor Standing | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
European type Vertical fan coil unit
Features of vertical expose fan coil unit |
1.Air low range: 340~2380 (m3/h) 2.Cooling capacity range:1.8KW-12.6KW 3.Heating capacity:2.7KW-18.9KW 4.Low noise
•Excellent space efficiency. Multi-mode for installation. Symmetrical design allows you to change the water flow direction according to you actual needs during installation. reducing construction cost. •Quiet. Compared with other air-conditioning methods, the operation noise of the fan coil unit is very low because the only moving parts are the fan and fan motor. •Safe Operation. Lower noise by hot galvanized sheet steel with 6mm acoustic insulation layer. •High Durability. The fan motor is double-sealed against moisture and dust, providing long operation life. •Integrated models. Integrated model range airflow varies from 250~2000 m3/hincluding nine models.intelligence operations. •Fresh air by high efficiency synthetic fiber washable filter or aluminum filter. •V shape extended drain pan design greatly increases the drainage efficiency. •High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. |
Parameter of vertical exposed fan coil unit |
Remark: 1. Cooling: Indoors DB 27°C,WB 19.5°C; Chilled water inlet/outlet temp. 12°C/7°C. 2. Heating: Indoors DB WB 21°C, heating water inlet&outlet temperature 60°C/50°C; 3.The noise level based on: background noise 11.5Db(A) semi-anechoic room. 4. Water resitance refers to that of rated water flow volume; 5. Input power refers to that of High speed air flow; 6. Above parameters are for your reference to model choice of FCU with cooling and heating; Heating energy of one row is 40% of three rows'; Low static pressure air flow volume loss: 10%, high static pressure air flow volume loss: 20%. |

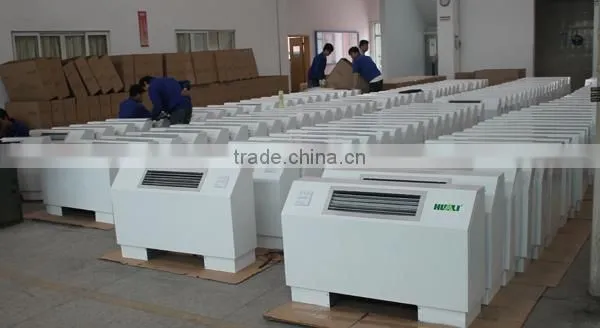

Vertical expose fan coil unit real photo |
|
Our Customer |
About our certification |
Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
Why chose us ? |
