US$ 75 - 199 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Fan Coil Unit
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fan Coil Unit
Place of Origin Guangdong, China
Brand Name HIGOLDEN
Model Number HLC
Operating Voltage 230 VAC
Mounting Ceiling Mount
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

4 Pipe Horizontal concealed ducted Fan Coil Unit with 2 way valve

Description of Horizontal concealed fan coil unit, FCU:


1, Lightweight, compact, solid, and with ultra-thin design
2,Four-row pipes with hyperbolic shutter type aluminum fin heat exchanger, strengthens the air by impeller fan of large input air,

so that the unit maximizes heat transfer efficiently. 3 cooling 1 cooling and 2 cooling and 2 heating for optional.
3, Particularly, the unit adopts large impeller slow-speed of revolution fan and low noise motor
With high, medium, and low wind speed in third gear, water system adopts room temperature control devices to adjust flexibly.

When nobody is in the room, the fan stop automatically, economic and energy-saving
4, Each model has four kinds of overboard static pressures which are 0PA, 80PA, 60PA, and 80PA (optional)
5, Unit can achieve the overboard static pressure by only updating the motor connector plug
6, Controlled easily by subarea in accordance with the application and room design air-conditioning system into several zone system.


Parameter of horizontal concealed fan coil unit



Horizontal Concealed Fan Coil
Model HLC-34HC HLC-51HC HLC-68HC HLC-85HC HLC-102HC HLC-136HC HLC-170HC HLC-204HC HLC-238HC
Air flow (m 3 /h) High speed 340 510 680 850 1020 1360 1700 2040 2380
Medium speed 255 383 510 638 765 1020 1275 1530 1785
Low speed 170 255 340 425 510 680 850 1020 1190
cooling capacity High W 2247 3146 4146 5056 5955 7758 9657 11601 13965
BTU 7669 10737 14150 17256 20324 26478 32959 39594 47663
Medium W 1620 2440 3290 4120 4850 6550 8190 9730 11580
BTU 5529 8328 11229 14062 16553 22355 27952 33208 39523
Low W 1310 2010 2650 3320 3900 5300 6610 7860 9350
BTU 4471 6860 9044 11331 13311 18089 22560 26826 31912
heating capacity High W 3251 4697 6189 7747 9491 11997 14732 18162 22137
BTU 11096 16031 21123 26441 32393 40946 50280 61987 75554
Medium W 2350 3520 4530 6040 6850 9260 11740 14140 16360
BTU 8021 12014 15461 20615 23379 31604 40069 48260 55837
Low W 1620 2470 3130 4170 4740 6500 8180 9710 11290
BTU 5529 8430 10683 14232 16178 22185 27918 33140 38533
surplus pressure of outlet (Pa) Normal 0 or 12
High static pressure 30 or 50
Cooling water temperature 7 to 12 degree
Hot water temperature 40 to 60 degree
Power supply AC220V/50Hz
Heat Exchanger Type copper pipes covered into aluminum fins, fin pitch 2.2mm
Water supply kg/h 324 482 655 814 936 1278 1602 1915 2178
Water resistance kPa 30 30 30 30 40 40 40 40 50
Working pressure 1.6MPa
Low static
pressure FCU		 Input power w 37 52 62 76 96 134 152 189 228
Motor power w 10 16 20 25 30 20×2 25×2 30×2 40×2
High static
pressure FCU		 Static pressrue
30Pa		 Input power w 44 59 72 87 108 156 174 212 253
Motor power w 12 20 25 30 40 25×2 30×2 40×2 50×2
Static pressure
50Pa		 Input power w 49 66 84 100 118 174 210 250 300
Motor power w 16 25 30 40 50 30×2 40×2 50×2 60×2
Fan motor quantity 1 2 2 2 2 3 4 4 4
Noise
dB(A)		 Low static pressure ≤37 ≤39 ≤41 ≤43 ≤45 ≤46 ≤48 ≤50 ≤52
High static pressure 30Pa ≤40 ≤42 ≤44 ≤46 ≤47 ≤48 ≤50 ≤52 ≤54
High static pressure 50Pa ≤42 ≤44 ≤46 ≤47 ≤49 ≤50 ≤52 ≤54 ≤56
Pipe  Inlet/outlet water pipe ZG3/4 "internal thread
Condensation water pipe ZG3/4" external thread
Dimension L mm 780 880 980 1080 1180 1480 1680 1780 1880
W mm 500 500 500 500 500 500 500 500 500
H mm 260 260 260 260 260 260 260 260 260
20GP container loading quantity 325 290 260 236 216 172 152 143 135
40GP container loading quantity 666 591 531 482 441 351 309 292 277

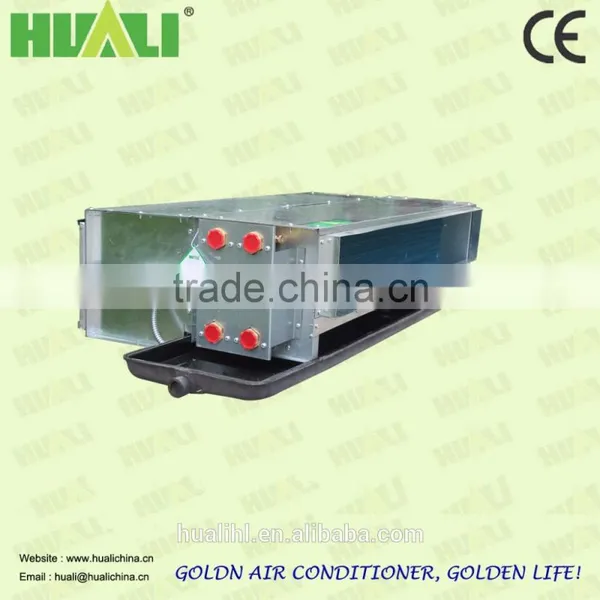

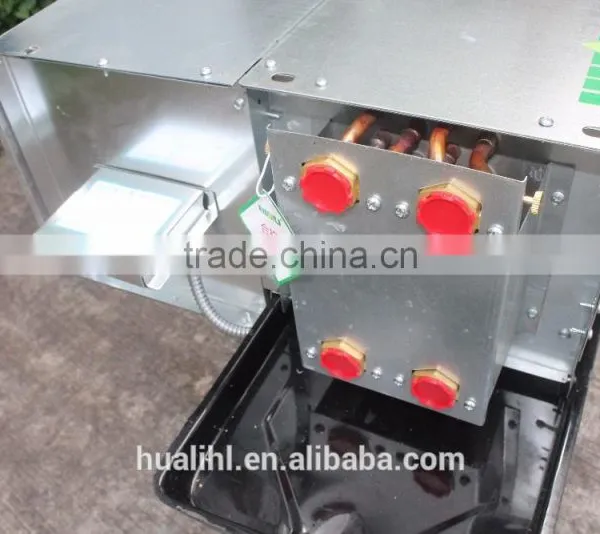

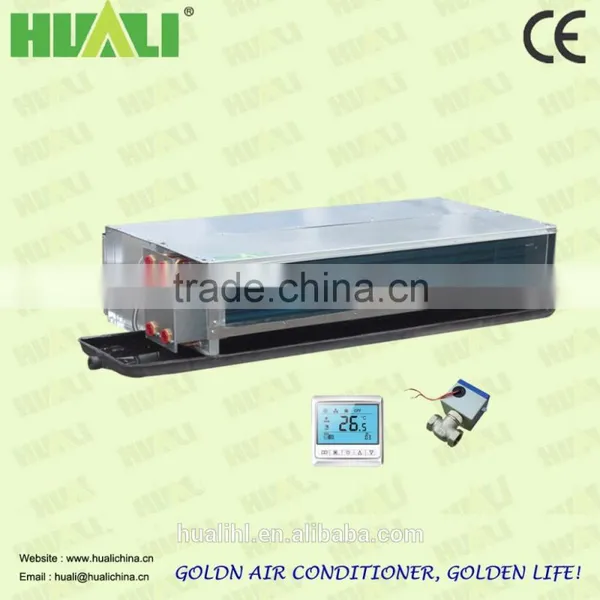

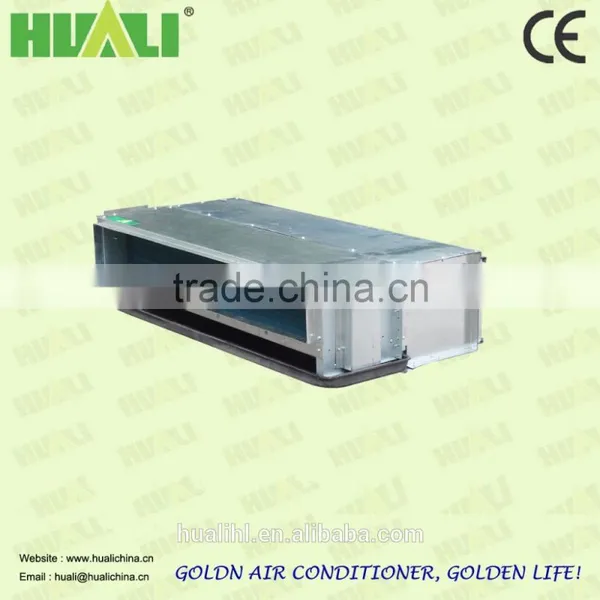

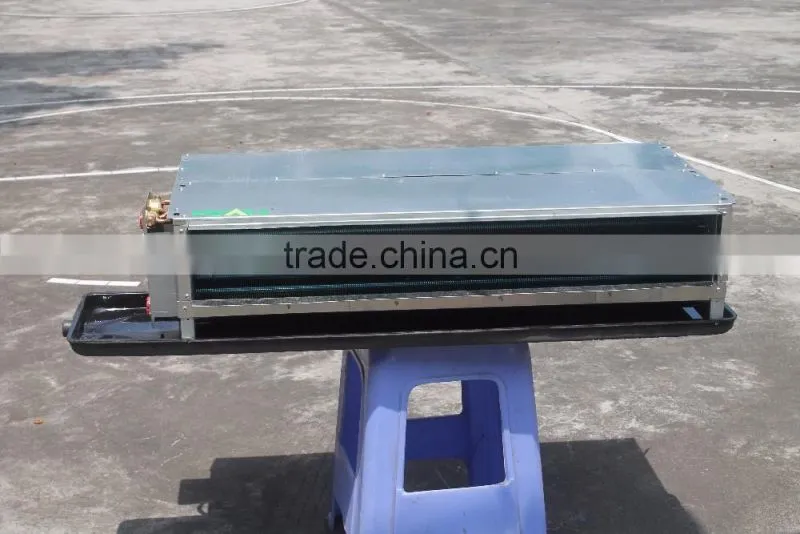

Photos of ceiling ducted fan coil unit
4 Pipe Horizontal concealed ducted Fan Coil Unit with 2 way valve4 Pipe Horizontal concealed ducted Fan Coil Unit with 2 way valve
4 Pipe Horizontal concealed ducted Fan Coil Unit with 2 way valve4 Pipe Horizontal concealed ducted Fan Coil Unit with 2 way valve
