ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine

ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-1
ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-2
ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-3
ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-4
ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-5
ZXQ-5 Full-automatic Metallographic Specimen Mounting Machine photo-6
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hengying
Model Number:
ZXQ-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Hengying
Model Number ZXQ-5

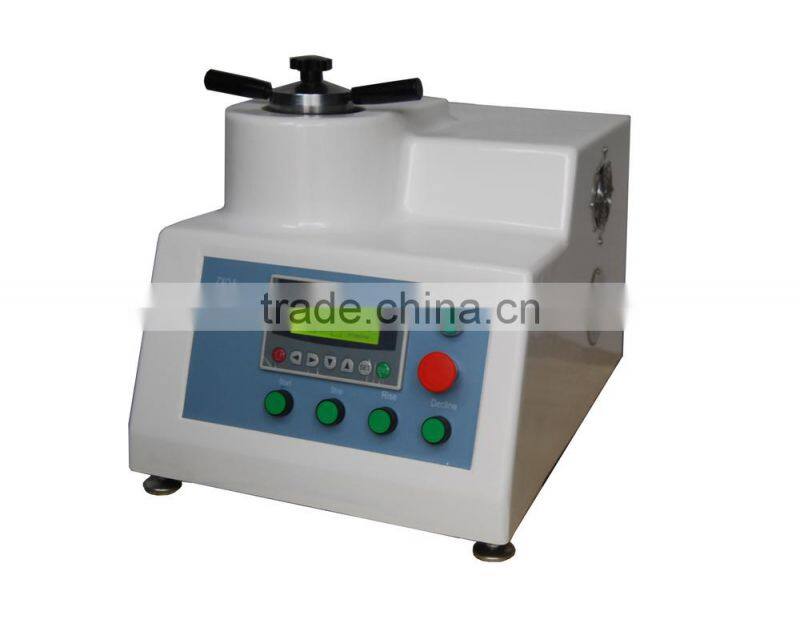

ZXQ-5 Full-automatic metallographic specimen mounting machine



This machine is a kind of full-automatic metallographic specimen mounting machine with turnover water cooling function, it is used for mounting all materials (thermosetting property and thermal plasticity), after setting the heating temperature, holding time and applied force etc, and then put the specimen and mounting materials, close the lid, press the working button, it will be finished to mount by itself, not need person on side. It could be changed the four specification moulds according to different specimen need, of course, it could be pressed two pcs specimens at the same time, preparation capacity doubled.

 ZXQ-5 Full-automatic metallographic specimen mounting machine

Technical parameters:

1.Mould specification: φ25mm  φ30mm  φ40mm   φ50mm

2.Power supply: 220V 50HZ

3.Max power consumption: 1600W

4.Intensity of pressure system range: 0~2MPa ( relative making specimen intensity of pressure range: 0~72MPa)

5.Temperature range: room temperature~180℃

6.Holding time setting range: 0~99min 99second

7.Cooling type: water cooling

8. Weight: 110kg

9. guarantee term:  12 monthes

10. Packing: wooden case

Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you. thank you very much!

Factory

ZXQ-5 Full-automatic metallographic specimen mounting machine

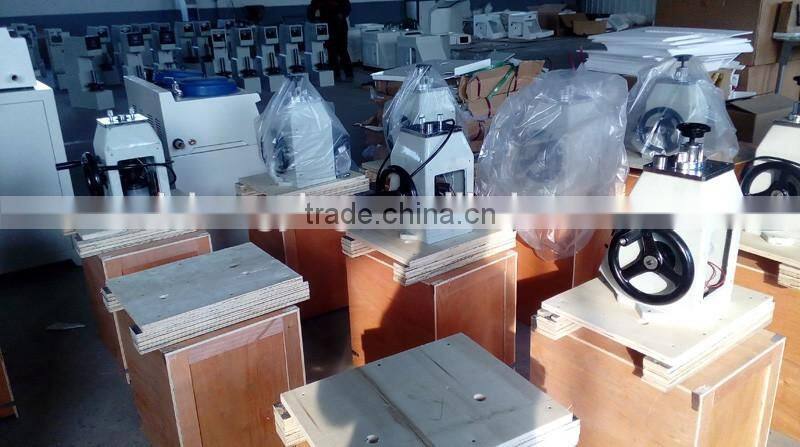

 Workshop
