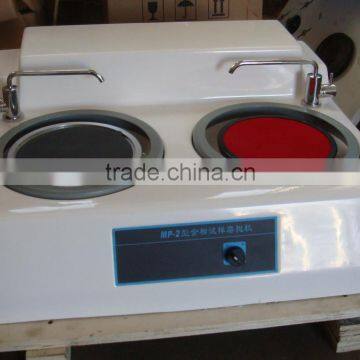

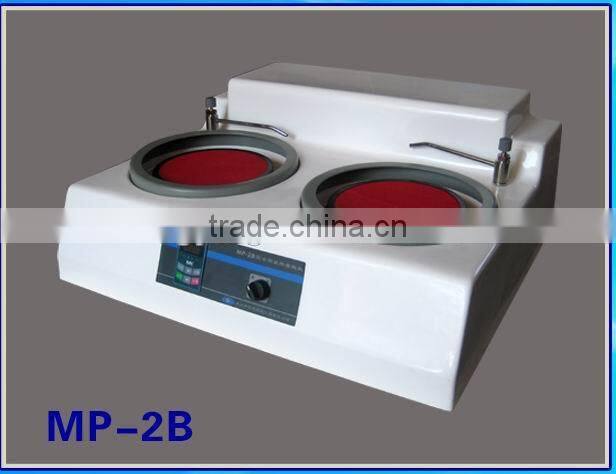

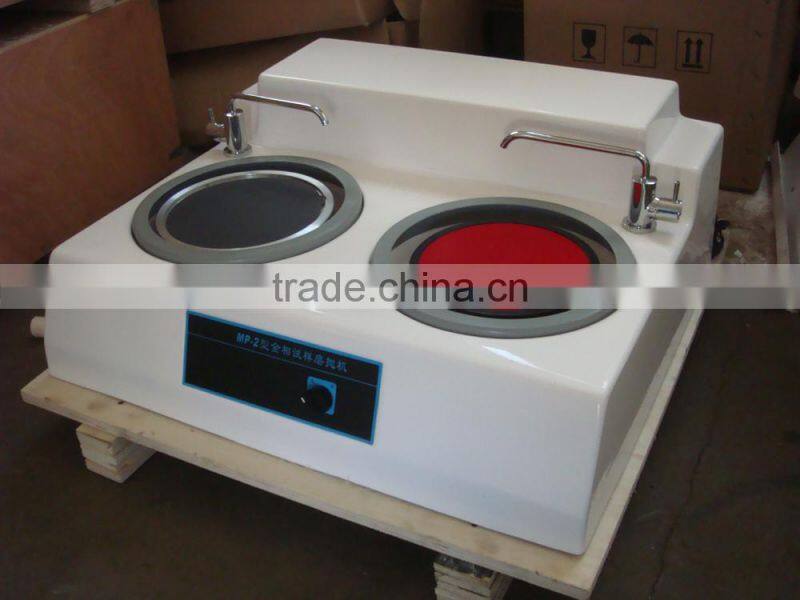

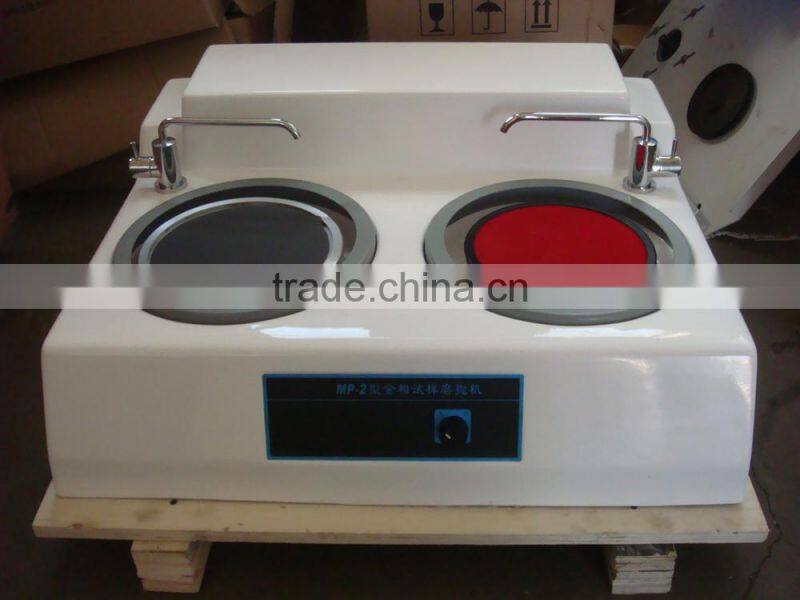

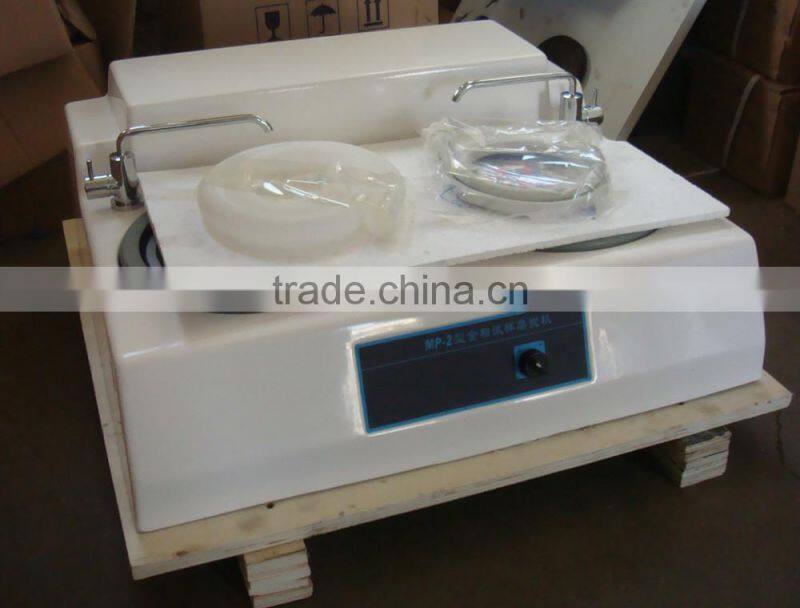

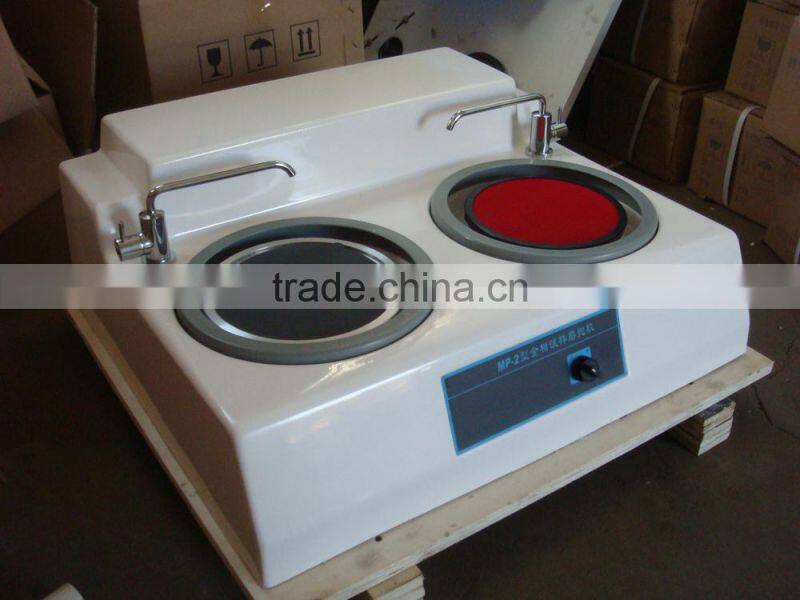

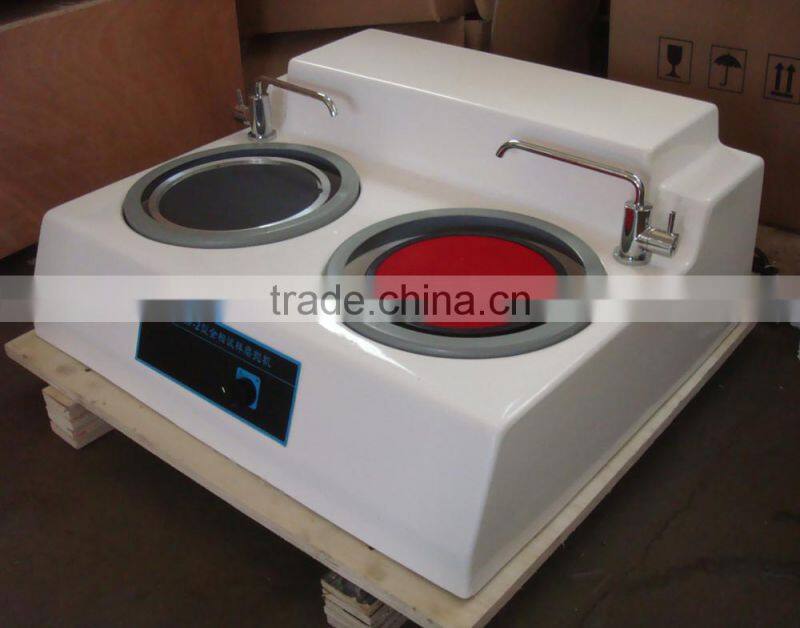

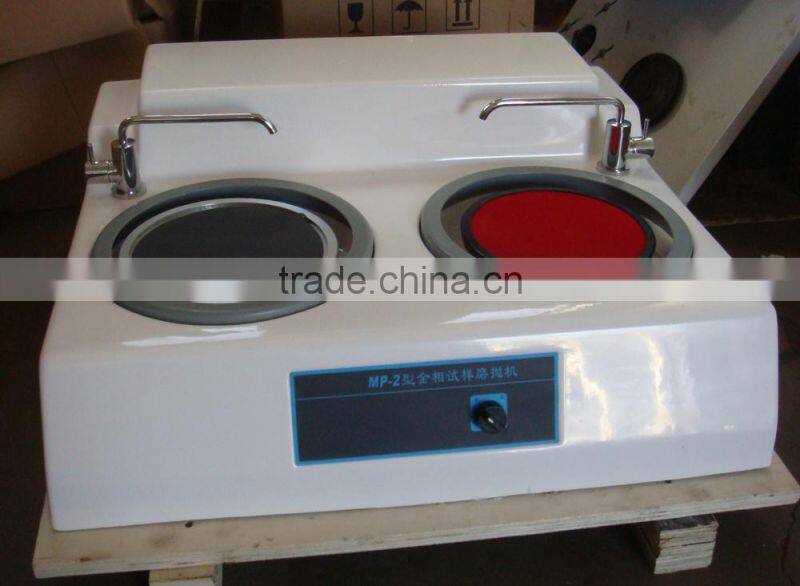

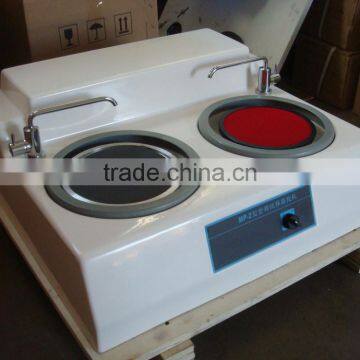

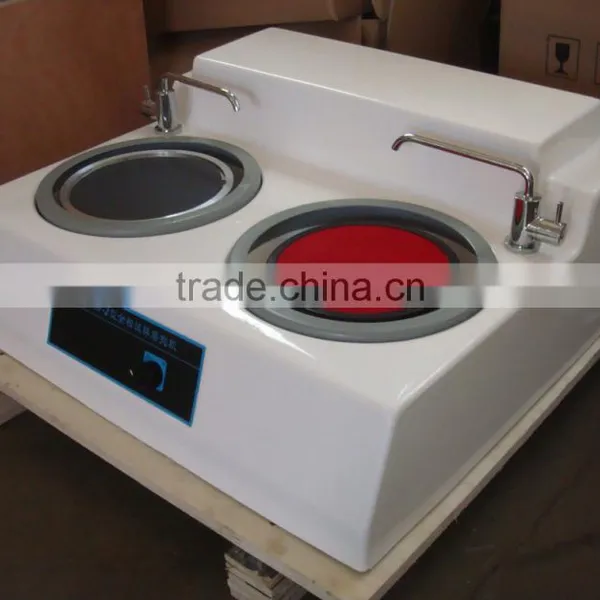

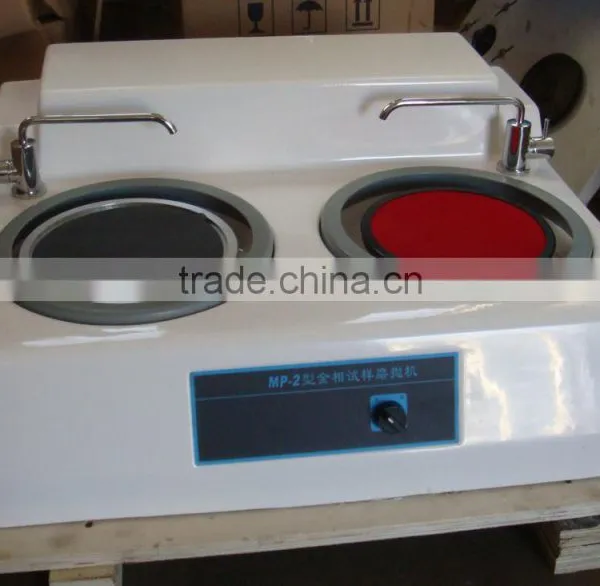

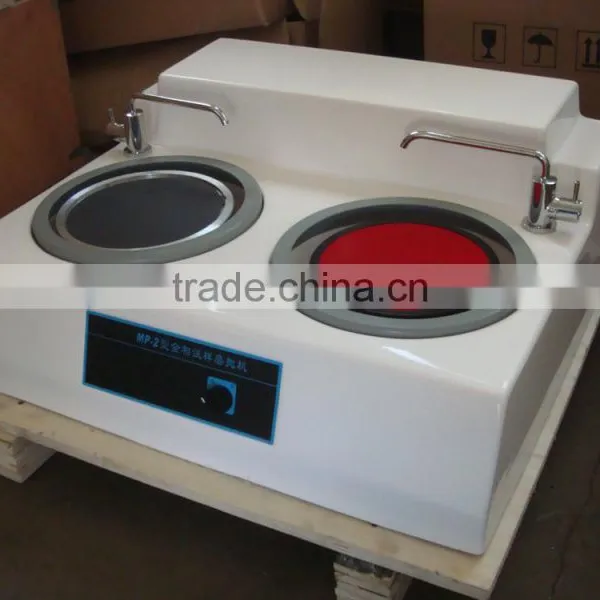

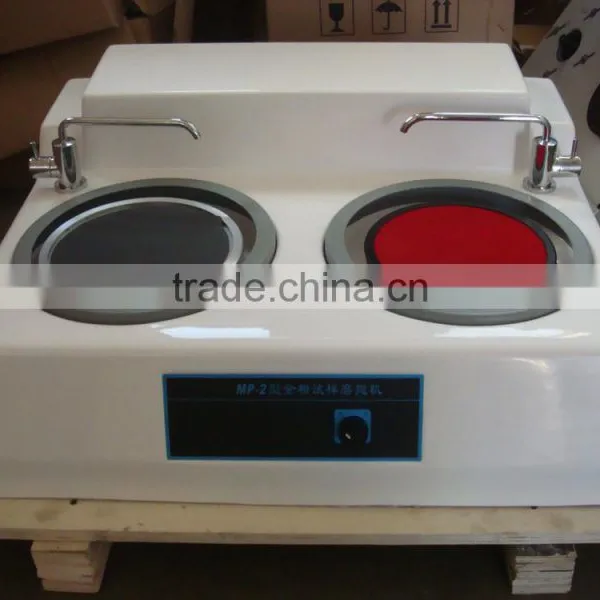

MP-2B Metallographic Specimen Grinding-polishing Machine
MP-2B Metallographic specimen grinding polishing machine is used for pre grinding and polishing of metallographic specimen, which is stepless speed type testing grinding polishing machine with double disc desktop, through the speed adjust by the transducer, it will be up to between 50-1000rpm speed, so as to be with more wide range applicability.
This machine is with cooling device, which can cool the specimen while pre-grinding so as to avoid over heating causing metallographic structure damage. The left disc is used for pre grinding, right disc is used for polishing. this machine not only can light grinding, rough grinding, semi-grinding, precision grinding but also can polish for the specimen. It can be operated by double person at the same time, it is the best choice for the factory, R&D institution and universities and collages.
Technical Indexes:
1 Working voltage: 220V 50HZ
2 Grinding disc diameter: 230mm speed 50-1000rpm
3 Polishing disc diameter: 200mm speed 50-1000rpm
4 Diameter of sand paper: 200mm
5 Motor: YSS7124 550W
6 Dimension: 700x600x278mm
7 Weight: 50kg
Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you. thank you very much!
