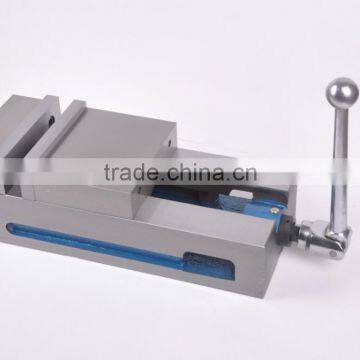

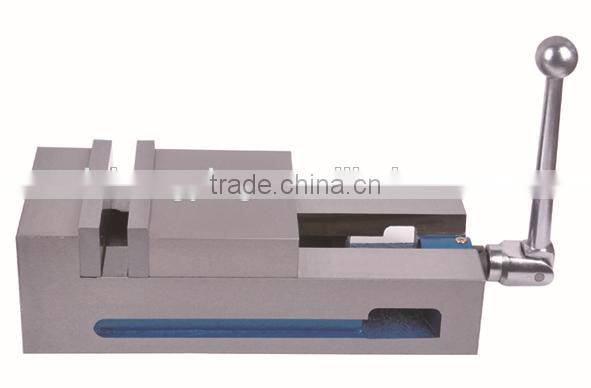

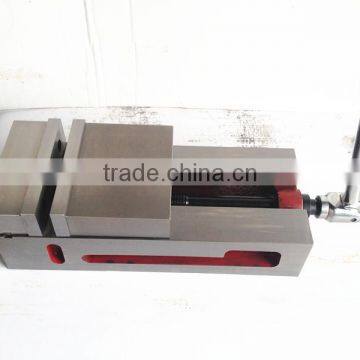

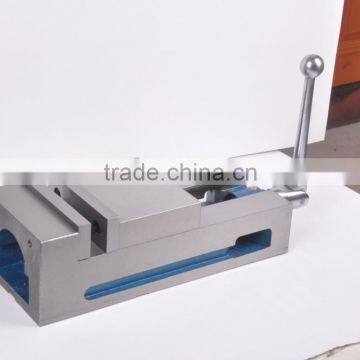

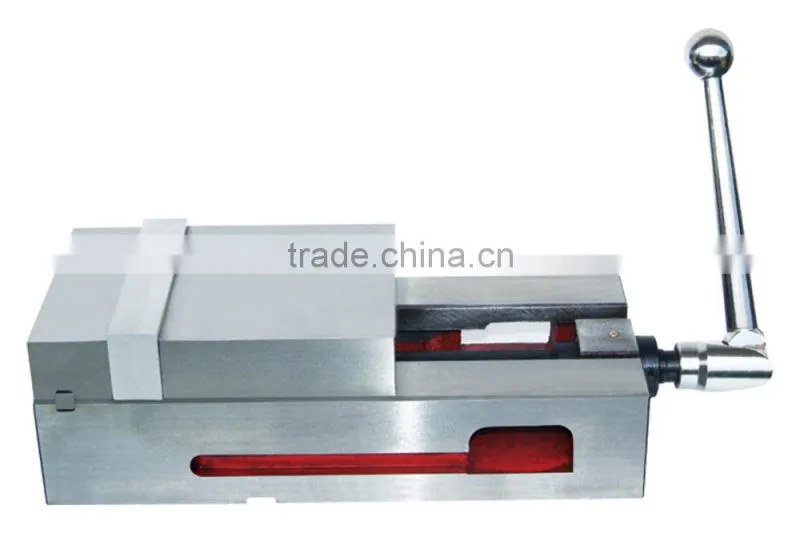

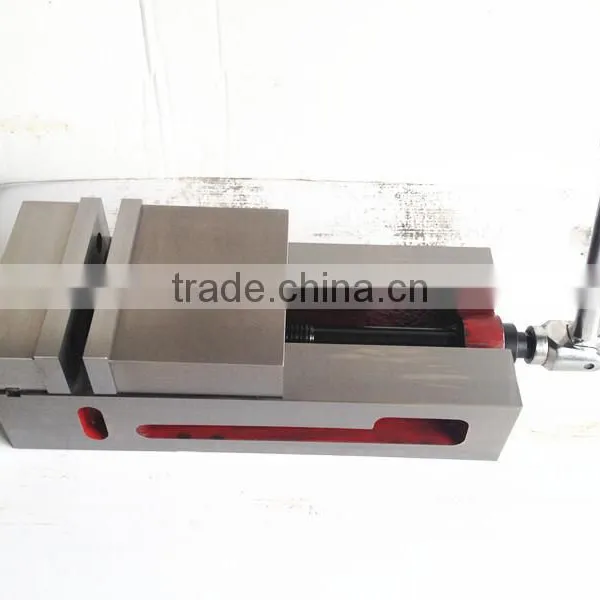

QM16N Series Precision Machine Vices
It features as below:
1 Vice body is made of ductile cast iron with high durability.
2 The locking structure of angle –fixed shape could prevent the work piece to rise during the operation.
3 The parallelism and verticality of two jaws are less than 0.025mm/100mm.
4 It can be used by single set or several sets side by side.
5 It is widely used for precision machine in the machine center .
Model | Width of jaw | Height of jaw | Total height | Max. opening | G.W/N.W | Qty | Packing size |
QM16100N | 100mm | 32mm | 86mm | 100mm | 12/11kg | 1 | 360x150x150mm |
QM16150U | 150mm | 45 | 118mm | 150mm | 26/25kg | 1 | 450x320x140mm |
QM16160N | 160mm | 45mm | 122mm | 160mm | 30/29kg | 1 | 450x200x210mm |
