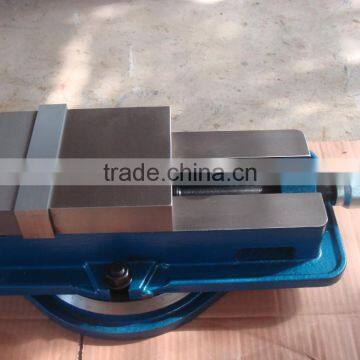

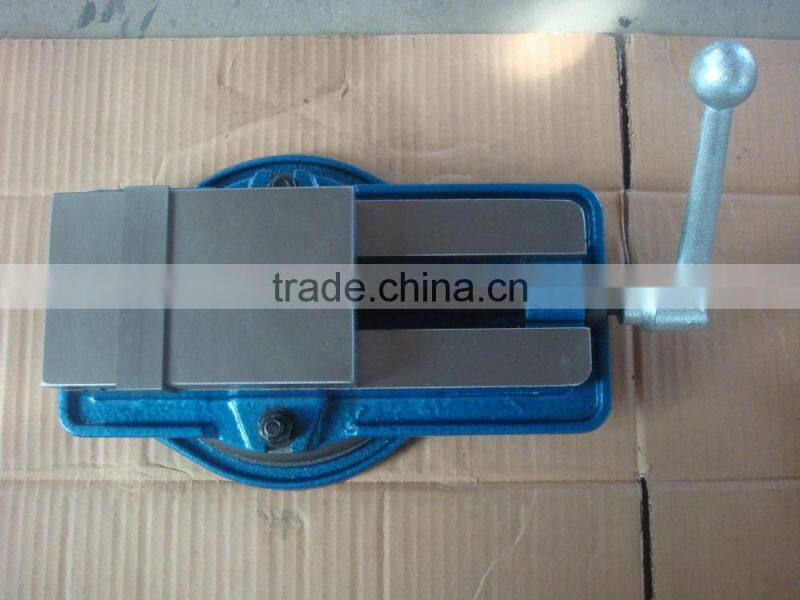

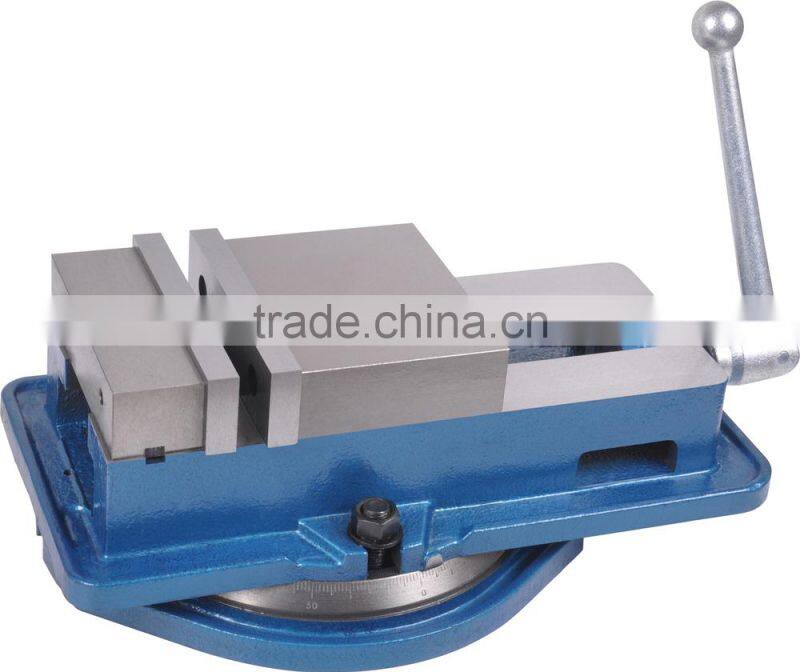

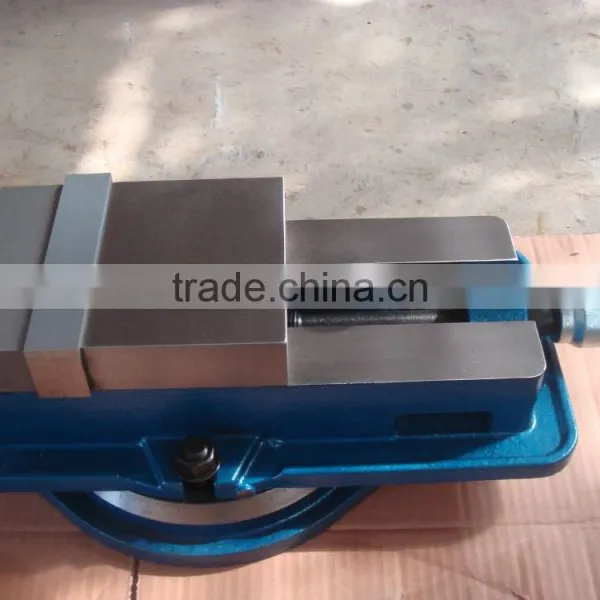

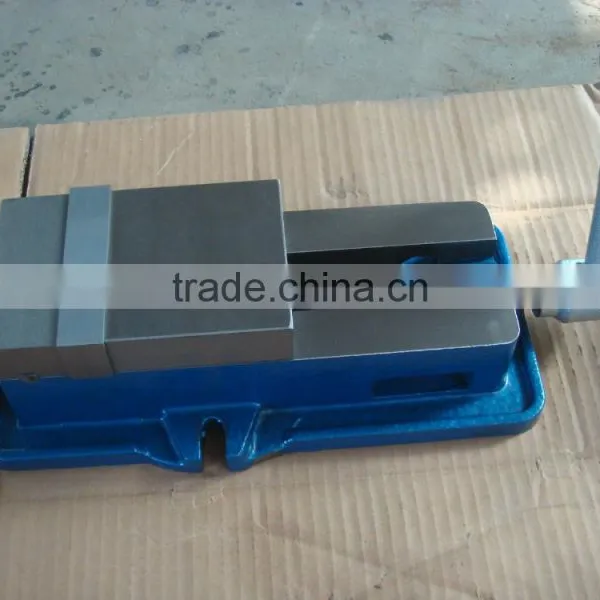

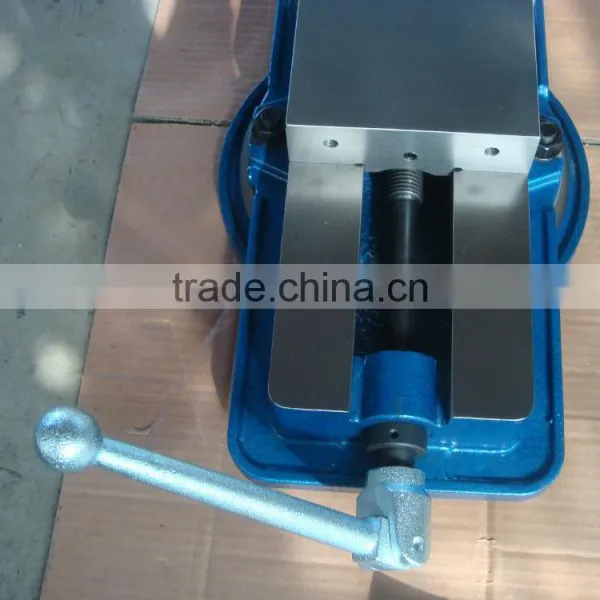

QM Series High Quality Milling Machine Vices
It features as below:
1 It is one of main attachment for milling, drilling machine, it is particularly suitable for the finishing of precision parts.
2 The accuracy of vise (parallelism and squareness) is 0.025mm/100mm.
3 When the active jaw moves horizontally, the bosu ball on it will produce a plummet force so as to keep the work piece fixed.
4 This unit can be ordered separately or with swivel base.
5 The opening of jaw would be changed according to four positions.

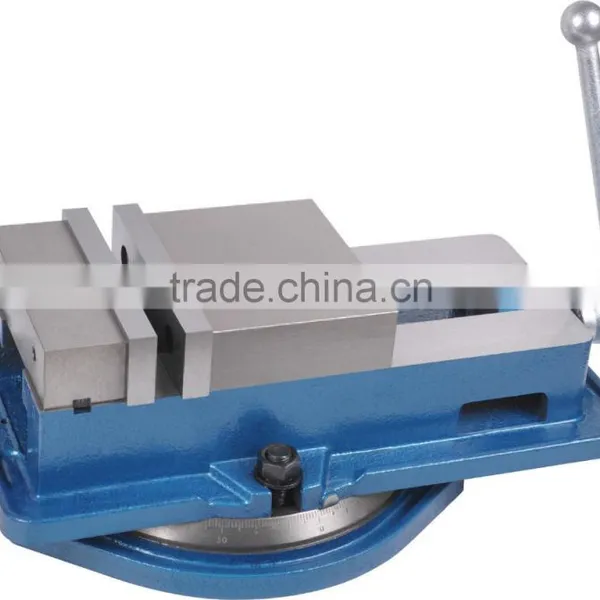

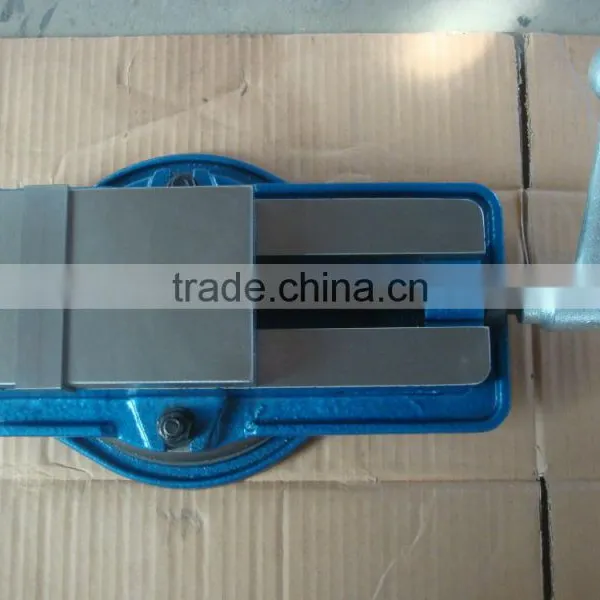

Swivel type parameters
Model | Width of jaw | Height of jaw | Total height | Max. opening | G.W/N.W | Qty | Packing size |
QM16100 | 100mm | 32mm | 124mm | 100mm | 17/16kg | 1 | 360x250x150mm |
QM161125 | 125mm | 40mm | 132mm | 125mm | 22/21kg | 1 | 410x270x170mm |
QM16160 | 160mm | 45mm | 157mm | 160mm | 35/34kg | 1 | 450x320x180mm |
QM16160L | 160mm | 45mm | 157mm | 200mm | 37/36kg | 1 | 480x320x180mm |
QM16200 | 160mm | 50mm | 198mm | 200mm | 51/50kg | 1 | 560x360x200mm |

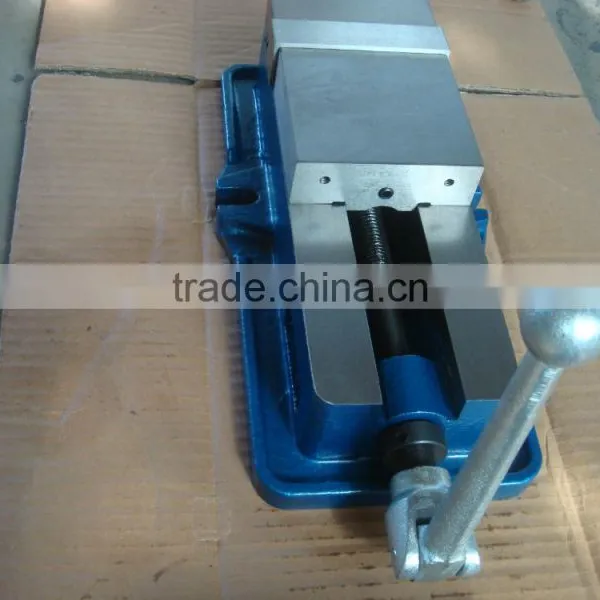

Fixed type parameters
Model | Width of jaw | Height of jaw | Total height | Max. opening | G.W/N.W | Qty | Packing size |
QM16100 | 100mm | 32mm | 95mm | 100mm | 14/13kg | 1 | 360x250x130mm |
QM161125 | 125mm | 40mm | 102mm | 125mm | 18/17kg | 1 | 410x270x130mm |
QM16160 | 160mm | 45mm | 127mm | 160mm | 26/25kg | 1 | 450x320x140mm |
QM16160L | 160mm | 45mm | 127mm | 200mm | 28/27kg | 1 | 480x320x140mm |
QM16200 | 200mm | 50mm | 158mm | 220mm | 41/40kg | 1 | 560x360x160mm |
QM16250 | 265mm | 70mm | 175mm | 290mm | 96/88kg | 1 | 750x400x210mm |
Please feel free to contact us if you are interested in our prodcuts, we will offer the top quality and best service for you. thank you very much!

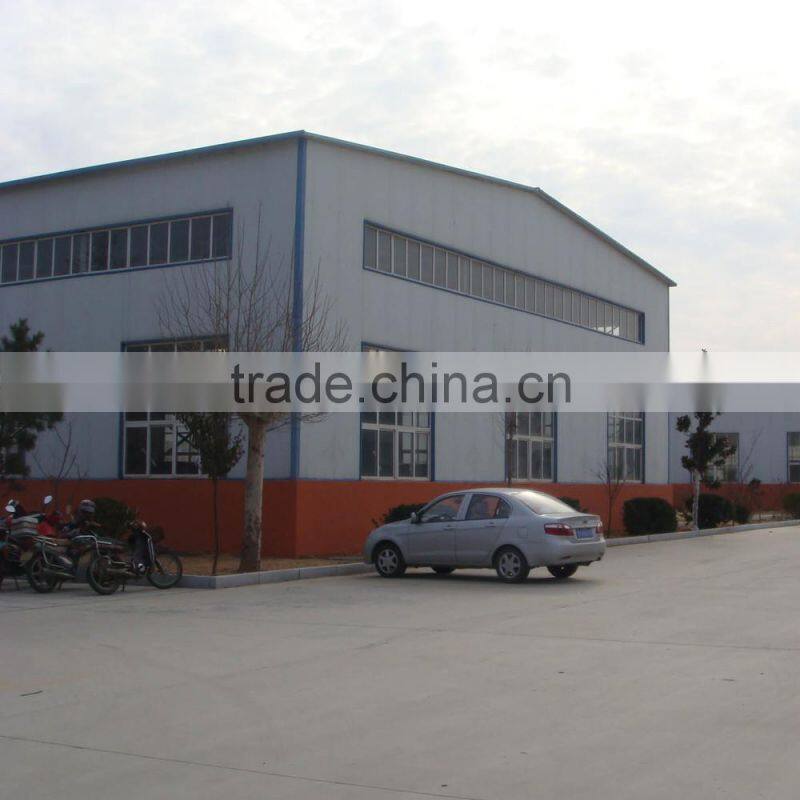

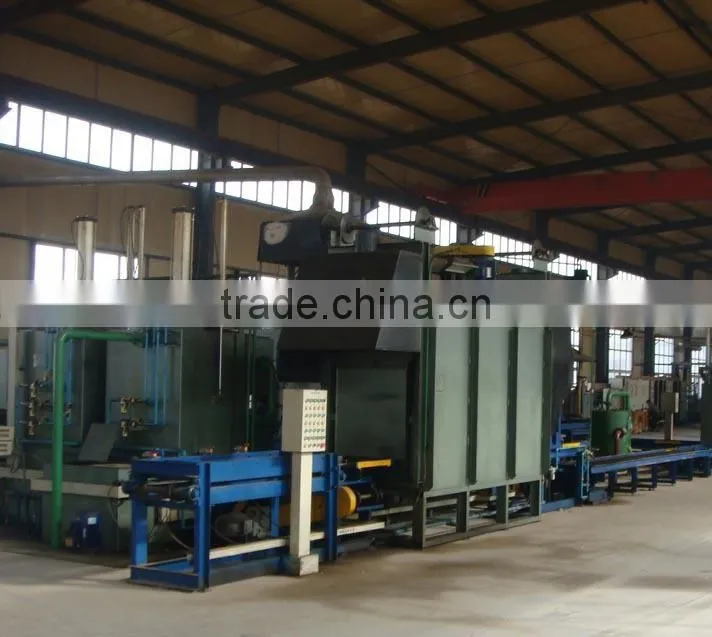

Workshops
