YLF Series Round Loading Unloading Machine 011
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Hengying | Model Number | YLF-1 | |
| Processing Types | barly, grain | Certification | ISO9001 | |
| Warranty | 12month | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

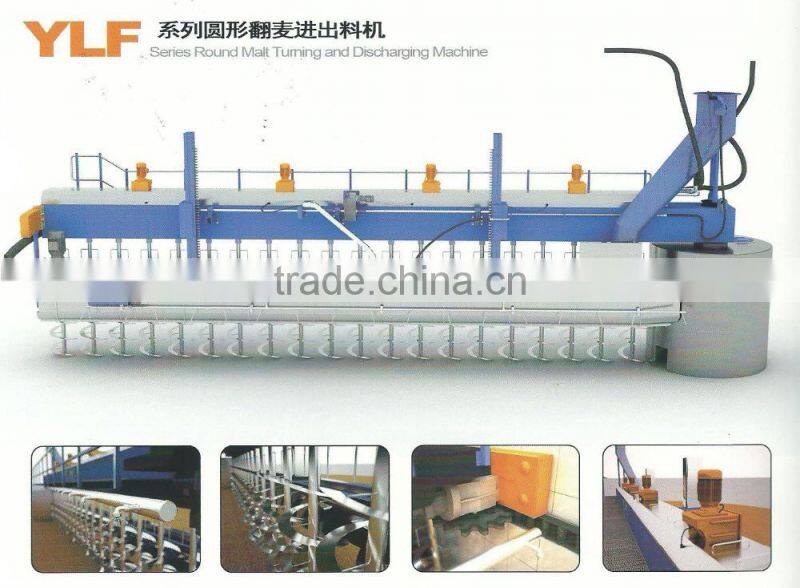

YLF Series round malt loading unloading machine
YLF Series round malt turning load unload machine

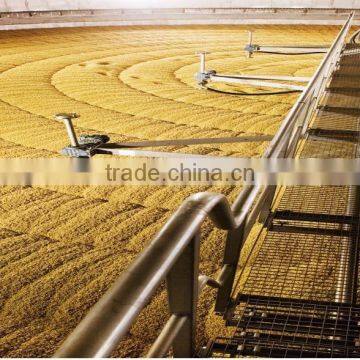

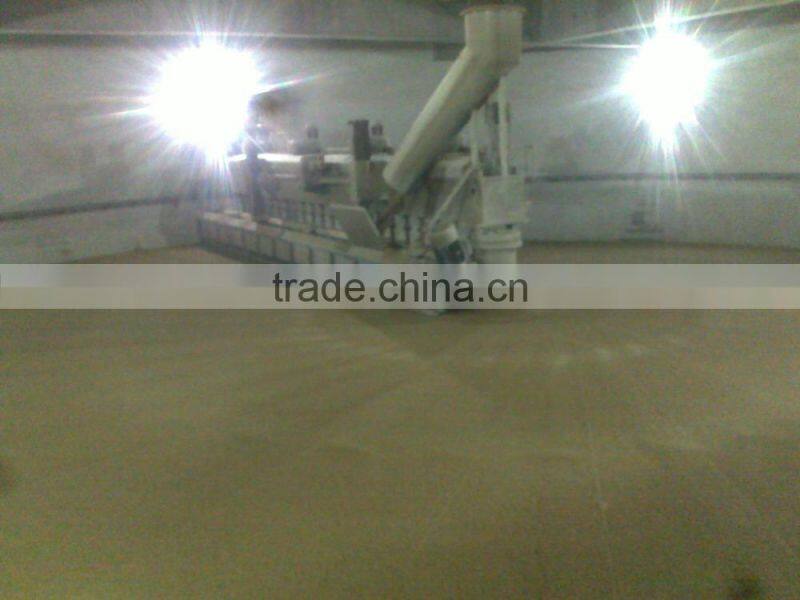

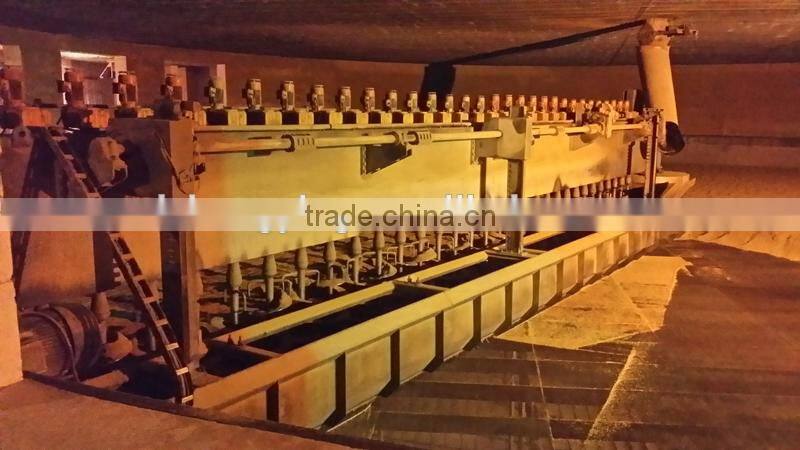

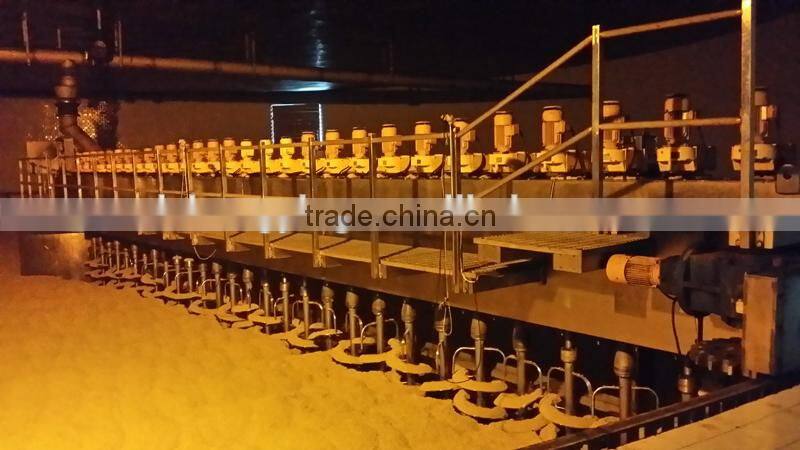

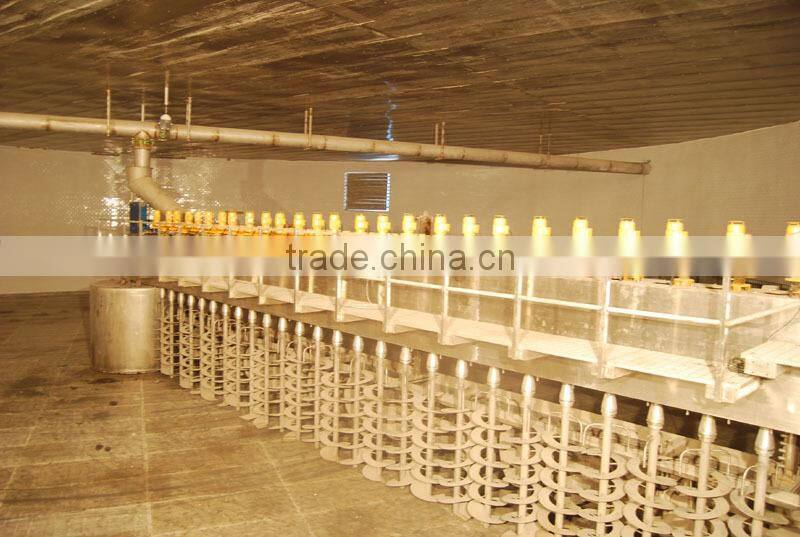

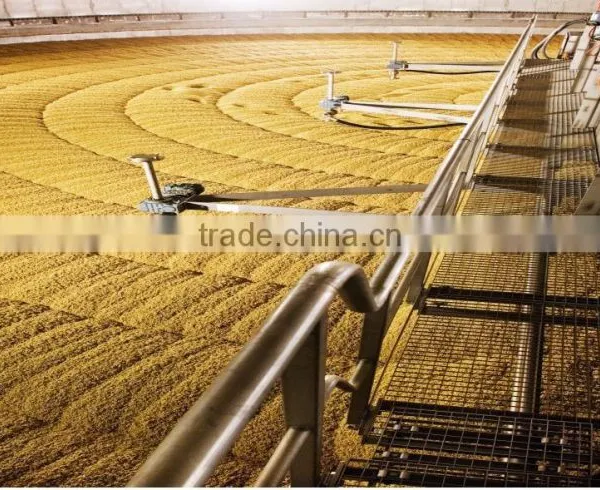

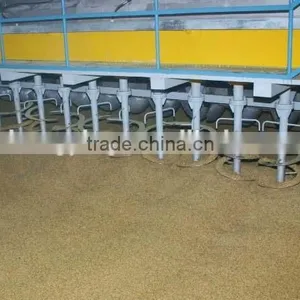

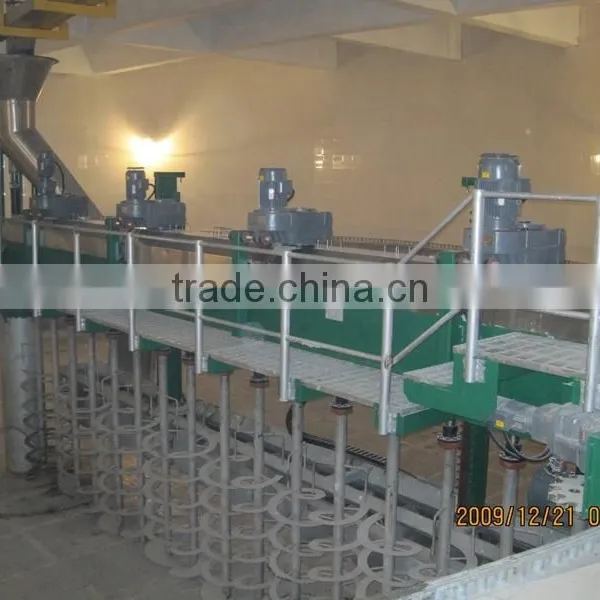

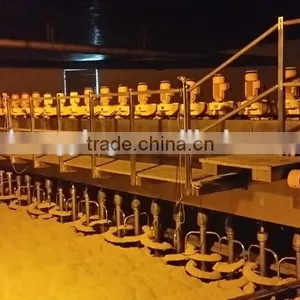

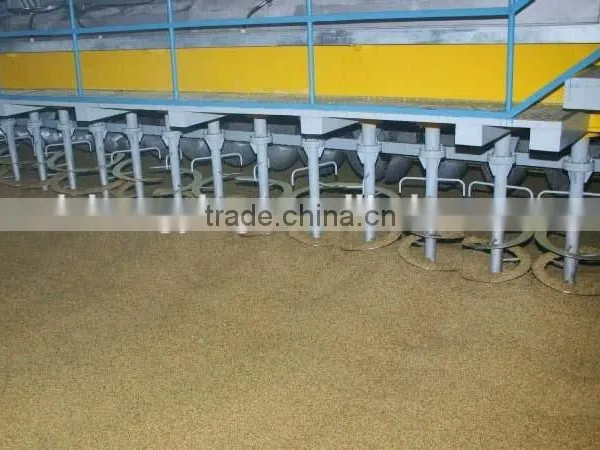

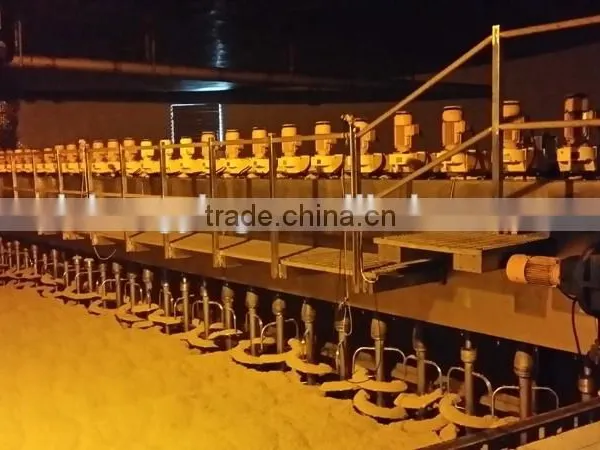

YLF Series round malt turning load unload machine is the key matched equipment ,used in round germination box and drying box, which would load, unload and turn from up and down the malts so as to get the nice ventilation, even humiture, meets the technical requirement during the malt production. It features: advanced design, reasonable structure, high degree automation, it is the best equipment of improving malt quality, shortening the load unload time in the round germination box.
Technology parameters:
Item | YFZ13.1 | YFZ10.88 | YFZ18.6 | YFZ23.8 | YFZ35.58 | YFZ40.38 |
Box diameter m | 13.1 | 10.88 | 18.6 | 23.8 | 35.58 | 40.38 |
Vertical screw diameter mm | 500 | 500 | 500 | 500 | 500 | 500 |
Vertical screw thread pitch mm | 250 | 250 | 250 | 250 | 250 | 250 |
Vertical screw turning speed r/min | 4.7-16 | 6.5-16.1 | 4-11.4 | 3.8-12 | 3.0-16 | 3.9-16 |
Horizental screw diameter mm | 500 | 500 | 700 | 700 | 1000 | 1000 |
Horizental screw thread pitch mm | 400 | 400 | 500 | 500 | 800 | 800 |
Horizental screw turning speed r/min | 67 | 89 | 108 | 108 | 53 | 53 |
Power | 27.62 | 28.42 | 35.12 | 40.6 | 50.5 | 67.52 |
Technology index:
Item | YLF13.1 | YLF10.88 | YLF18.6 | YLF23.8 | YLF35.58 | YLF40.38 |
Turning diameter m | 13.1 | 10.88 | 18.6 | 23.8 | 35.58 | 40.38 |
Mixer diameter mm | 500 | 500 | 500 | 500 | 500 | 500 |
Mixer screw pitch mm | 250 | 250 | 250 | 250 | 250 | 250 |
Mixer speed r/min | 4.7-16 | 6.5-16.1 | 4-11.4 | 3.8-12 | 3.9-16 | 3.9-16 |
Feeding flattening screw diameter mm | 500 | 500 | 700 | 700 | 1000 | 1000 |
Feeding flattening screw pitch diameter mm | 400 | 400 | 500 | 500 | 800 | 800 |
Feeding flattening screw speed r/min | 67 | 89 | 108 | 108 | 53 | 53 |
Car moving speed m/min | 1.8 frequency conversion | 1.8 frequency conversion | 1.8 frequency conversion | 1.8 frequency conversion | 1.8 frequency conversion | 1.8 frequency conversion |
Equipment power kw | 27.62 | 28.42 | 35.12 | 40.6 | 50.5 | 67.52 |
Factory
Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you! thank you very much!
