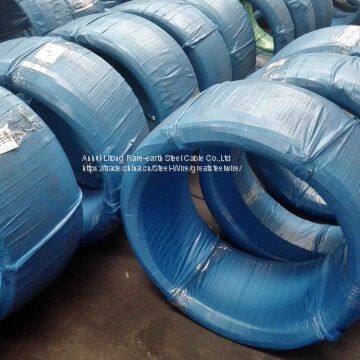

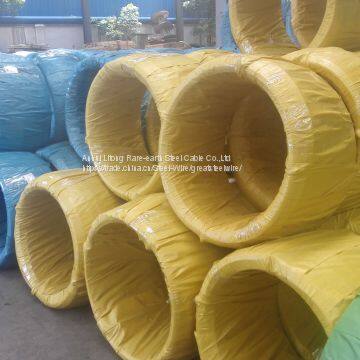

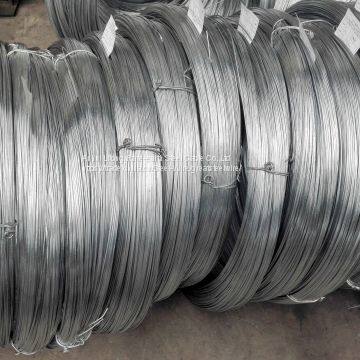

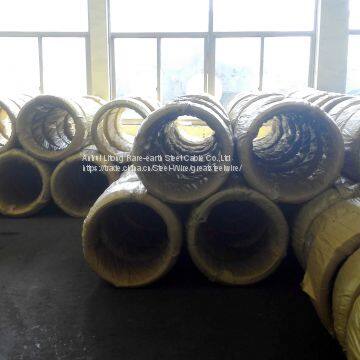

Hot Dipped Galvanized Steel Core Wire 1.57mm-4.8mm For Fence ACSR Armouring Steel Cable
US$ 1 - 900
MOQ: 10 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
Litong Global
Place of Origin:
China
Model Number:
001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Grade700-1300 Galvanized Steel Wire Strand for Stay WireUS$ 1 - 1000MOQ: 10 Metric Tons -
High Carbon Steel Wire 12.7mm & 15.24mm , 1860 MPA Tensile StrengthUS$ 1 - 700MOQ: 10 Metric Tons
-
Low Relaxation PC Steel Wire Drawing Wire Type , Water Resistant Steel Strand CableUS$ 1 - 700MOQ: 10 Metric Tons
-
Hot Dipped Galvanized Steel Wire For Aluminium Conductor Steel Reinforced CableUS$ 1 - 1000MOQ: 10 Metric Tons
-
ASTM B415-92 Acsr Core Wire , Corrosion Resistance Aluminum Electrical WireUS$ 1 - 2000MOQ: 1 Kilometer
Brand Name
Litong Global
Place of Origin
China
Model Number
001
Type
Galvanized
Application
Rope
Standard
AISI, ASTM, BS, DIN, GB, JIS
Alloy Or Not
Non-alloy
Wire Gauge
1.0mm-4.8mm
Special Use
Cold Heading Steel
Steel Grade
Middle and High Carbon Wire Rod
Galvanized Steel Core Wire For ACSR Conductor from size 1.57mm-4.8mm
Product Description
Galvanized Steel Wire,Zinc coated,Guy Wire, Stay Wire,GSW
(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.
(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.
| Galvanized Steel Wire Strand ASTM A-475 | ||||||
| Number of Wire(Dia.) | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight | |
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | - | - | - | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
3. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
