Advantage :
1) The min. identify can be up to 0.04 mm2 , makes color sorting reach a new high level, meets demand of accurate sorting.
2) Advanced and Reasonable optics design guarantees accurate sorting.
3) Double sorting process guarantees final ideal sorting result.
4) Reasonable channel assigns suitable for sorting grain with various size.
5) Advanced production equipments from Germany and strict management under ISO9001:2008 guarantees machines' precision.
6) Great Data transferring Bandwidth guarantees the data transferred rapidly, makes machine perform consistently and stably.
7) Latest Patented technology of image processing algorithm upgrades the accuracy, and accelerates the operation speed.
8) Several sorting modes meet various requirements.
9) Advanced system design with China Patent guarantees machine run stably for a long time.
10) Concise touch panel from Japan helps customer operate easily.

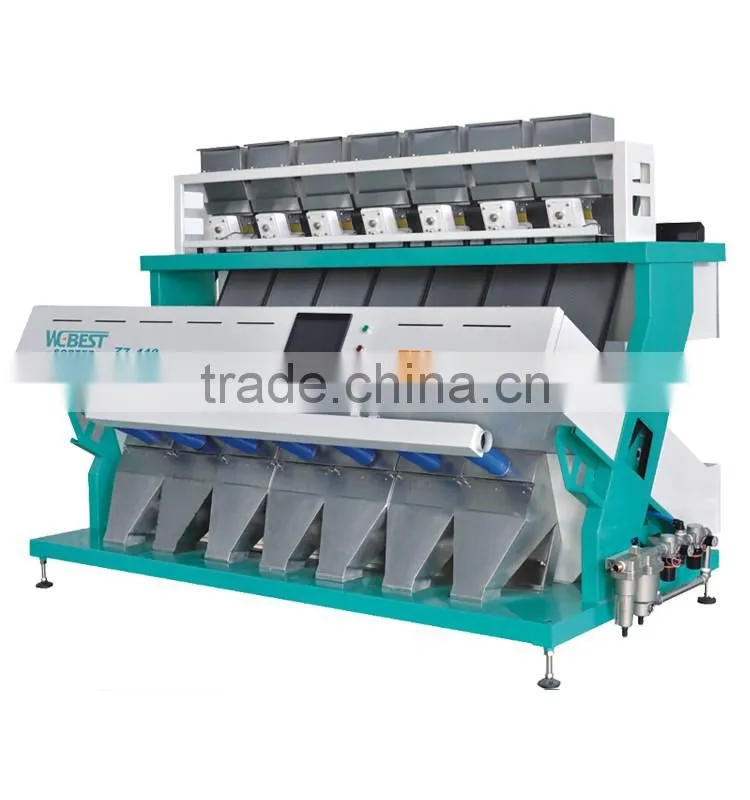

CCD color sorter technical Parameter
| Model | Z2-128 | Z3-192 | Z4-256 | Z5-320 |
| Type | 6SXZ-128 | 6SXZ-192 | 6SXZ-256 | 6SXZ-320 |
| Output(t/h) | 1.5-4 | 3-6 | 5-10 | 6-10 |
| Sorting Accuarcy(%) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Carryover Rate (Bad:Good) | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Weight(kg) | 600 | 700 | 800 | 900 |
| Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
| Power(kw) | 1.5 | 2 | 2.5 | 3 |
| DimensionLxWxH(mmxmmxmm) | 1370x1650x2010 | 1684x1650x2010 | 1998x1650x2010 | 2312x1650x2010 |
| Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
| Model | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
| Type | 6SXZ-384 | 6SXZ-448 | 6SXZ-640 | 6SXZ-768 |
| Output(t/h) | 7-12 | 8-15 | 13-24 | 18-30 |
| Sorting Accuarcy(%) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Carryover Rate (Bad:Good) | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 |
| Weight(kg) | 1000 | 1100 | 1400 | 1600 |
| Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
| Power(kw) | 4 | 4.5 | 6 | 8 |
| DimensionLxWxH(mmxmmxmm) | 2626x1650x2010 | 2930x1650x2010 | 4100x1650x2010 | 2670x3000x2010 |
| Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
1.The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2.If products update, no further notice. Please refer to the real machine.
Wolfberry color sorting example
More related color sorter
After-sale service
1.We show our presence in China and around the globe.
2.We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
3.We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
4.We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: One year free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service,
Establish user file for follow-up service.
Packaging
1. Plywood case for each color sorter.
2. we will arrange the shipment as soon as possible, Gernearally speaking ,we will arrange the shipment in 15 days after we receive the deposit.
