Accurate Commercial Optical Belt Color Sorter Machine grain color sorter
1. Image processing system and algorithm
DSP+FPGA international leading processing technology, multi-modes complex algorithm combining color and space, providing “color sorting + shape selecting” function for different materials, free setting of multiple modes, arbitrary selection of thousands of materials.
2. Camera image acquisition system
Imported high precision camera lens, guarantee the accuracy of the image is clear.
Imported high-precision 4096-pixel high-speed linear CCD for high resolution identification and high speed color sorting.
3. Unique self-ejecting nozzle and valve drive mode
Applying specialized high speed air valve with high action response frequency, low power consumption and longer service life;
Reducing air consumption with faster response speed, more accurate striking, small carryover and large output.
4. Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.

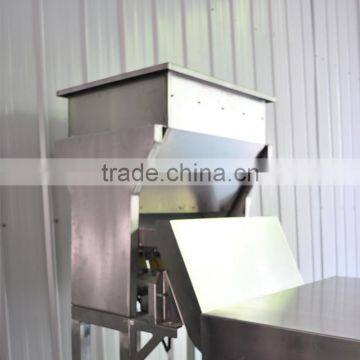

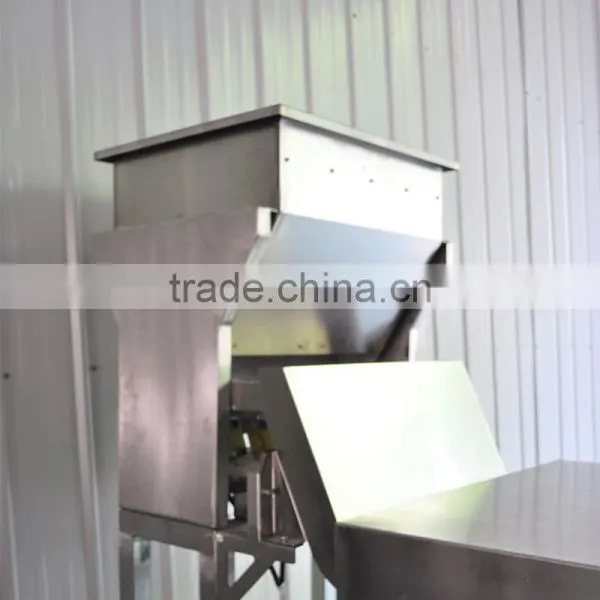

5. Belt Conveyor Feeding
Belt conveyor feeding is adopted, materials feeding is much more stable which can improve rejection rate and sorting accuracy.
At the same time broken rate decline greatly
6. Light source system
Leading LED optical design system, a variety of light sources can be selected to suit the different materials.
Solve the problems like high temperature, large loss, and short life etc, caused by long-term use of light source, to ensure that LED light source is durable under constant temperature.
CCD color sorter technical Parameter
| Model | 6SXL-600 | 6SXL-1200 |
| Power (kw) | 2.2 | 3.0 |
| Weight (kg) | 600 | 800 |
| Power Supply (V/Hz) | 220/50(110/60) | 220/50(110/60) |
| DimensionLWH(mm) | 3510*1220*2115 | 3510*1800*2115 |
| Material | Plastic | Peanut | Quartz Sand | Cashews |
| Product Output (t/h) | 0.3-2.5 | 0.5-2.5 | 0.8-3.0 | 0.5-2.5 |
| Sorting Accuarcy (%) | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 |
| Resolution (mm2) | 0.04 | 0.04 | 0.04 | 0.04 |
| Optimized Carryover (Bad:Good) | 10:1 | 8:1 | 8:1 | 8:1 |
1, The above data is based on the 3% contamination, and real output depends on the material and its contamination.
Advantage :
1) The min. identify can be up to 0.04 mm2 , makes color sorting reach a new high level, meets demand of accurate sorting.
2) Advanced and Reasonable optics design guarantees accurate sorting.
3) Double sorting process guarantees final ideal sorting result.
4) Reasonable channel assigns suitable for sorting grain with various size.
5) Advanced production equipments from Germany and strict management under ISO9001:2008 guarantees machines' precision.
6) Great Data transferring Bandwidth guarantees the data transferred rapidly, makes machine perform consistently and stably.
7) Latest Patented technology of image processing algorithm upgrades the accuracy, and accelerates the operation speed.
8) Several sorting modes meet various requirements.
9) Advanced system design with China Patent guarantees machine run stably for a long time.
10) Concise touch panel from Japan helps customer operate easily.
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
1,We show our presence in China and around the globe!
2, We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
3, We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
4, We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: One year free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service,
Establish user file for follow-up service.
1. Plywood case for each color sorter.
2. we will arrange the shipment as soon as possible, Gernearally speaking ,we will arrange the shipment in three weeks after we receive the deposit.
Please provide the following needed information when sending the inquiries:
1. What kinds of material do you want to sort?
2. How much is your throughput?
3. Which country will the machine be used in?
